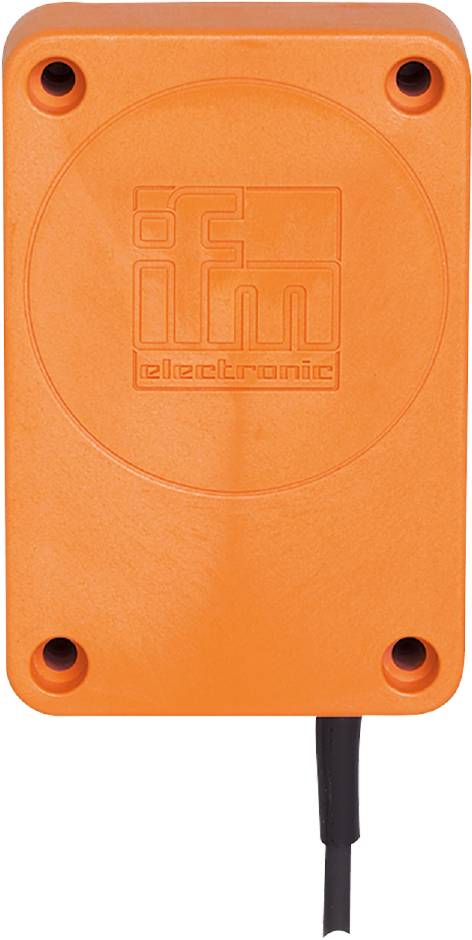

ifm Electronic Sensor Inductive ID0014 ID0014 non-shielded Two-wire (L x W x H) 120 x 80 x 30 mm
Product type
Sensor
Max. operating voltage
250 V DC
250 V AC
Contact type
1 maker
Switching distance (max.)
50 mm
Outputs
Two-wire
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
ID0014
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
250 V DC
250 V AC
- Operating voltage
20, 20 - 250, 250 V DC, V AC
- Contact type
1 maker
- Switching distance (max.)
50 mm
- Outputs
Two-wire
- Model
Inductive
- Installation type
non-shielded
- Connector
Cable, open end
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
120 mm
- Width
80 mm
- Height
30 mm
- Dim
(L x W x H) 120 x 80 x 30 mm
- Content
1 pc(s)
- Switching frequency
35 Hz
- UKCA
yes
