Name: ifm Electronic Sensor Inductive ID5046 ID5046 non-shielded PNP
Brand: ifm Electronic
SKU: 3320485

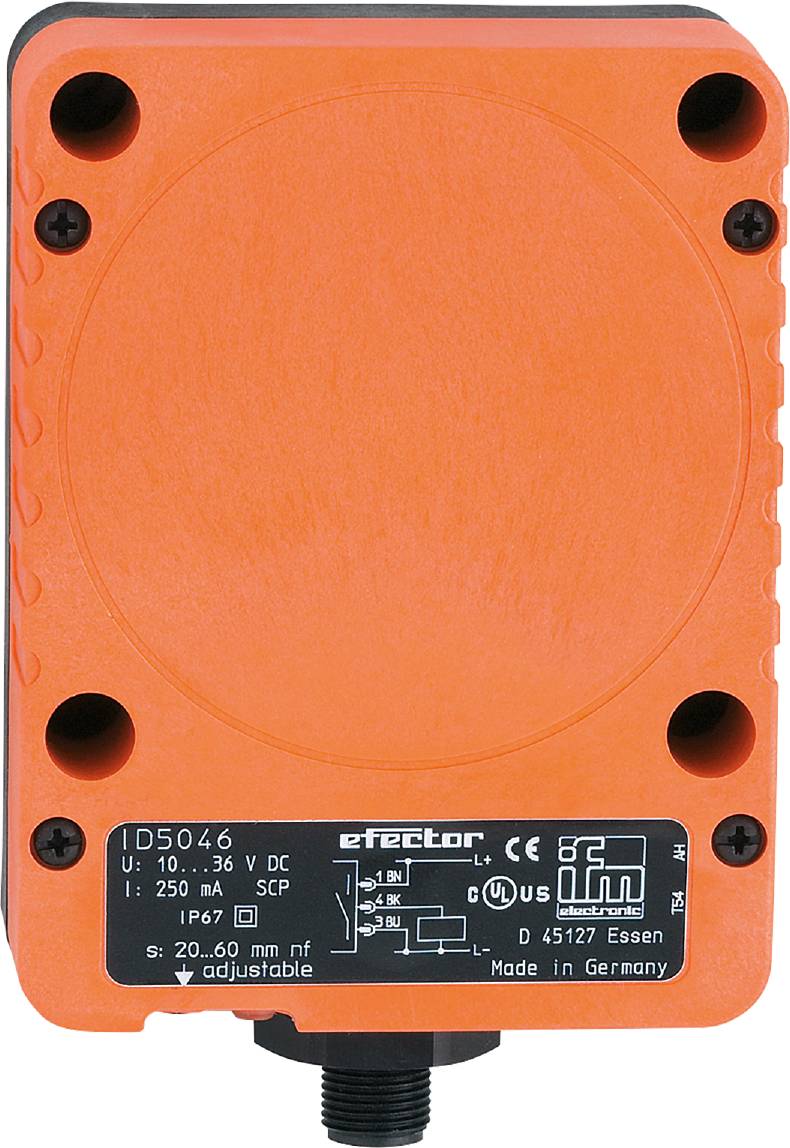

Orange electronic device by ifm with technical specifications: IP 67, 10-36 V DC, 250 mA. Manufactured in Germany.

Image similar

Product type

Sensor

Max. operating voltage

36 V DC

Contact type

1 breaker

1 maker

Switching distance (max.)

60 mm

Outputs

PNP

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm ID5046 Inductive Sensor

Very long switching distance
Large active sensor surface
Simply setting the switching distance using potentiometers
Output function NO / NC programmable
Robust housing for use in rough industrial environment

Technical specifications

Dimensions [mm] 105 x 80 x 40
Display: Switch status 1 x LED, yellow
Working distance [mm]: 0...48.6
Ambient temperature-1 [°C]: -25...80
Short-circuit protection version: Synchronised
Output function: NO / NC; (selectable)
Operating voltage [V]: 10... 36 DC
Continuous current carrying capacity of the switching output DC [mA]: 250
Built: Not flush-mounted
Electrical version: PNP
Housing: Square
Weight [g]: 440,500
Hysteresis: 1...15
Correction factor (Al): 0.3
Correction factor (Cu): 0.2
Correction factor (Ms): 0.4
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Short-circuit protection: Yes
max. Voltage drop switch output DC [V]: 2.5
MTTF: 1277
Test mark (special cases): CCC
Real switching distance Sr [mm]: 60 ± 10 %
Switching distance [mm]: 20...60
Switching distance adjustable: Yes
Switching frequency DC [Hz]: 100
Switch point drift: -10...10
IP 67 protection
Protection class: II
Plug connection: Plug - pin layout: 0001 - plug connection: 1 x M12; coding: A.
Current consumption: < 15
Overload-proof: Yes
Reverse polarity protection: Yes
Factory setting Switching distance [mm]: 60

Product type: Sensor

Type: ID5046

Min. operating voltage: 10 V DC

Max. operating voltage: 36 V DC

Operating voltage: 10 - 36 V DC

Contact type: 1 breaker
1 maker

Switching distance (max.): 60 mm

Outputs: PNP

Model: Inductive

Installation type: non-shielded

Connector: M12

Features: LED indicator

Min. temperature: -25 °C

Max. temperature: 80 °C

Content: 1 pc(s)

Switching frequency: 100 Hz

UKCA: yes
