Name: ifm Electronic Sensor Inductive IE5072 IE5072 M8 shielded PNP
Brand: ifm Electronic
SKU: 3318145

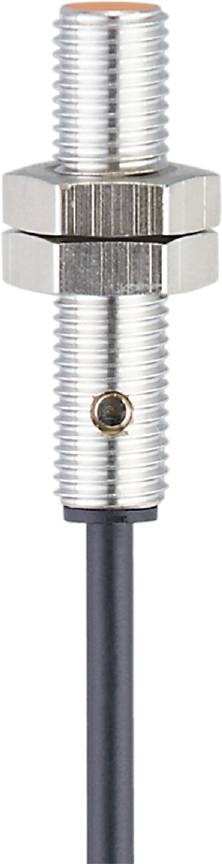

Close-up of a cylindrical metal component with a central hole. Possibly a mechanical or electrical part.

Image similar

Product type

Sensor

Max. operating voltage

36 V DC

Contact type

1 maker

Switching distance (max.)

1 mm

Outputs

PNP

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm IE5072 Inductive Sensor

Special short design
For use in narrow installation spaces
Space-saving connection technology
Robust metal casing for use in harsh industrial environments
Very high switching frequency

Technical specifications

Dimensions [mm]: M8 x 1 / L = 35
Display: Switch status 1 x LED, yellow
Working distance [mm]: 0...0.8
Ambient temperature-1 [°C]: -25...80
Tightening torque [Nm]: A = 5 mm: 1 ; B: 2
Output function: Closer
Operating voltage [V]: 10... 36 DC
Continuous current carrying capacity of the switching output DC [mA]: 200
Flush mounting type: Flush mounting
Electrical version: PNP
Housing: Threaded design
Weight [g]: 51,400
Thread name M8 x 1
Hysteresis: 1...15
Cable: 2 m, PVC; 3 x 0.14 mm²
Correction factor (Al): 0.3
Correction factor (Cu): 0.2
Correction factor (Ms): 0.4
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Short-circuit protection: Yes
max. Voltage drop switch output DC [V]: 2.5
MTTF: 2804
Test mark (special cases): CCC
Real switching distance Sr [mm]: 1 ± 10 %
Switching distance [mm]: 1
Switching frequency DC [Hz]: 750
Switch point drift: -10...10
IP 67 protection
Protection class III
Power consumption 15; (24 V)
Overload-proof: Yes
Reverse polarity protection: Yes

Product type: Sensor

Type: IE5072

Min. operating voltage: 10 V DC

Max. operating voltage: 36 V DC

Operating voltage: 10 - 36 V DC

Contact type: 1 maker

Switching distance (max.): 1 mm

Outputs: PNP

Enclosure material: Metal

Model: Inductive

Installation type: shielded

Size: M8

Connector: Cable, open end

Cable length: 2 m

Min. temperature: -25 °C

Max. temperature: 80 °C

Length: 35 mm

Content: 1 pc(s)

Switching frequency: 750 Hz

UKCA: yes
