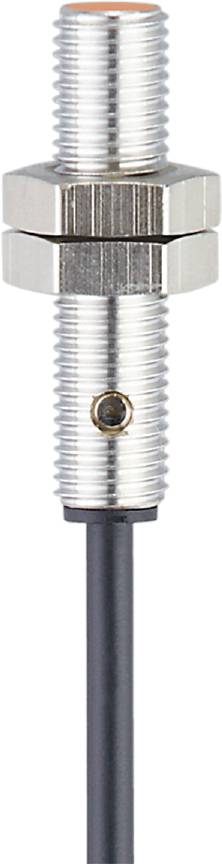

Image similar
ifm Electronic Sensor Inductive IE5078 IE5078 shielded PNP (Ø x L) 8 mm x 35 mm
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 breaker
Switching distance (max.)
1 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm IE5078 inductive sensor
- Special short design
- For use in narrow installation spaces
- Space-saving connection technology
- Robust metal casing for use in harsh industrial environments
- Very high switching frequency
Technical specifications
- Dimensions [mm]: M8 x 1 / L = 35
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...0.8
- Ambient temperature-1 [°C]: -25...80
- Tightening torque [Nm]: A = 5 mm: 1 ; B: 2
- Output function: NC
- Operating voltage [V]: 10... 36 DC
- Continuous current carrying capacity of the switching output DC [mA]: 200
- Flush mounting type: Flush mounting
- Electrical version: PNP
- Increased switching distance: No.
- Housing: Threaded design
- Weight [g]: 51,100
- Thread name M8 x 1
- Hysteresis: 1...15
- Cable: 2 m, PVC; 3 x 0.14 mm²
- Correction factor (Al): 0.3
- Correction factor (Cu): 0.2
- Correction factor (Ms): 0.4
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit protection: Yes
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 2737
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 1 ± 10 %
- Switching distance [mm]: 1
- Switching frequency DC [Hz]: 750
- Switch point drift: -10...10
- IP 67 protection
- Protection class III
- Power consumption 15; (24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
IE5078
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 breaker
- Switching distance (max.)
1 mm
- Outputs
PNP
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Connector
Cable, open end
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
35 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 35 mm
- Content
1 pc(s)
- Switching frequency
750 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318381 ifm Electronic Sensor Inductive IE5078 IE5078 shielded PNP (Ø x L) 8 mm x 35 mm
User & Safety Instructions
User & Safety Instructions 3318381 ifm Electronic Sensor Inductive IE5078 IE5078 shielded PNP (Ø x L) 8 mm x 35 mm
Description
Ifm IE5078 inductive sensor
