Image similar

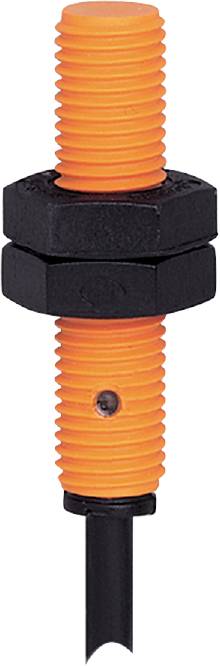

ifm Electronic Sensor Inductive IE5099 IE5099 M8 non-shielded PNP (Ø x L) 8 mm x 35 mm
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IE5099
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
PNP
- Model
Inductive
- Installation type
non-shielded
- Size
M8
- Connector
Cable, open end
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
35 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 35 mm
- Content
1 pc(s)
- Switching frequency
800 Hz
- UKCA
yes
