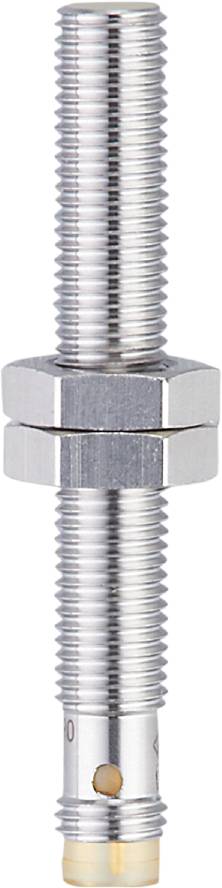

ifm Electronic Sensor Inductive IE5390 IE5390 M8 shielded PNP (Ø x L) 8 mm x 60 mm
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
1.5 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IE5390
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
1.5 mm
- Outputs
PNP
- Model
Inductive
- Installation type
shielded
- Size
M8
- Connector
M8
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
60 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 60 mm
- Content
1 pc(s)
- Switching frequency
1000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317957 ifm Electronic Sensor Inductive IE5390 IE5390 M8 shielded PNP (Ø x L) 8 mm x 60 mm
User & Safety Instructions
User & Safety Instructions 3317957 ifm Electronic Sensor Inductive IE5390 IE5390 M8 shielded PNP (Ø x L) 8 mm x 60 mm
