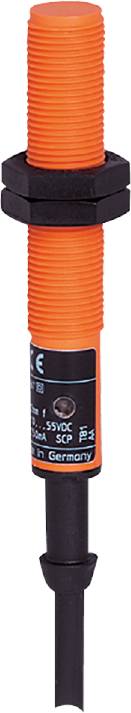

Image similar
ifm Electronic Sensor Inductive IF0001 IF0001 M12 shielded (Ø x L) 12 mm x 71.5 mm
Product type
Sensor
Max. operating voltage
250 V AC
Contact type
1 maker
Switching distance (max.)
2 mm
Model
Inductive
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm IF0001 inductive sensor
- With AC amplifier for use in AC voltage networks
- Two-wire technology
- With PVC connection cable
- Large AC operating voltage range
- For accurate detection of position on machines
Technical specifications
- Dimensions [mm] M12 x 1 / L = 71.5
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...1.6
- Ambient temperature-1 [°C]: -25...80
- Output function: Closer
- Operating voltage [V]: 20...250 AC
- Continuous current carrying capacity of switching output AC [mA]: 200; (250 (...50 °C)
- Flush mounting type: Flush mounting
- Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 2 A; quick-acting
- Frequency AC [Hz]: 47...63
- Housing: Threaded design
- Weight [g]: 101,600
- Thread name M12 x 1
- Hysteresis: 1...15
- Cable: 2 m, PVC; 2 x 0.5 mm²
- Correction factor (Al): 0.3
- Correction factor (Cu): 0.2
- Correction factor (Ms): 0.4
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit-proof: No.
- Short-term current carrying capacity of the switching output [mA]: 900; (20 ms / 0.5 Hz)
- Max. Residual current [mA]: 2
- max. Voltage drop switch output AC [V]: 8.5
- Minimum load current [mA]: 8
- MTTF: 932
- Real switching distance Sr [mm]: 2 ± 10 %
- Switching distance [mm]: 2
- Switching frequency AC [Hz]: 25
- Switch point drift: -10...10
- IP 67 protection
- Protection class: II
- Overload-proof: No.
- Reverse polarity protected: No.
- Product type
Sensor
- Type
IF0001
- Min. operating voltage
20 V AC
- Max. operating voltage
250 V AC
- Operating voltage
20 - 250 V AC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Model
Inductive
- Installation type
shielded
- Size
M12
- Connector
Cable, open end
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
71.5 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 71.5 mm
- Content
1 pc(s)
- Switching frequency
25 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318912 ifm Electronic Sensor Inductive IF0001 IF0001 M12 shielded (Ø x L) 12 mm x 71.5 mm
User & Safety Instructions
User & Safety Instructions 3318912 ifm Electronic Sensor Inductive IF0001 IF0001 M12 shielded (Ø x L) 12 mm x 71.5 mm
Description
Ifm IF0001 inductive sensor
