Name: ifm Electronic Sensor Inductive IF5018 IF5018 M12 non-shielded PNP (Ø) 12 mm
Brand: ifm Electronic
SKU: 3317923

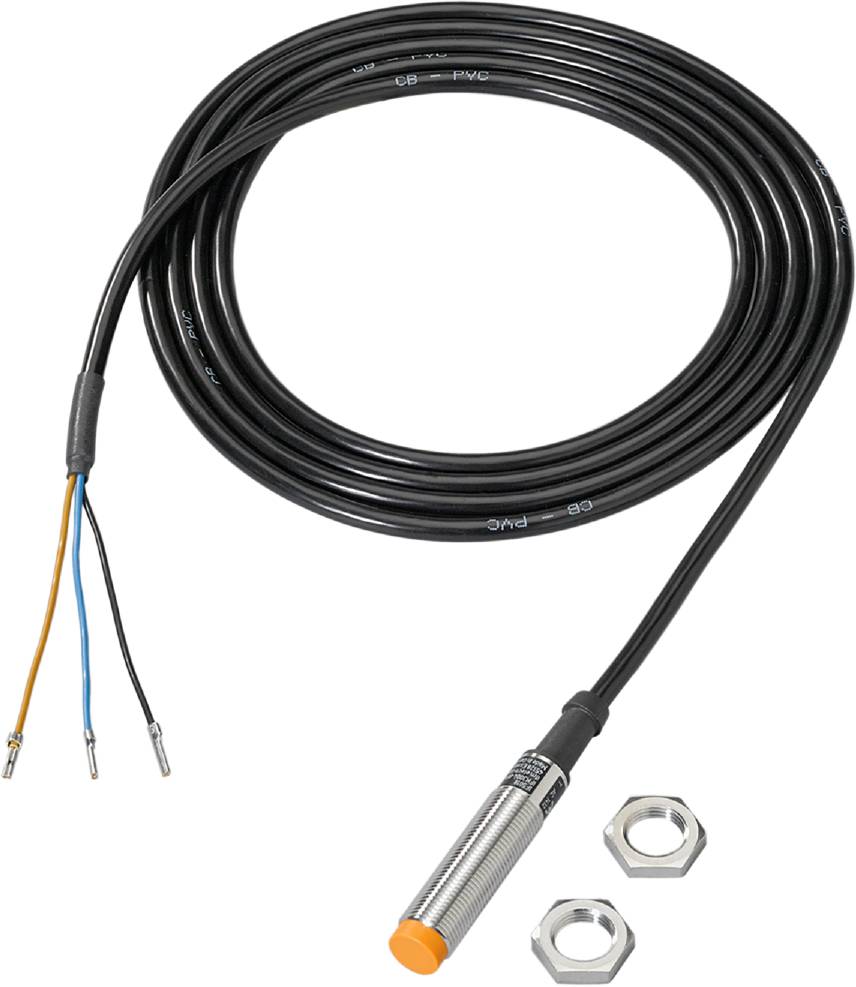

A cylindrical proximity sensor with three bare wires and a long, flexible connection. Two hexagonal nuts are positioned beside it.

Image similar

Product type

Sensor

Max. operating voltage

30 V DC

Contact type

1 maker

Switching distance (max.)

4 mm

Outputs

PNP

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm IF5018 Inductive Sensor

Robust metal casing for use in harsh industrial environments
High operating temperature range
High protection class to meet the requirements of harsh industrial ambient
For accurate detection of position on machines

Technical specifications

Dimensions [mm] M12 x 1
Working distance [mm]: 0...3.25
Ambient temperature-1 [°C]: -25...80
Output function: Closer
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 200
Built: Not flush-mounted
Electrical version: PNP
Housing: Threaded design
Weight [g]: 96,100
Thread name M12 x 1
Hysteresis: 1...15
Cable: 2 m, PVC; 3 x 0.34 mm²
Correction factor (Al): 0.3
Correction factor (Cu): 0.2
Correction factor (Ms): 0.4
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Short-circuit protection: Yes
max. Voltage drop switch output DC [V]: 2.5
MTTF: 1968
Test mark (special cases): CCC
Real switching distance Sr [mm]: 4 ± 10 %
Switching distance [mm]: 4
Switching frequency DC [Hz]: 300
Switch point drift: -10...10
IP 67 protection
Protection class: II
Power consumption 15; (24 V)
Overload-proof: Yes
Reverse polarity protection: Yes

Product type: Sensor

Type: IF5018

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Contact type: 1 maker

Switching distance (max.): 4 mm

Outputs: PNP

Enclosure material: Metal

Model: Inductive

Installation type: non-shielded

Size: M12

Connector: Cable, open end

Cable length: 2 m

Min. temperature: -25 °C

Max. temperature: 80 °C

(Ø): 12 mm

Dim: (Ø) 12 mm

Content: 1 pc(s)

Switching frequency: 300 Hz

UKCA: yes
