Image similar

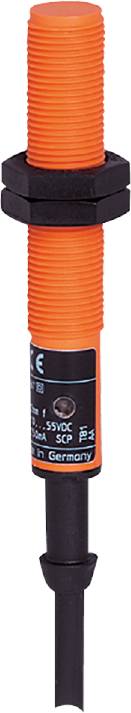

ifm Electronic Sensor Inductive IF5345 IF5345 M12 non-shielded PNP (Ø x L) 12 mm x 71 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
IF5345
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Outputs
PNP
- Model
Inductive
- Installation type
non-shielded
- Size
M12
- Connector
Cable, open end
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
71 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 71 mm
- Content
1 pc(s)
- Switching frequency
400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317820 ifm Electronic Sensor Inductive IF5345 IF5345 M12 non-shielded PNP (Ø x L) 12 mm x 71 mm
User & Safety Instructions
User & Safety Instructions 3317820 ifm Electronic Sensor Inductive IF5345 IF5345 M12 non-shielded PNP (Ø x L) 12 mm x 71 mm
