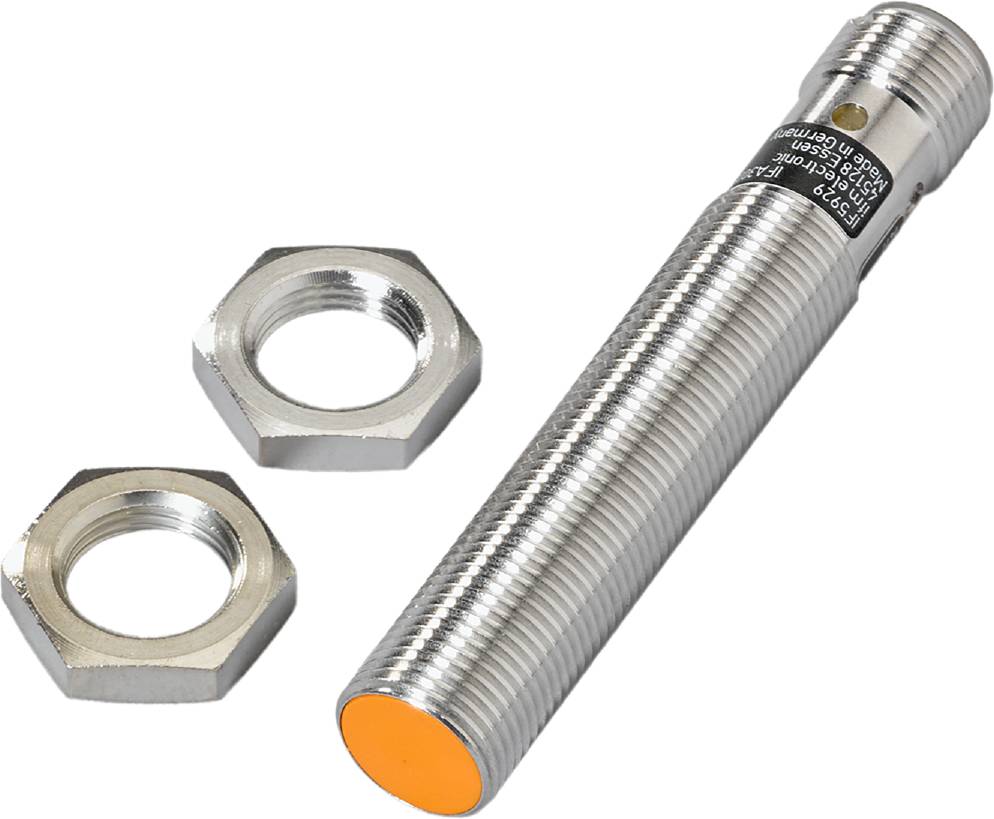

Image similar
ifm Electronic Sensor Inductive IF5653 IF5653 M12 shielded PNP (Ø x L) 12 mm x 70 mm
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
Antivalent
Switching distance (max.)
2 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm IF5653 Inductive Sensor
- Robust metal casing for use in harsh industrial environments
- Antivalent output function NO / NC
- Well visible indication of the switching state
- Very high switching frequency
- High operating temperature range
Technical specifications
- Dimensions [mm] M12 x 1 / L = 70
- Display: Switch status 4 x 90° LED, yellow
- Working distance [mm]: 0...1.6
- Ambient temperature-1 [°C]: -25...80
- Short-circuit protection version: Synchronised
- Output function: Earlier
- Operating voltage [V]: 10... 36 DC
- Constant current carrying capacity of the switching output DC [mA]: 250; (400 (...50 °C)
- Flush mounting type: Flush mounting
- Electrical version: PNP
- Housing: Threaded design
- Weight [g]: 29,900
- Thread name M12 x 1
- Hysteresis: 1...15
- Correction factor (Al): 0.4
- Correction factor (Cu): 0.3
- Correction factor (Ms): 0.5
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit protection: Yes
- Short-term current carrying capacity of the switching output [mA]: 400
- max. Voltage drop switch output DC [V]: 3.5
- MTTF: 1865
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 2 ± 10 %
- Switching distance [mm]: 2
- Switching frequency DC [Hz]: 1200
- Switch point drift: -10...10
- Protection system: IP 65
- Protection class: II
- Plug connection: Plug - pin layout: 0001 - plug connection: 1 x M12; coding: A.
- Power consumption 15; (24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
IF5653
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
Antivalent
- Switching distance (max.)
2 mm
- Outputs
PNP
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
M12
- Connector
M12
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
70 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 70 mm
- Content
1 pc(s)
- Switching frequency
1200 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318223 ifm Electronic Sensor Inductive IF5653 IF5653 M12 shielded PNP (Ø x L) 12 mm x 70 mm
User & Safety Instructions
User & Safety Instructions 3318223 ifm Electronic Sensor Inductive IF5653 IF5653 M12 shielded PNP (Ø x L) 12 mm x 70 mm
Description
Ifm IF5653 Inductive Sensor
