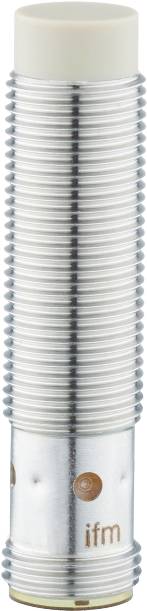

ifm Electronic Sensor Inductive IFT200 IFT200 M12 non-shielded PNP (Ø x H) 12 mm x 50 mm
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
7 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IFT200
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
7 mm
- Outputs
PNP
- Enclosure material
Stainless steel V4A
- Model
Inductive
- Installation type
non-shielded
- Size
M12
- Connector
M12
- Min. temperature
0 °C
- Max. temperature
100 °C
IP68/IP69K
- Length
50 mm
- Height
50 mm
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 50 mm
- Content
1 pc(s)
- Switching frequency
800 Hz
- Weight
0.03
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317776 ifm Electronic Sensor Inductive IFT200 IFT200 M12 non-shielded PNP (Ø x H) 12 mm x 50 mm
User & Safety Instructions
User & Safety Instructions 3317776 ifm Electronic Sensor Inductive IFT200 IFT200 M12 non-shielded PNP (Ø x H) 12 mm x 50 mm
