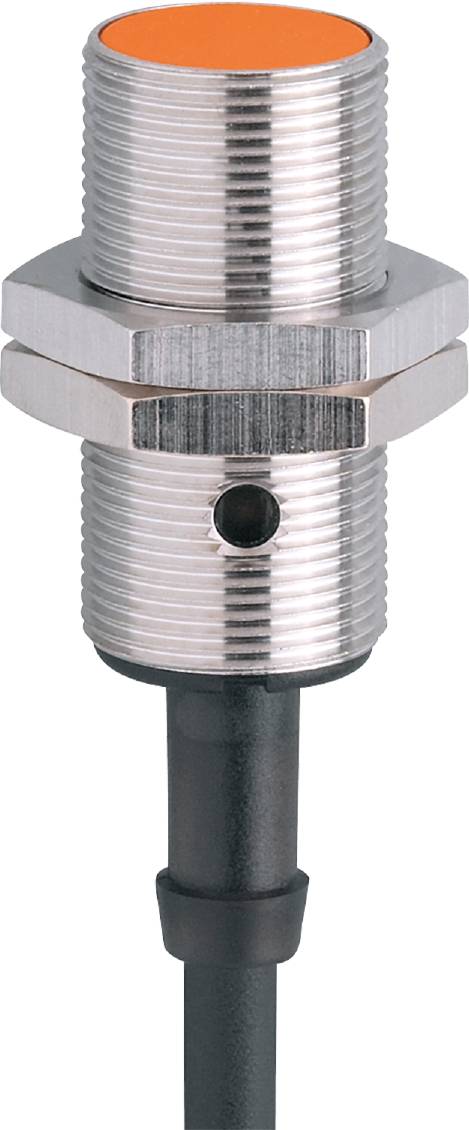

ifm Electronic Sensor Inductive IG5221 IG5221 M18 x 1 shielded PNP (Ø x L) 18 mm x 38 mm
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
5 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IG5221
- Min. operating voltage
18 V DC
- Max. operating voltage
36 V DC
- Operating voltage
18 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
5 mm
- Outputs
PNP
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
M18 x 1
- Connector
Cable, open end
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
38 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 38 mm
- Content
1 pc(s)
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317734 ifm Electronic Sensor Inductive IG5221 IG5221 M18 x 1 shielded PNP (Ø x L) 18 mm x 38 mm
User & Safety Instructions
User & Safety Instructions 3317734 ifm Electronic Sensor Inductive IG5221 IG5221 M18 x 1 shielded PNP (Ø x L) 18 mm x 38 mm
