Image similar

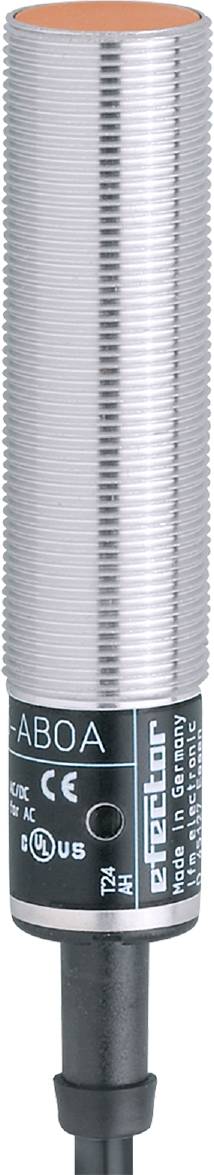

ifm Electronic Sensor Inductive IG5594 IG5594 M18 x 1 shielded PNP, NPN (Ø x L) 18 mm x 80 mm
Product type
Sensor
Max. operating voltage
55 V DC
Contact type
1 breaker
1 maker
Switching distance (max.)
5 mm
Outputs
PNP
NPN
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IG5594
- Min. operating voltage
10 V DC
- Max. operating voltage
55 V DC
- Operating voltage
10 - 55 V DC
- Contact type
1 breaker
1 maker
- Switching distance (max.)
5 mm
- Outputs
PNP
NPN
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
M18 x 1
- Connector
Cable, open end
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
80 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 80 mm
- Content
1 pc(s)
- Switching frequency
700 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317808 ifm Electronic Sensor Inductive IG5594 IG5594 M18 x 1 shielded PNP, NPN (Ø x L) 18 mm x 80 mm
User & Safety Instructions
User & Safety Instructions 3317808 ifm Electronic Sensor Inductive IG5594 IG5594 M18 x 1 shielded PNP, NPN (Ø x L) 18 mm x 80 mm
