ifm Electronic Sensor Inductive IG6614 IG6614 M18 x 1 shielded PNP (Ø x L) 18 mm x 70 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
35 V DC
Contact type
1 maker
Switching distance (max.)
5 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details

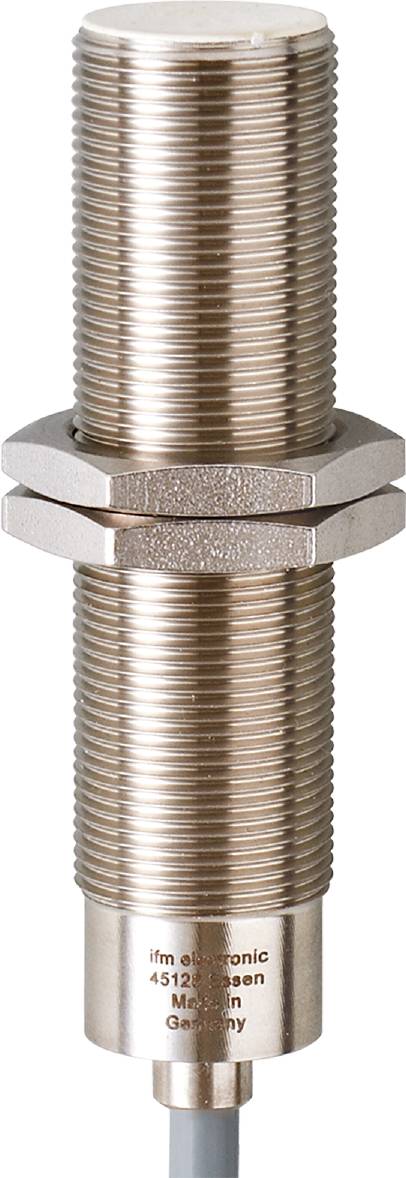

Ifm IG6614 Inductive Sensor
- For use in the temperature range up to 180 °C.
- For applications in the steel or glass industry
- Sensor and conditioning electronics in one housing
- Robust stainless steel housing for use in harsh industrial environments
- Long silicone cable enables clamping point in the non-critical range
Technical specifications
- Dimensions [mm]: M18 x 1 / L = 70
- Working distance [mm]: 0...4.1
- Ambient temperature-1 [°C]: 0...180
- Application: High temperature applications
- Output function: Closer
- Operating voltage [V]: 10... 35 DC
- Continuous current carrying capacity of the switching output DC [mA]: 150
- Flush mounting type: Flush mounting
- Electrical version: PNP
- Housing: Threaded design
- Weight [g]: 263,000
- Thread name M18 x 1
- Hysteresis: 3...15
- Cable: Cable: 5 m, silicone, Ø 5 mm; highly flexible; 3 x 0.22 mm²
- Correction factor (Al): 0.2
- Correction factor (Cu): 0.1
- Correction factor (Ms): 0.3
- Correction factor (V2A) 0.6
- Short-circuit-proof: Yes
- Max. Residual current [mA]: 0.5
- max. Voltage drop switch output DC [V]: 2
- MTTF: 682
- Test mark (special cases): CCC
- Switching distance [mm]: 5
- Switching frequency DC [Hz]: 400
- Switch point drift: -15...15
- Protection system: IP 65
- Protection class III
- Current consumption: < 15
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
IG6614
- Min. operating voltage
10 V DC
- Max. operating voltage
35 V DC
- Operating voltage
10 - 35 V DC
- Contact type
1 maker
- Switching distance (max.)
5 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M18 x 1
- Connector
Cable, open end
- Cable length
5 m
- Min. temperature
0 °C
- Max. temperature
180 °C
- Length
70 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 70 mm
- Content
1 pc(s)
- Switching frequency
400 Hz
- UKCA
yes
