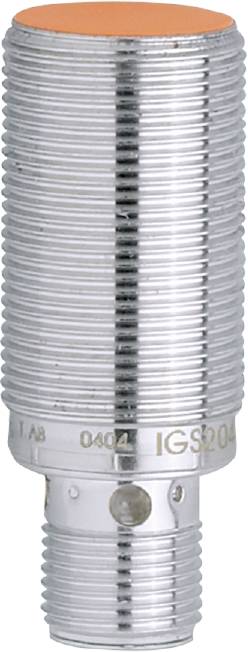

ifm Electronic Sensor Inductive IGS202 IGS202 M18 x 1 shielded PNP, NPN (Ø x L) 18 mm x 46 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
8 mm
Outputs
PNP
NPN
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
IGS202
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
8 mm
- Outputs
PNP
NPN
- Enclosure material
Metal
- Model
Inductive
- Installation type
shielded
- Size
M18 x 1
- Connector
M12
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
46 mm
- (Ø)
18 mm
- Dim
(Ø x L) 18 mm x 46 mm
- Content
1 pc(s)
- Switching frequency
300 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3317461 ifm Electronic Sensor Inductive IGS202 IGS202 M18 x 1 shielded PNP, NPN (Ø x L) 18 mm x 46 mm
User & Safety Instructions
User & Safety Instructions 3317461 ifm Electronic Sensor Inductive IGS202 IGS202 M18 x 1 shielded PNP, NPN (Ø x L) 18 mm x 46 mm
