Name: ifm Electronic Sensor Inductive II5321 II5321 M30 non-shielded PNP, NPN (Ø) 30 mm
Brand: ifm Electronic
SKU: 3318173

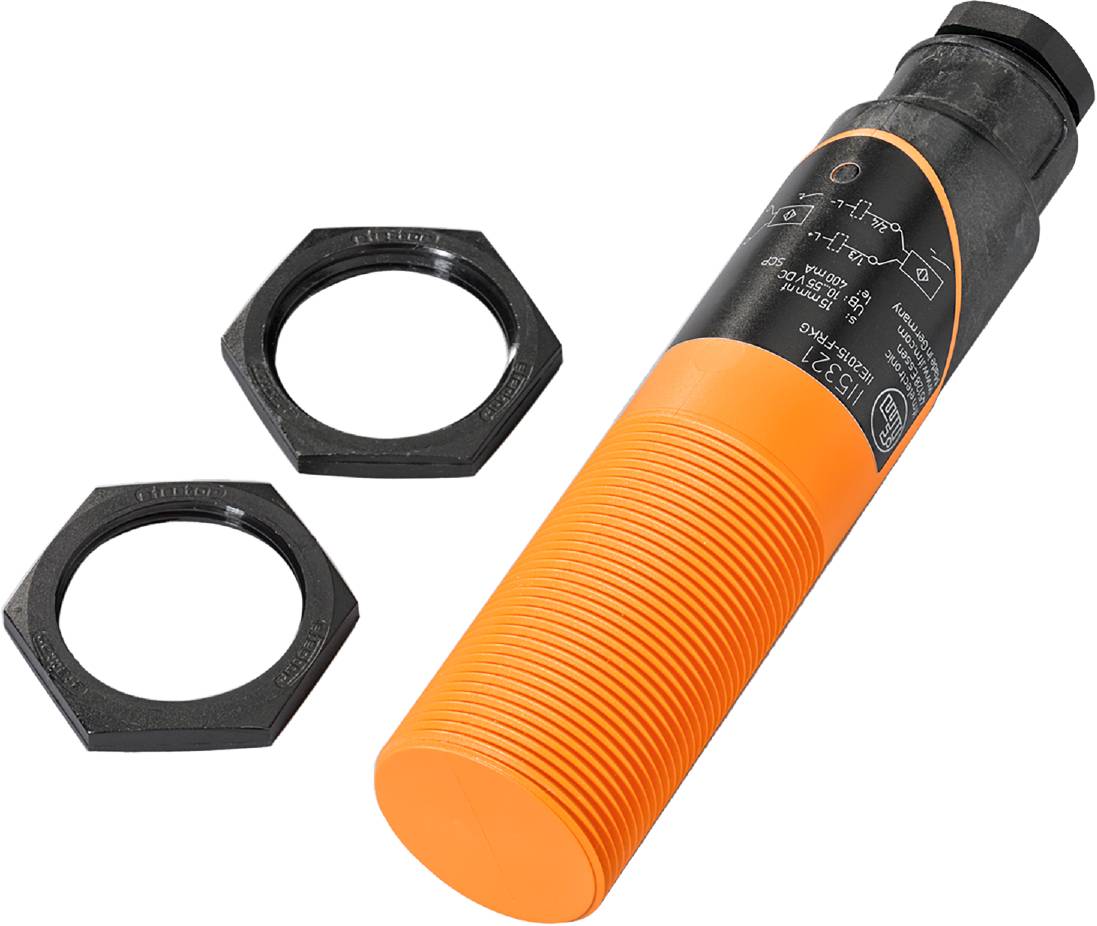

A cylindrical sensor in orange and black with two accompanying black hexagonal nuts, suitable for mounting.

Image similar

Product type

Sensor

Max. operating voltage

55 V DC

Contact type

1 breaker

1 maker

Switching distance (max.)

15 mm

Outputs

PNP

NPN

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm II5321 Inductive Sensor

Output function NO / NC programmable
High operating temperature range
Two-wire technology
With connection space rotating by 90°
Large operating voltage range

Technical specifications

Dimensions [mm] M30 x 1.5
Display: Switch status 1 x LED, yellow
Working distance [mm]: 0...12.1
Ambient temperature-1 [°C]: -25...80
Short-circuit protection version: Synchronised
Output function: NO / NC; (selectable)
Operating voltage [V]: 10... 55 DC
Continuous current carrying capacity of the switching output DC [mA]: 400
Built: Not flush-mounted
Electrical version: PNP/NPN
Housing: Threaded design
Weight [g]: 116,000
Thread name M30 x 1.5
Hysteresis: 1...15
Connection / Terminals ready for assembly: Terminals: ...2.5 mm²; cable jacket: Ø 7...13 mm; cable gland: M20 X 1.5
Short-circuit protection: Yes
Max. Residual current [mA]: 1
max. Voltage drop switch output DC [V]: 4.6
Minimum load current [mA]: 4
MTTF: 1699
Real switching distance Sr [mm]: 15 ± 10 %
Switching distance [mm]: 15
Switching frequency DC [Hz]: 200
Switch point drift: -10...10
Protection system: IP 65
Protection class: II
Overload-proof: Yes
Reverse polarity protection: Yes

Product type: Sensor

Type: II5321

Min. operating voltage: 10 V DC

Max. operating voltage: 55 V DC

Operating voltage: 10 - 55 V DC

Contact type: 1 breaker
1 maker

Switching distance (max.): 15 mm

Outputs: PNP
NPN

Model: Inductive

Installation type: non-shielded

Size: M30

Connector: Clip

Features: LED indicator

Min. temperature: -25 °C

Max. temperature: 80 °C

(Ø): 30 mm

Dim: (Ø) 30 mm

Content: 1 pc(s)

Switching frequency: 200 Hz

UKCA: yes
