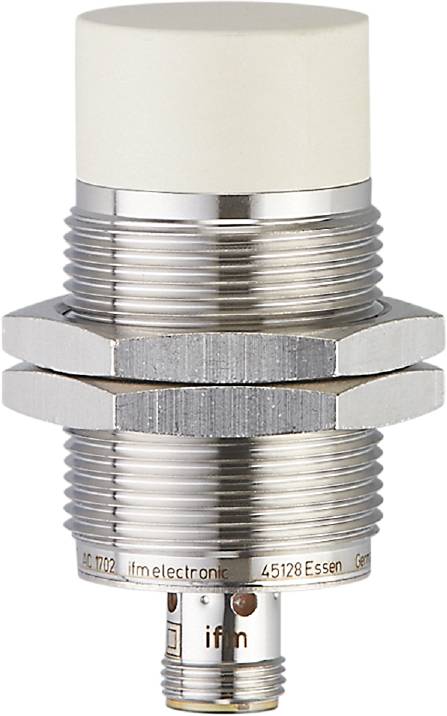

ifm Electronic Sensor Inductive IIC219 IIC219 M30 non-shielded PNP (Ø x H) 30 mm x 65 mm
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
22 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IIC219
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
22 mm
- Outputs
PNP
- Enclosure material
Stainless steel V4A
- Model
Inductive
- Installation type
non-shielded
- Size
M30
- Connector
M12
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP68
- Length
65 mm
- Height
65 mm
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 65 mm
- Content
1 pc(s)
- Switching frequency
2000 Hz
- UKCA
yes
