Image similar

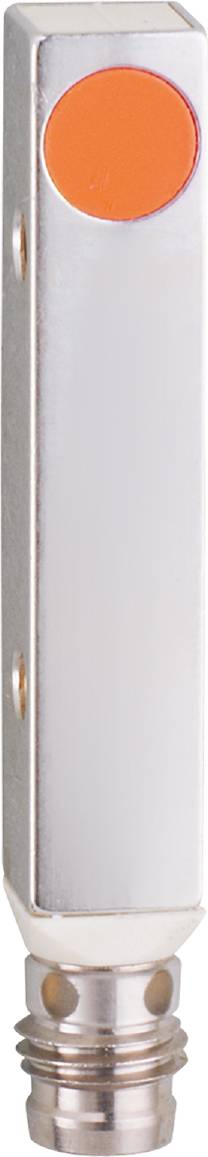

ifm Electronic Sensor Inductive IL5004 IL5004 8 x 8 x 40 mm shielded PNP (L x W x H) 40 x 8 x 8 mm
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IL5004
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
PNP
- Model
Inductive
- Installation type
shielded
- Size
8 x 8 x 40 mm
- Connector
M8
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
40 mm
- Width
8 mm
- Height
8 mm
- Dim
(L x W x H) 40 x 8 x 8 mm
- Content
1 pc(s)
- Switching frequency
2000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318547 ifm Electronic Sensor Inductive IL5004 IL5004 8 x 8 x 40 mm shielded PNP (L x W x H) 40 x 8 x 8 mm
User & Safety Instructions
User & Safety Instructions 3318547 ifm Electronic Sensor Inductive IL5004 IL5004 8 x 8 x 40 mm shielded PNP (L x W x H) 40 x 8 x 8 mm
