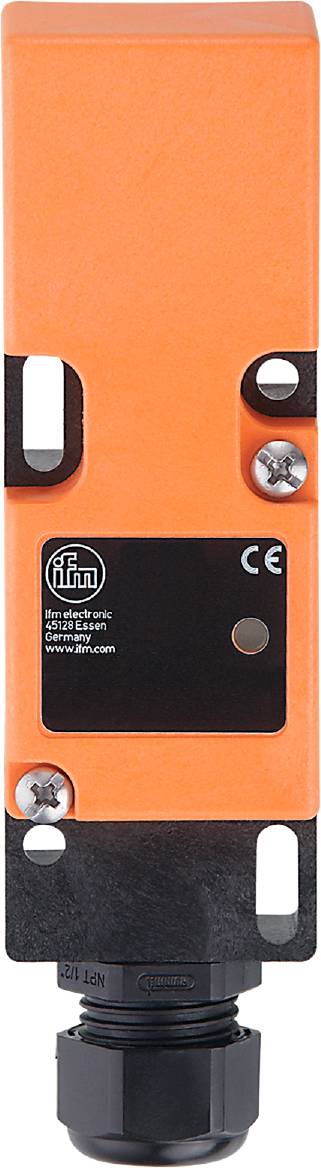

ifm Electronic Sensor Inductive IM5020 IM5020 40 x 40 mm shielded PNP (L x W x H) 121 x 40 x 120 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 breaker
1 maker
Switching distance (max.)
15 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
Ifm IM5020 inductive sensor
- High operating distance for use in conveyor systems
- Output function NO / NC programmable
- Robust housing for use in rough industrial environment
- Well visible indication of the switching state
Technical specifications
- Dimensions [mm] 40 x 40 x 120
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...12.1
- Ambient temperature-1 [°C]: -25...80
- Short-circuit protection version: Synchronised
- Output function: NO / NC; (selectable)
- Operating voltage [V]: 10... 36 DC
- Continuous current carrying capacity of the switching output DC [mA]: 250
- Flush mounting type: Flush mounting
- Electrical version: PNP
- Housing: Square
- Weight [g]: 191,000
- Hysteresis: 1...15
- Connection / Terminals ready for assembly: Terminals: ...2.5 mm²; cable jacket: Ø 7...13 mm; cable gland: M20 X 1.5
- Correction factor (Al): 0.3
- Correction factor (Cu): 0.2
- Correction factor (Ms): 0.4
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit protection: Yes
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 2234
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 15 ± 10 %
- Switching distance [mm]: 15
- Switching frequency DC [Hz]: 250
- Switch point drift: -10...10
- Protection system: IP 65
- Protection class: II
- Power consumption 15; (24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
IM5020
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 breaker
1 maker
- Switching distance (max.)
15 mm
- Outputs
PNP
- Enclosure material
PPE
- Model
Inductive
- Installation type
shielded
- Size
40 x 40 mm
- Connector
Clip
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP65
- Length
121 mm
- Width
40 mm
- Height
120 mm
- Dim
(L x W x H) 121 x 40 x 120 mm
- Content
1 pc(s)
- Switching frequency
250 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318922 ifm Electronic Sensor Inductive IM5020 IM5020 40 x 40 mm shielded PNP (L x W x H) 121 x 40 x 120 mm
User & Safety Instructions
User & Safety Instructions 3318922 ifm Electronic Sensor Inductive IM5020 IM5020 40 x 40 mm shielded PNP (L x W x H) 121 x 40 x 120 mm
Description
Ifm IM5020 inductive sensor
