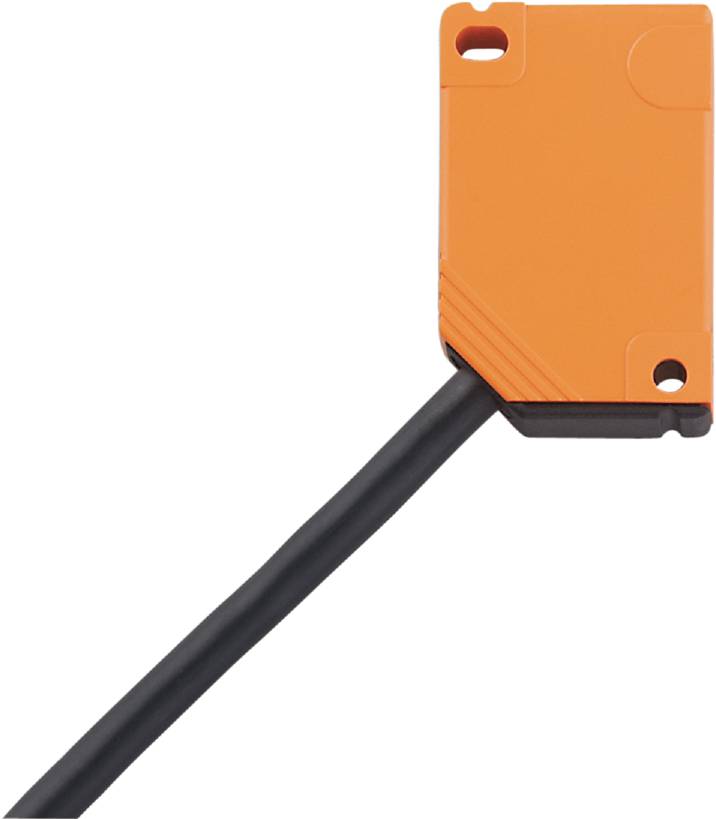

Image similar
ifm Electronic Sensor Inductive IN0081 IN0081 12 x 26 x 40 mm non-shielded Two-wire (L x W x H) 40 x 12 x 26 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
250 V DC
250 V AC
Contact type
1 maker
Switching distance (max.)
4 mm
Outputs
Two-wire
Datasheet (PDF)
Highlights & Details
Ifm IN0081 inductive sensor
- With combined AC/DC output stage
- Large operating voltage range
- Two-wire technology
- Particularly space-saving rectangular design
- For use in narrow installation spaces
Technical specifications
- Dimensions [mm] 40 x 12 x 26
- Display: Switch status 1 x LED, yellow
- Working distance [mm]: 0...3.25
- Ambient temperature-1 [°C]: -25...80
- Tightening torque - mounting hole [Nm]: < 0.5
- Tightening torque - threaded bush [Nm]: < 1.2; (when the brass bushing is placed on the counter-clamping surface)
- Output function: Closer
- OPERATING VOLTAGE [V]: 20...250 AC/DC
- Continuous current carrying capacity of switching output AC [mA]: 250; (350 (...50 °C)
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Built: Not flush-mounted
- Required fuse: Miniature fuse in accordance with IEC60127-2 Sheet 1; ≤ 2 A; quick-acting
- Housing: Square
- Weight [g]: 103,900
- Hysteresis: 1...20
- Cable: 2 m, PVC; 2 x 0.5 mm²
- Correction factor (Al): 0.5
- Correction factor (Cu): 0.4
- Correction factor (Ms): 0.6
- Correction factor (V2A) 0.9
- Correction factor steel (St37): 1
- Short-circuit-proof: No.
- Short-term current carrying capacity of the switching output [mA]: 2200; (50 ms / 1 Hz)
- Max. RESIDUAL CURRENT [MA]: 2.0 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC)
- max. Voltage drop switch output AC [V]: 6.7
- max. Voltage drop switch output DC [V]: 6
- Minimum load current [mA]: 5
- MTTF: 609
- Real switching distance Sr [mm]: 4 ± 10 %
- Switching distance [mm]: 4
- Switching frequency AC [Hz]: 25
- Switching frequency DC [Hz]: 50
- Switch point drift: -10...10
- IP 67 protection
- Protection class: II
- Overload-proof: No.
- Polarity reversal protected: Yes
- Product type
Sensor
- Type
IN0081
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
250 V DC
250 V AC
- Operating voltage
20, 20 - 250, 250 V DC, V AC
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Outputs
Two-wire
- Model
Inductive
- Installation type
non-shielded
- Size
12 x 26 x 40 mm
- Connector
Cable, open end
- Cable length
2 m
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
40 mm
- Width
12 mm
- Height
26 mm
- Dim
(L x W x H) 40 x 12 x 26 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318928 ifm Electronic Sensor Inductive IN0081 IN0081 12 x 26 x 40 mm non-shielded Two-wire (L x W x H) 40 x 12 x 26 mm
User & Safety Instructions
User & Safety Instructions 3318928 ifm Electronic Sensor Inductive IN0081 IN0081 12 x 26 x 40 mm non-shielded Two-wire (L x W x H) 40 x 12 x 26 mm
Description
Ifm IN0081 inductive sensor
