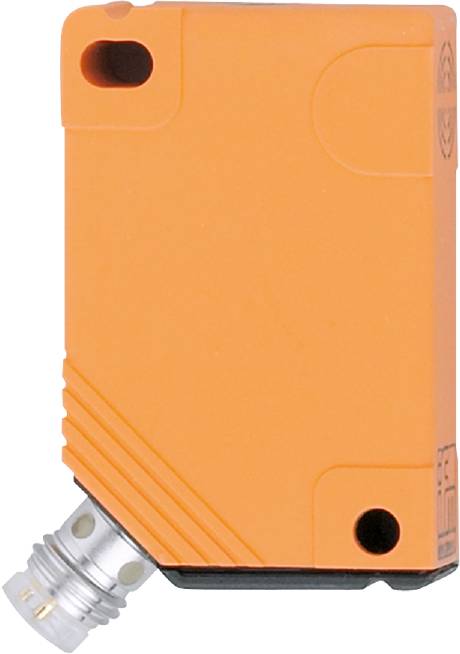

ifm Electronic Sensor Inductive IN5212 IN5212 12 x 40 mm non-shielded PNP (L x W x H) 26 x 12 x 26 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
IN5212
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Outputs
PNP
- Enclosure material
PBT
- Model
Inductive
- Installation type
non-shielded
- Size
12 x 40 mm
- Connector
M8
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP65
- Length
26 mm
- Width
12 mm
- Height
26 mm
- Dim
(L x W x H) 26 x 12 x 26 mm
- Content
1 pc(s)
- Switching frequency
1300 Hz
- UKCA
yes
