Image similar

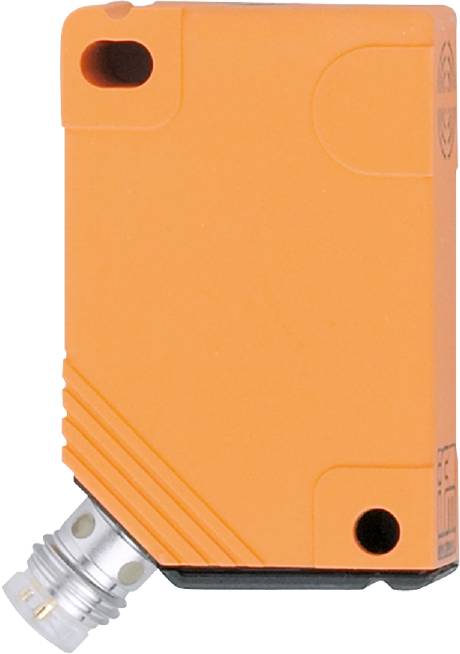

ifm Electronic Sensor Inductive IN5230 IN5230 12 x 40 mm shielded PNP (L x W x H) 26 x 12 x 26 mm
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
2 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IN5230
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
PNP
- Enclosure material
PBT
- Model
Inductive
- Installation type
shielded
- Size
12 x 40 mm
- Connector
M8
- Min. temperature
-20 °C
- Max. temperature
80 °C
IP67
- Length
26 mm
- Width
12 mm
- Height
26 mm
- Dim
(L x W x H) 26 x 12 x 26 mm
- Content
1 pc(s)
- Switching frequency
1400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318536 ifm Electronic Sensor Inductive IN5230 IN5230 12 x 40 mm shielded PNP (L x W x H) 26 x 12 x 26 mm
User & Safety Instructions
User & Safety Instructions 3318536 ifm Electronic Sensor Inductive IN5230 IN5230 12 x 40 mm shielded PNP (L x W x H) 26 x 12 x 26 mm
