Image similar

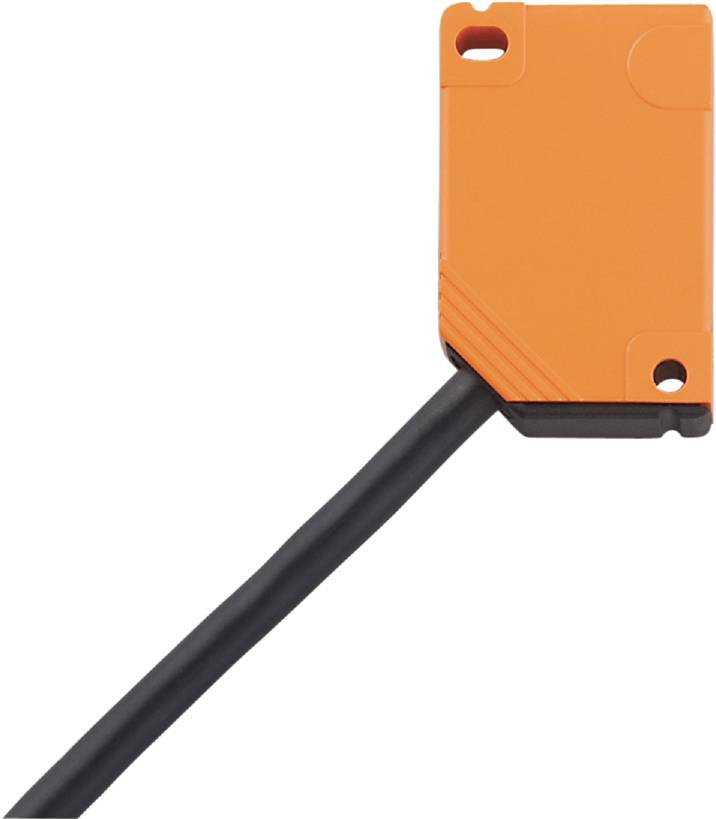

ifm Electronic Sensor Inductive IN5426 IN5426 12 x 26 x 40 mm non-shielded PNP, NPN (L x W x H) 40 x 12 x 26 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 breaker
1 maker
Switching distance (max.)
4 mm
Outputs
PNP
NPN
Datasheet (PDF)
Technical specifications
- Product type
Sensor
- Type
IN5426
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 breaker
1 maker
- Switching distance (max.)
4 mm
- Outputs
PNP
NPN
- Model
Inductive
- Installation type
non-shielded
- Size
12 x 26 x 40 mm
- Connector
Cable, open end
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
40 mm
- Width
12 mm
- Height
26 mm
- Dim
(L x W x H) 40 x 12 x 26 mm
- Content
1 pc(s)
- Switching frequency
1200 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318007 ifm Electronic Sensor Inductive IN5426 IN5426 12 x 26 x 40 mm non-shielded PNP, NPN (L x W x H) 40 x 12 x 26 mm
User & Safety Instructions
User & Safety Instructions 3318007 ifm Electronic Sensor Inductive IN5426 IN5426 12 x 26 x 40 mm non-shielded PNP, NPN (L x W x H) 40 x 12 x 26 mm
