Name: ifm Electronic Sensor Inductive IS5001 IS5001 shielded PNP
Brand: ifm Electronic
SKU: 3318156

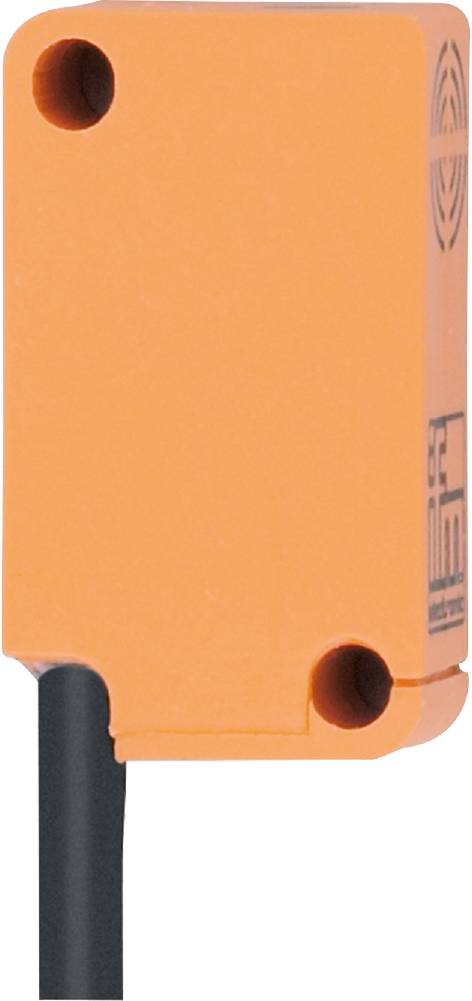

An orange sensor with a black connector at the bottom. Technical specifications are visible in small print on the right.

Image similar

Product type

Sensor

Max. operating voltage

30 V DC

Contact type

1 maker

Switching distance (max.)

2 mm

Outputs

PNP

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Ifm IS5001 inductive sensor

Particularly space-saving rectangular design
For use in narrow installation spaces
Very high switching frequency
High operating temperature range
Well visible indication of the switching state

Technical specifications

Dimensions [mm] 28 x 10 x 16
Display: Switch status 1 x LED, yellow
Working distance [mm]: 0...1.62
Ambient temperature-1 [°C]: -25...80
Tightening torque [Nm]: < 0.5; (with washer)
Output function: Closer
Operating voltage [V]: 10... 30 DC
Continuous current carrying capacity of the switching output DC [mA]: 200
Flush mounting type: Flush mounting
Electrical version: PNP
Housing: Square
Weight [g]: 44,600
Hysteresis: 1...15
Cable: 2 m, PVC, Ø 3.5 mm, 3 x 0.14 mm²
Correction factor (Al): 0.3
Correction factor (Cu): 0.2
Correction factor (Ms): 0.4
Correction factor (V2A) 0.7
Correction factor steel (St37): 1
Short-circuit protection: Yes
Short-term current carrying capacity of the switching output [mA]: 200
Max. Residual current [mA]: 0.5
max. Voltage drop switch output DC [V]: 2.5
MTTF: 3044
Test mark (special cases): CCC
Real switching distance Sr [mm]: 2 ± 10 %
Switching distance [mm]: 2
Switching frequency DC [Hz]: 800
Switch point drift: -10...10
IP 67 protection
Protection class III
Current consumption: < 15
Overload-proof: Yes
Polarity reversal protected: Yes

Product type: Sensor

Type: IS5001

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Contact type: 1 maker

Switching distance (max.): 2 mm

Outputs: PNP

Enclosure material: PBT

Model: Inductive

Installation type: shielded

Connector: Cable, open end

Cable length: 2 m

Min. temperature: -25 °C

Max. temperature: 80 °C

: IP67

Length: 16 mm

Content: 1 pc(s)

Switching frequency: 800 Hz

UKCA: yes
