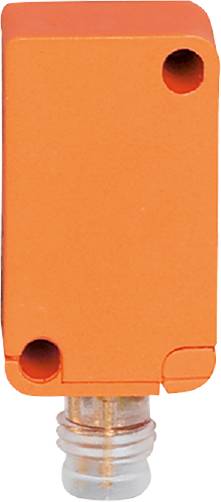

Image similar
ifm Electronic Sensor Inductive IS5071 IS5071 non-shielded PNP (L x W x H) 28 x 10 x 16 mm
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
4 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Ifm IS5071 Inductive Sensor
- Particularly space-saving rectangular design
- For use in narrow installation spaces
- Very high switching frequency
- High switching distance for high plant availability
- With space-saving M8 connector
Technical specifications
- Dimensions [mm] 28 x 10 x 16
- Display: Switch status 4 x 90° LED, yellow
- Working distance [mm]: 0...3.25
- Ambient temperature-1 [°C]: -25...70
- Tightening torque [Nm]: < 0.5; (with washer)
- Output function: Closer
- Operating voltage [V]: 10... 30 DC
- Continuous current carrying capacity of the switching output DC [mA]: 200
- Built: Not flush-mounted
- Electrical version: PNP
- Housing: Square
- Weight [g]: 11,300
- Hysteresis: 1...15
- Short-circuit protection: Yes
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 3076
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 4 ± 10 %
- Switching distance [mm]: 4
- Switching frequency DC [Hz]: 2000
- IP 65; (with properly screwed ifm socket: IP 67)
- Protection class III
- Plug connection: Plug - pin layout: 0059 - plug connection: 1 x M8; code: A.
- Current consumption: 15
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
IS5071
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
4 mm
- Outputs
PNP
- Model
Inductive
- Installation type
non-shielded
- Connector
M8
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
28 mm
- Width
10 mm
- Height
16 mm
- Dim
(L x W x H) 28 x 10 x 16 mm
- Content
1 pc(s)
- Switching frequency
2000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318388 ifm Electronic Sensor Inductive IS5071 IS5071 non-shielded PNP (L x W x H) 28 x 10 x 16 mm
User & Safety Instructions
User & Safety Instructions 3318388 ifm Electronic Sensor Inductive IS5071 IS5071 non-shielded PNP (L x W x H) 28 x 10 x 16 mm
Description
Ifm IS5071 Inductive Sensor
This text is machine translated.
This text is machine translated.
