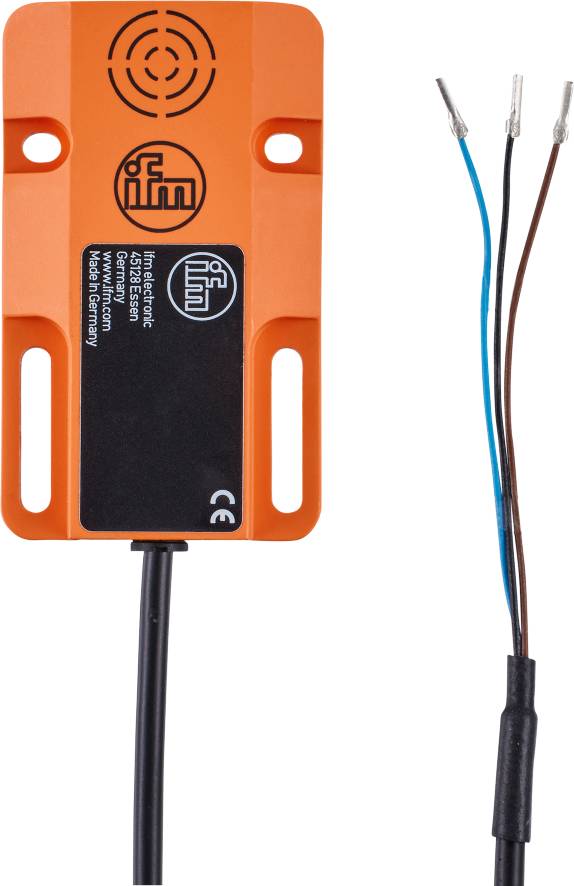

ifm Electronic Sensor Inductive IW5053 IW5053 non-shielded PNP (L x W x H) 60 x 36 x 10 mm
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 breaker
Switching distance (max.)
8 mm
Outputs
PNP
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Sensor
- Type
IW5053
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 breaker
- Switching distance (max.)
8 mm
- Outputs
PNP
- Model
Inductive
- Installation type
non-shielded
- Connector
Cable, open end
- Cable length
2 m
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
60 mm
- Width
36 mm
- Height
10 mm
- Dim
(L x W x H) 60 x 36 x 10 mm
- Content
1 pc(s)
- Switching frequency
300 Hz
- UKCA
yes
