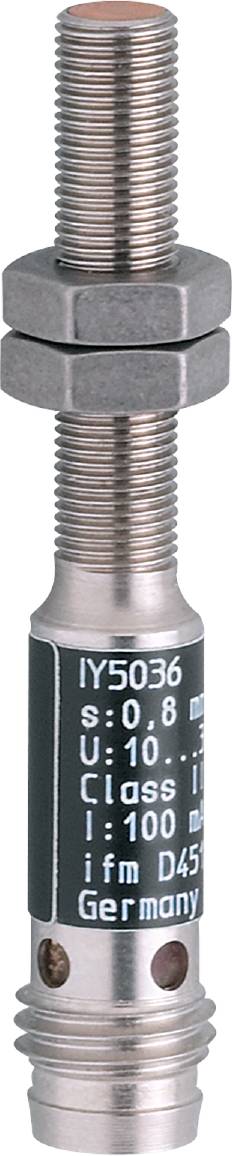

Image similar
ifm Electronic Sensor Inductive IY5036 IY5036 M5 shielded PNP (Ø x L) 5 mm x 45 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
36 V DC
Contact type
1 maker
Switching distance (max.)
0.8 mm
Outputs
PNP
Datasheet (PDF)
Highlights & Details
IY5036 Inductive sensor
- For use in narrow installation spaces
- With space-saving M8 connector
- Well visible indication of the switching state
- Robust stainless steel housing for use in harsh industrial environments
- Very high switching frequency
Technical specifications
- Dimensions [mm]: M5 x 0.5 / L = 45
- Display: Switch status 4 x 90° LED, red
- Working distance [mm]: 0...0.65
- Ambient temperature-1 [°C]: -25...70
- Tightening torque [Nm]: 2
- Short-circuit protection version: Synchronised
- Output function: Closer
- Operating voltage [V]: 10... 36 DC
- Continuous current carrying capacity of the switching output DC [mA]: 100
- Flush mounting type: Flush mounting
- Electrical version: PNP
- Housing: Threaded design
- Weight [g]: 10,800
- Thread name M5 x 0.5
- Hysteresis: 1...15
- Correction factor (Al): 0.4
- Correction factor (Cu): 0.3
- Correction factor (Ms): 0.5
- Correction factor (V2A) 0.7
- Correction factor steel (St37): 1
- Short-circuit protection: Yes
- max. Voltage drop switch output DC [V]: 2.5
- MTTF: 1999
- Test mark (special cases): CCC
- Real switching distance Sr [mm]: 0.8 ± 10 %
- Switching distance [mm]: 0.8
- Switching frequency DC [Hz]: 2000
- Switch point drift: -10...10
- Protection system: IP 65
- Protection class III
- Plug connection: Plug - pin layout: 0059 - plug connection: 1 x M8; code: A.
- Power consumption 15; (24 V)
- Overload-proof: Yes
- Reverse polarity protection: Yes
- Product type
Sensor
- Type
IY5036
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Contact type
1 maker
- Switching distance (max.)
0.8 mm
- Outputs
PNP
- Enclosure material
Stainless steel
- Model
Inductive
- Installation type
shielded
- Size
M5
- Connector
M8
- Features
LED indicator
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
45 mm
- (Ø)
5 mm
- Dim
(Ø x L) 5 mm x 45 mm
- Content
1 pc(s)
- Switching frequency
2000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3318817 ifm Electronic Sensor Inductive IY5036 IY5036 M5 shielded PNP (Ø x L) 5 mm x 45 mm
User & Safety Instructions
User & Safety Instructions 3318817 ifm Electronic Sensor Inductive IY5036 IY5036 M5 shielded PNP (Ø x L) 5 mm x 45 mm
Description
IY5036 Inductive sensor
