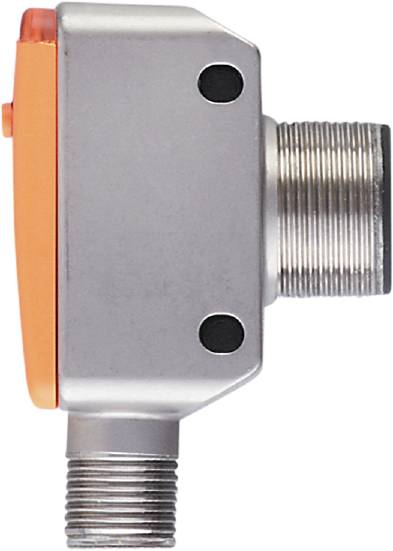

Image similar
ifm Electronic Ultrasonic switch Ultrasound M18 x 1 modular assembly NPN UGT586 Piece
Packaging type
Piece
Product type
Ultrasonic switch
Max. operating voltage
30 V DC
Outputs
NPN
Switching distance (max.)
300 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Packaging type
Piece
- Product type
Ultrasonic switch
- Type
UGT586
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
NPN
- Switching distance (max.)
300 mm
- Model
Ultrasound
- Features
LED indicator
- Connector
M12
- Installation type
modular assembly
- Size
M18 x 1
- Enclosure material
Metal
IP67
- Min. temperature
-20 °C
- Max. temperature
70 °C
- Length
53 mm
- Width
20 mm
- Height
37.7 mm
- Dim
(L x W x H) 53 x 20 x 37.7 mm
- RoHS-compliant
Yes
- UKCA
yes
