Iiyama Digital signage display EEC: G (A - G) 138.8 cm 54.6 inch 3840 x 2160 Pixel
EAN:
Part number:
Item no:
Highlights & Details
Iiyama Digital signage display
- Screen size diagonal: 138.8 cm (54.6 inch)
- Display resolution: 3840 x 2160 Pixel
- Energy efficiency rating (calc): G (A - G)
- Multi-Touch
Technical specifications
- HD type 4K Ultra HD
- Contrast ratio 1200:1
- 0.315 x 0.315 mm pixel distance
- Built-in graphics card model: ARM Mali-G52
- Installed operating system: Android™
- WLAN-standards Wi-Fi 6 (802.11ax)
- Audio input (mini jack): Yes
- Playback media Y
- User controls: General settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode color temp), settings (wireless & networks, share, device, personal, system)
- Product type
Digital signage display
- Screen size diagonal (inches)
54 inch
- Features
Multi-Touch
- Display technology
LCD
- Static contrast ratio
1200 : 1
- Display resolution
3840 x 2160 Pixel
- Dot pitch (horizontal)
0.315 mm
- Dot pitch (vertical)
0.315 mm
- Image format
16:9
- Network/internet function
WiFi
- Wi-Fi
b/g/n/ax
- Controller
Touchscreen
- No. of USB ports
6 x

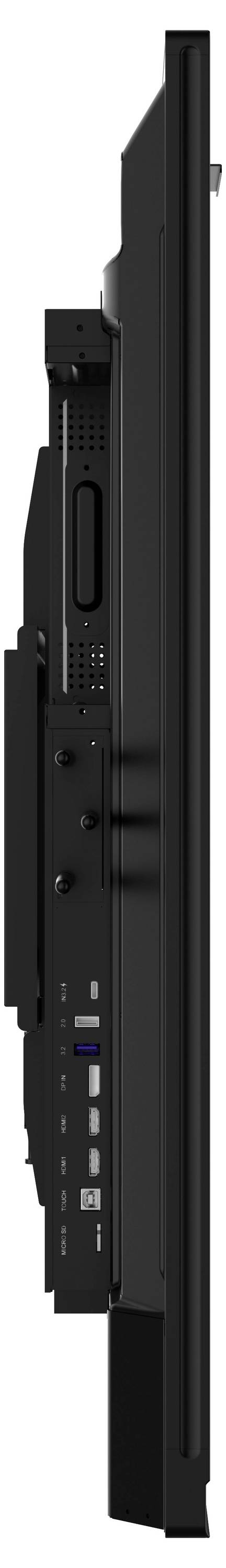

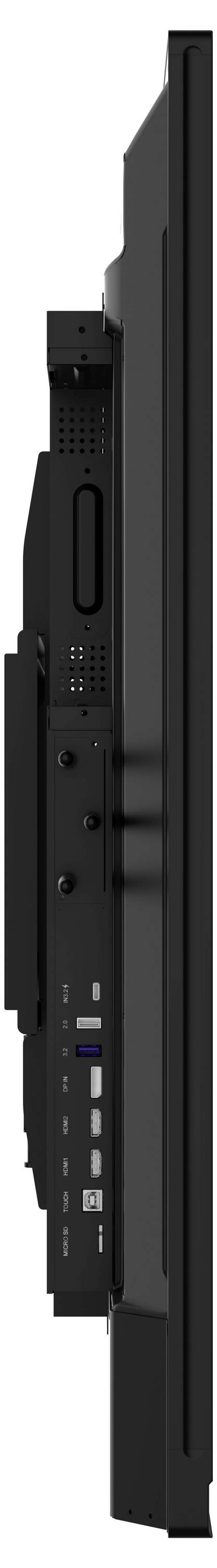

- Interfaces
RJ45
- Power supply (details)
100 - 240 V
- Power consumption (standby)
0.5 W

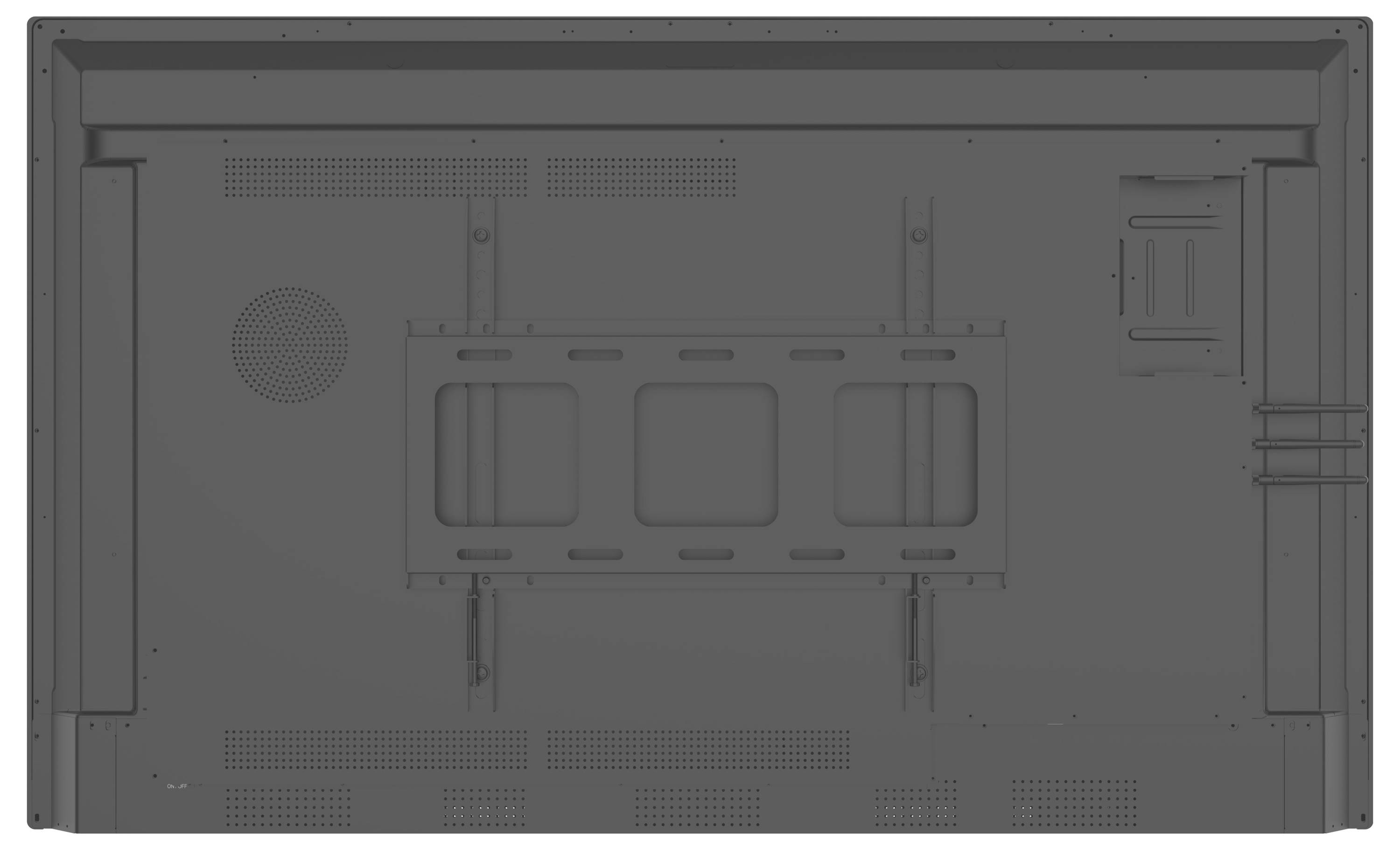

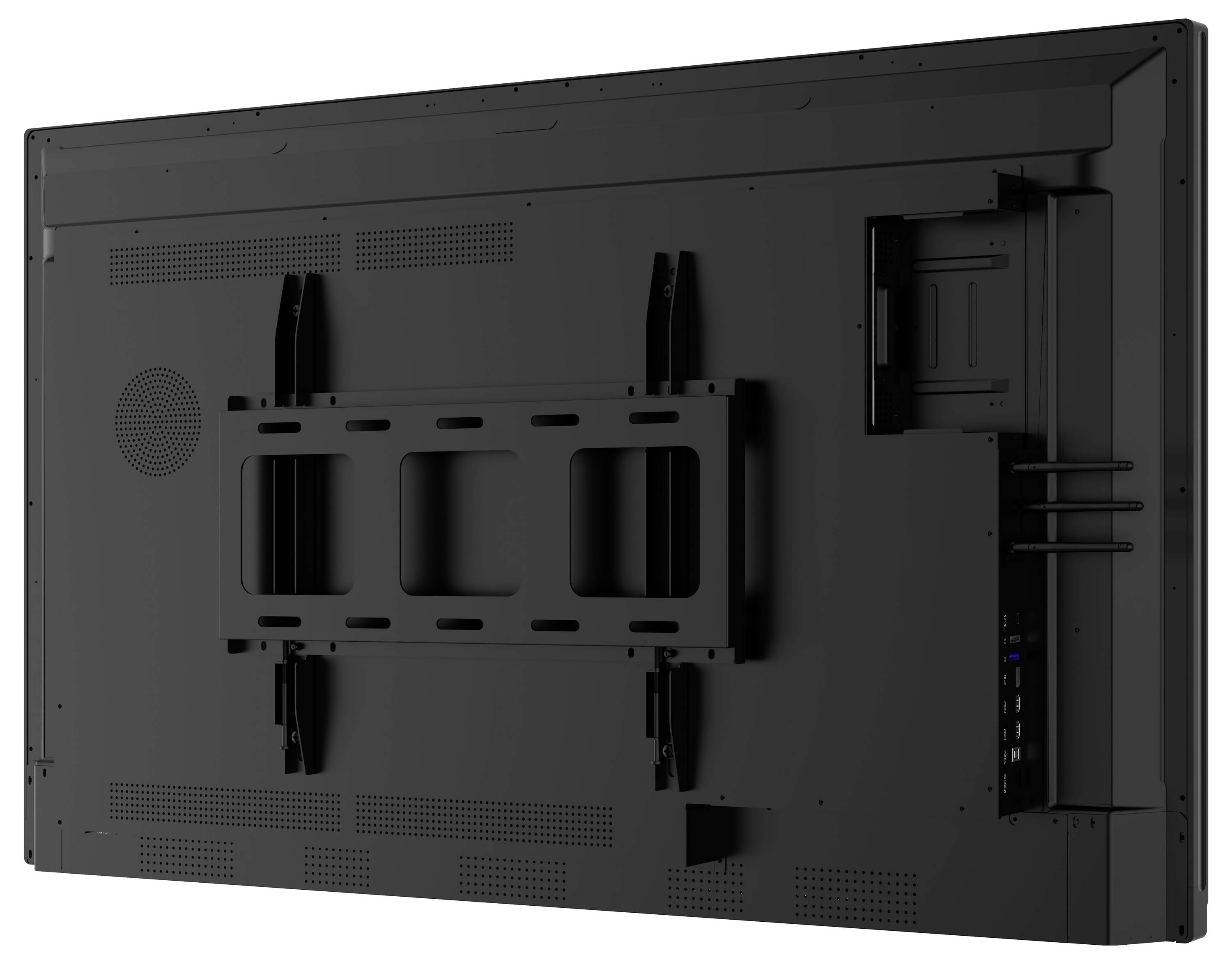

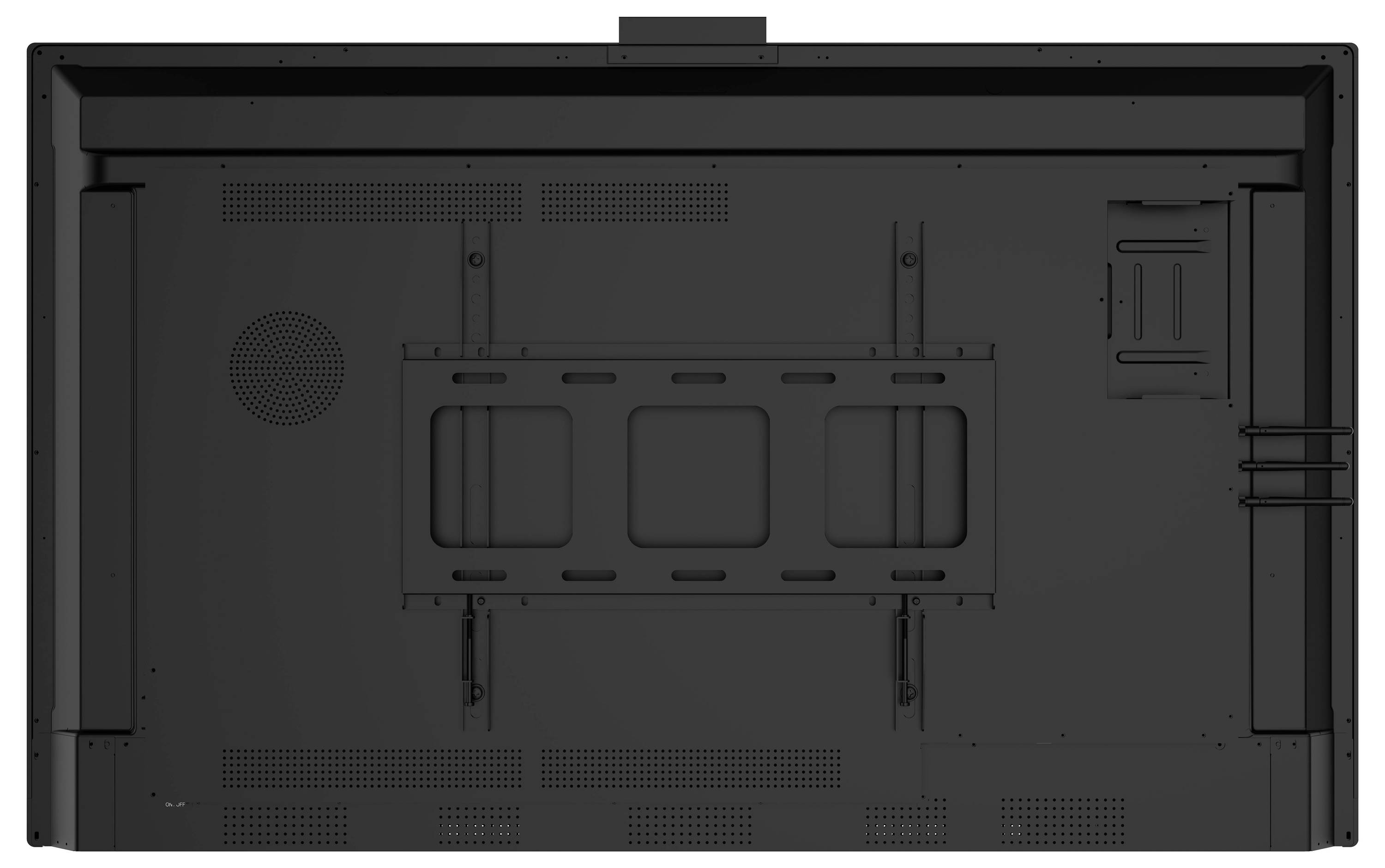

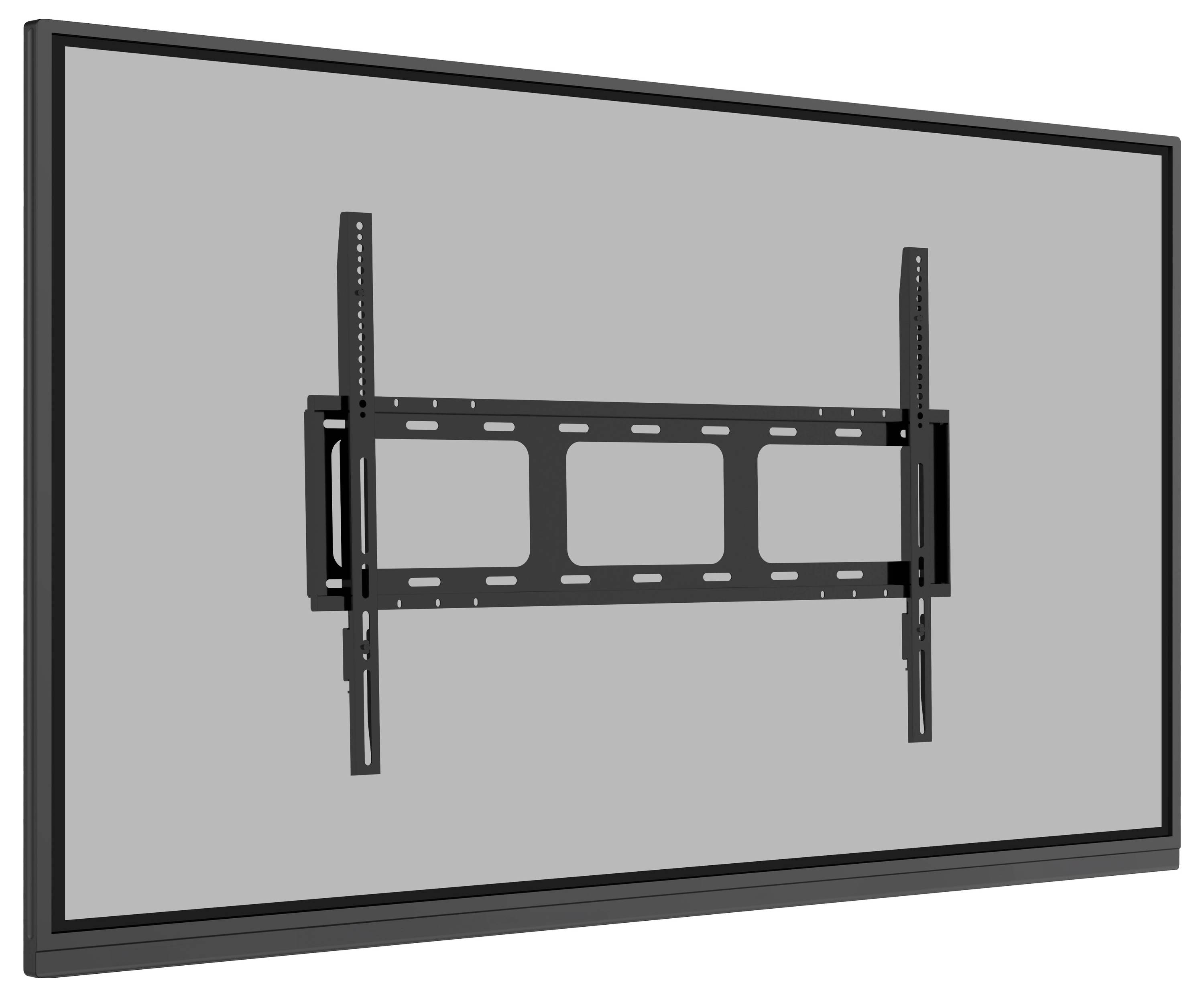

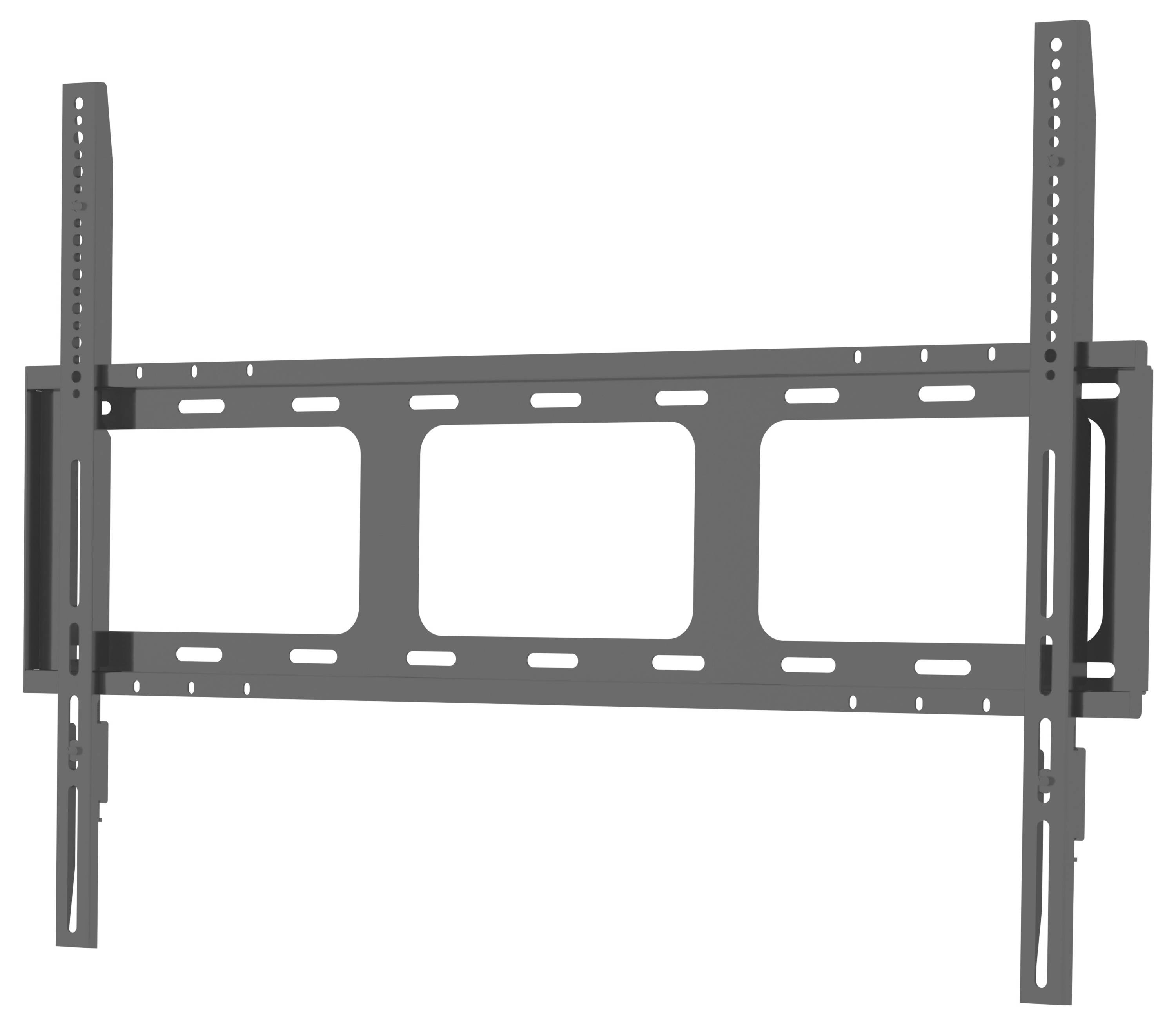

400 x 400 mm
- Factory colour
Multicolour
- Dim
(W x H x D) 1267 x 765.5 x 117.5 mm
- Width
1267 mm
- Height
765.5 mm
- Depth
117.5 mm
- Height (without base)
765.5 mm
- Device depth (without stand)
117.5 mm
- Weight
28.7 kg
- Weight (without base)
28.7 kg
G (A - G)
- Display
138.7 cm (54.6 inch)
- Screen resolution
Ultra HD (3840 x 2160 Pixel)
- Display (cm)
138.7 cm
- Screen size diagonal (cm)
138.8 cm
- Screen size diagonal (inches)
54.6 inch
- Power consumption (off)
0.3 W
- Power consumption (ON)
126 W
- Bluetooth
5.0
- Bluetooth
Yes
- Display properties
IPS
- No. of DisplayPort
1 x
- Touchscreen (display)
Yes
- HDCP
Yes
- Charging method (Power Delivery)
with USB Power Delivery
- Memory capacity
128 GB
- 10/100/1000 Mbps ports
2 x
- Audio power (max.)
60 W
- Type
internal
- Response time
8 ms
8 GB
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- Wi-Fi
Yes
- UKCA
yes
- Anti-glare screen
yes
- Operating temperature (T-T)
0 - 40 °C
- Number of simultaneous touchpoints
40
- Ethernet LAN
yes
- RS-232C
yes
- Brightness
500 cd/m²
- Active display area (W x H)
1209,6 x 680,4 mm
- Remote control included
yes
- Number of built-in speakers
2
- OPS slot
1
- Built-in speaker(s)
yes

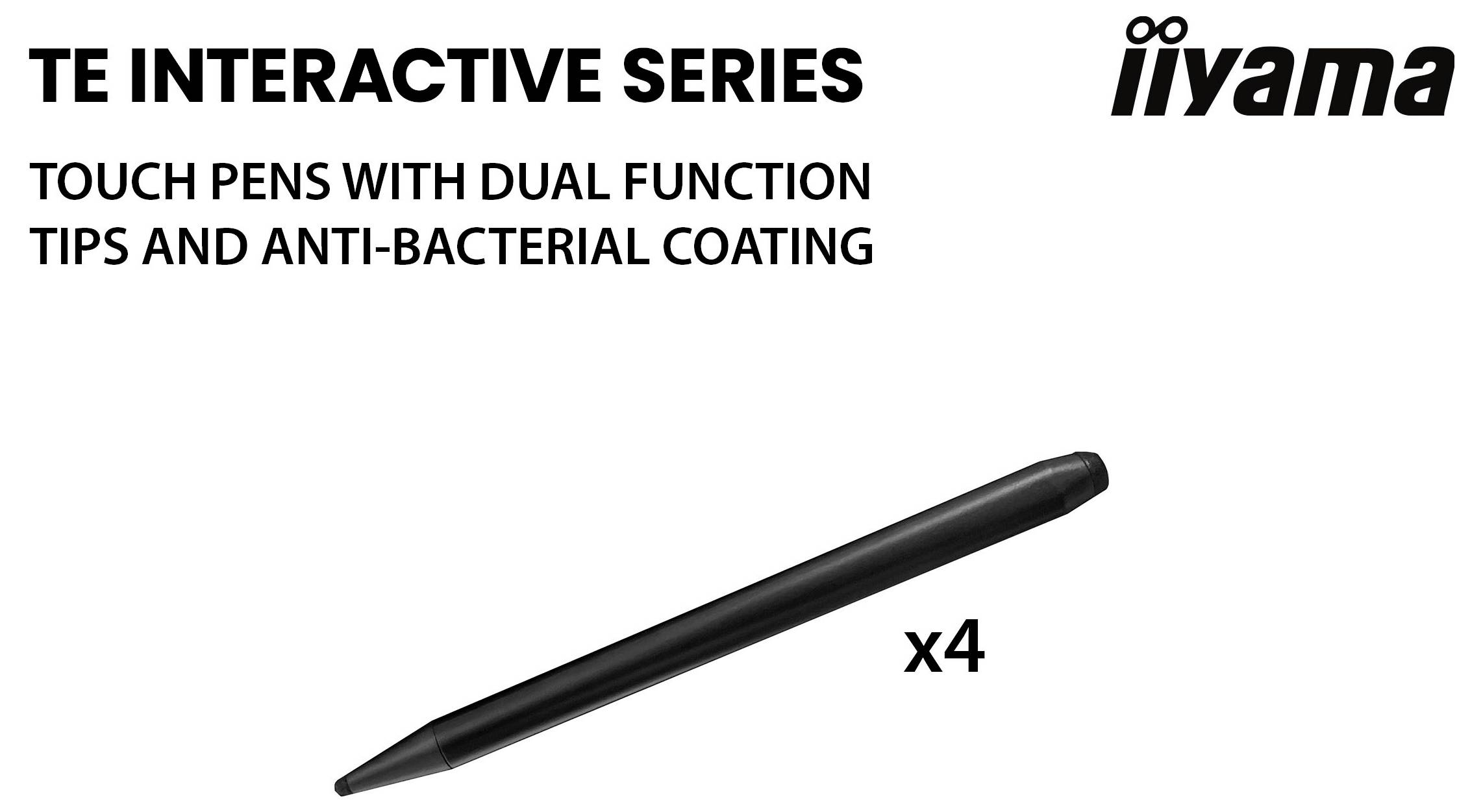

- Number of stylus pens
4
- On Screen Display (OSD)
yes
- USB Type-C DisplayPort Alternate Mode
yes
- Horizontal scan range
30 - 135 kHz
- OPS module slot
yes
- HDMI input ports quantity
1
- USB Power Delivery up to
100 W
- Quick start guide
yes
- Mean time between failures (MTBF)
50000 h
- Built-in processor
yes
- Stylus pen
yes
- Glass thickness
3.2 mm
- Audio Return Channel (ARC)
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729154 Iiyama Digital signage display EEC: G (A - G) 138.8 cm 54.6 inch 3840 x 2160 Pixel
Description

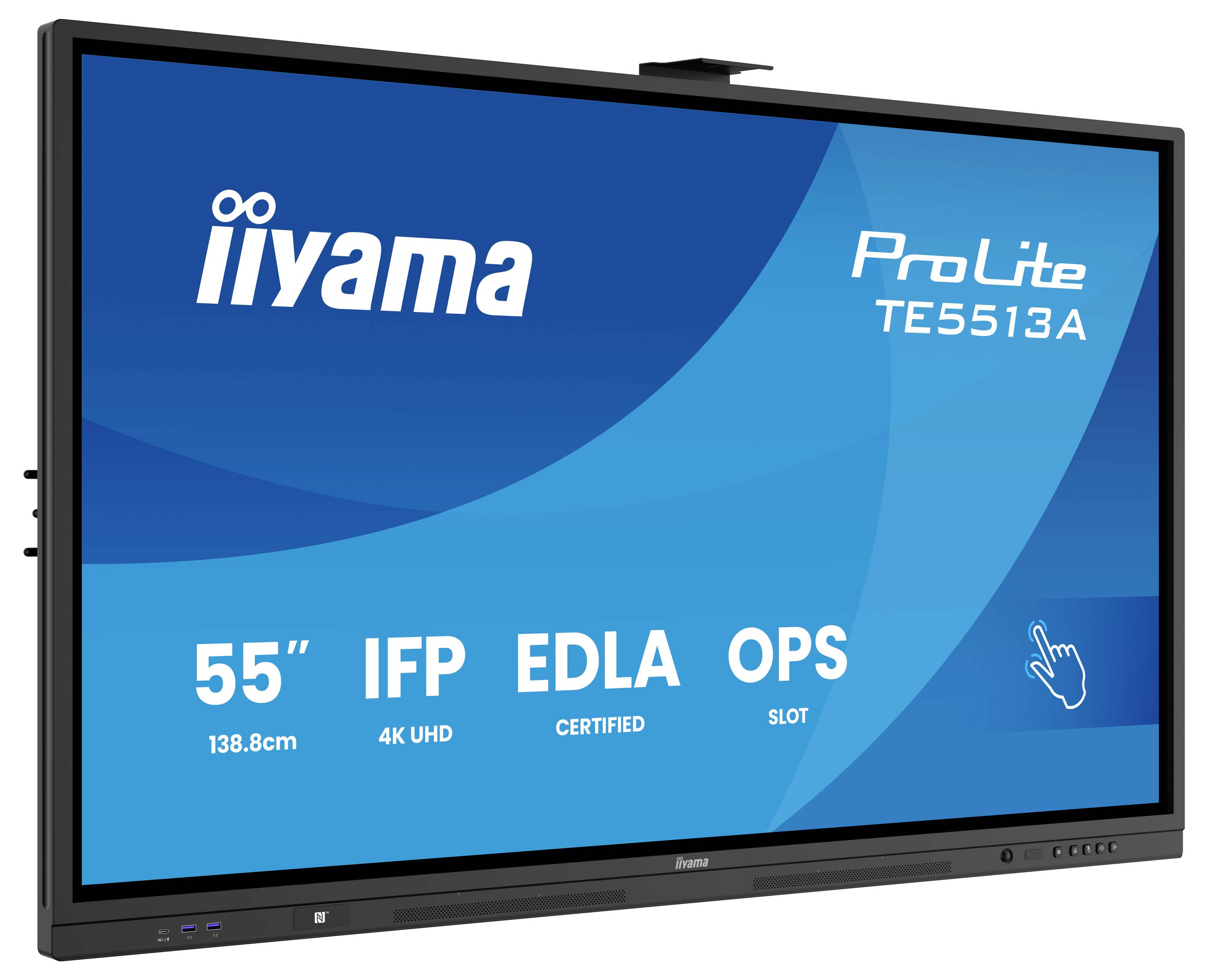

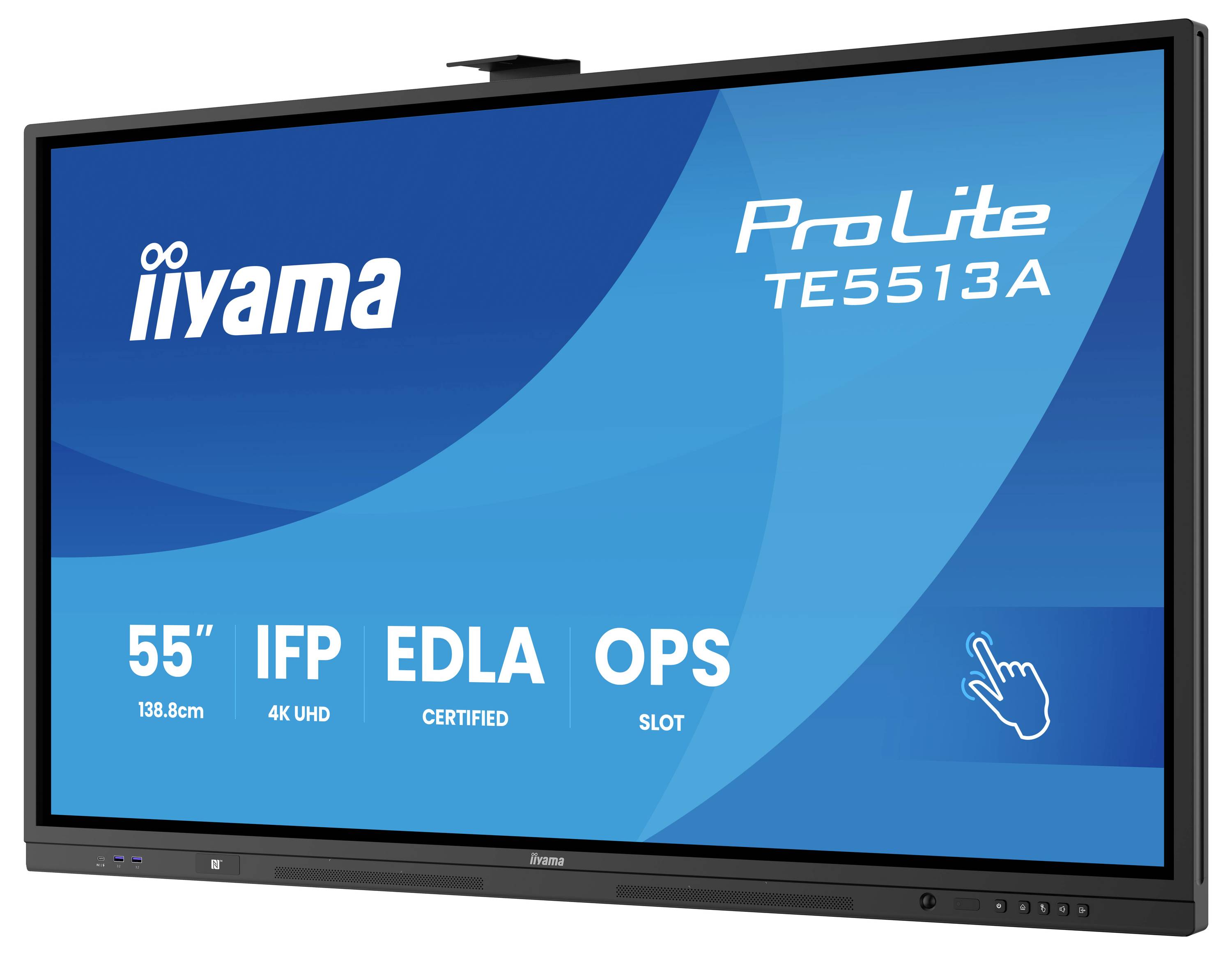

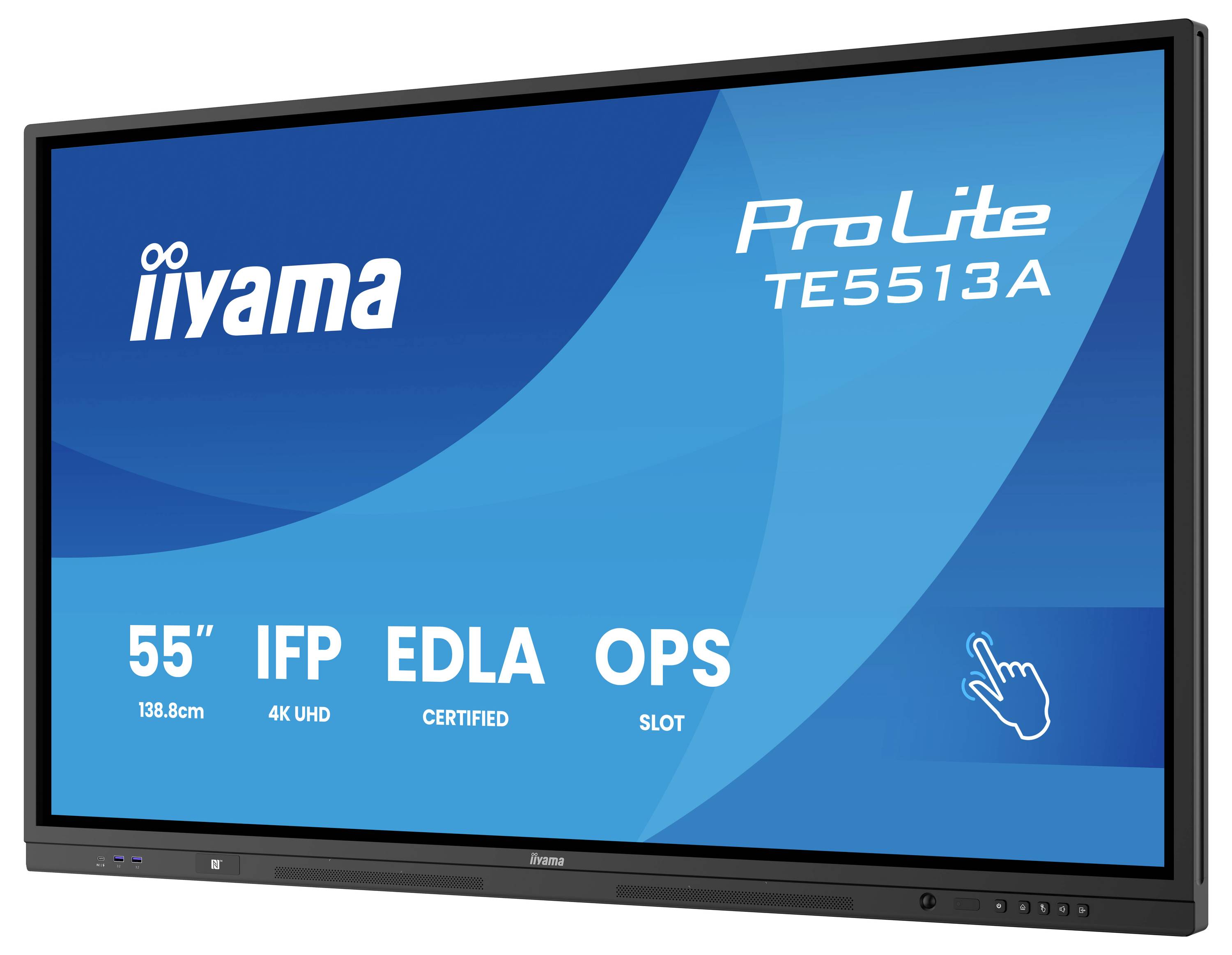

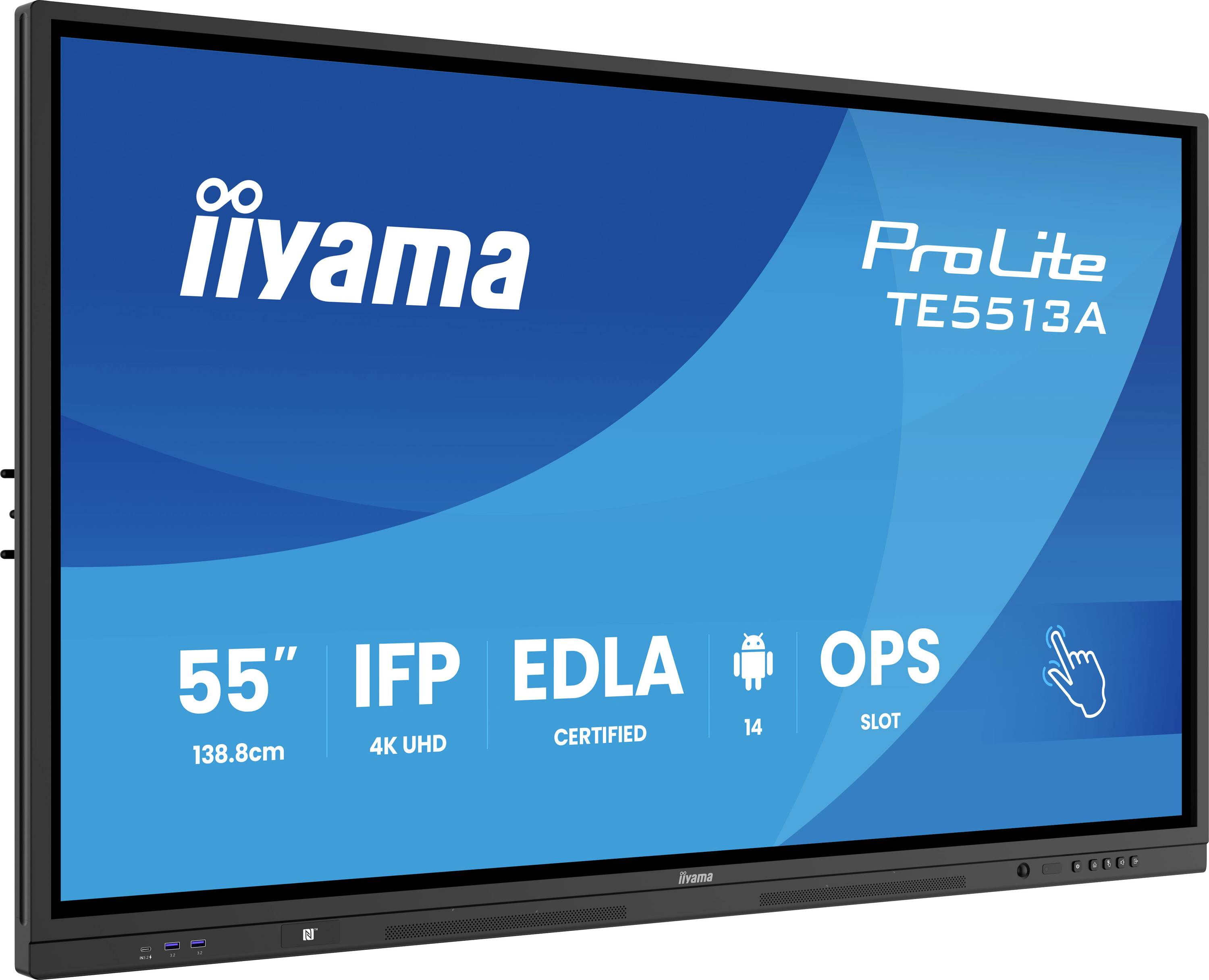

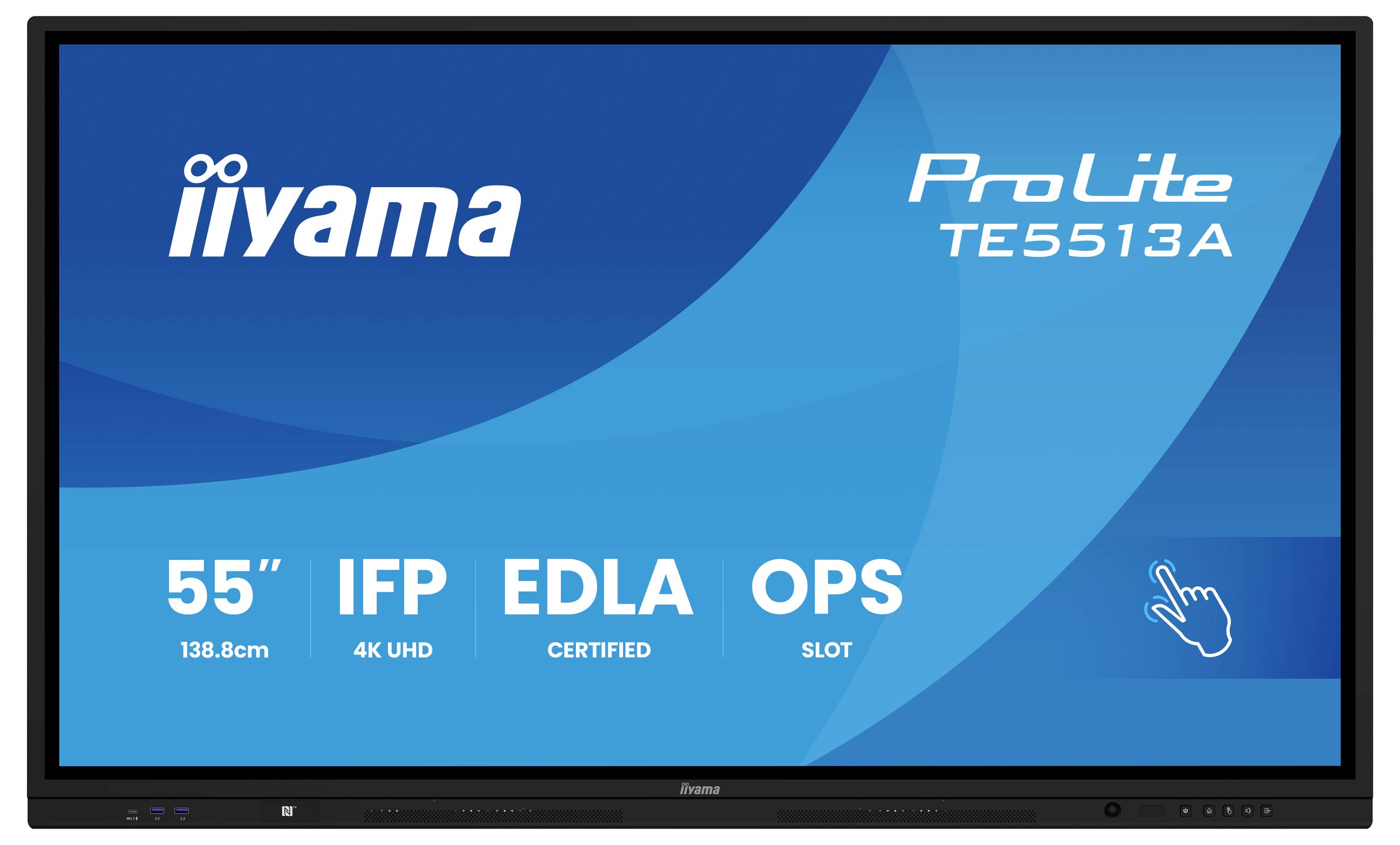

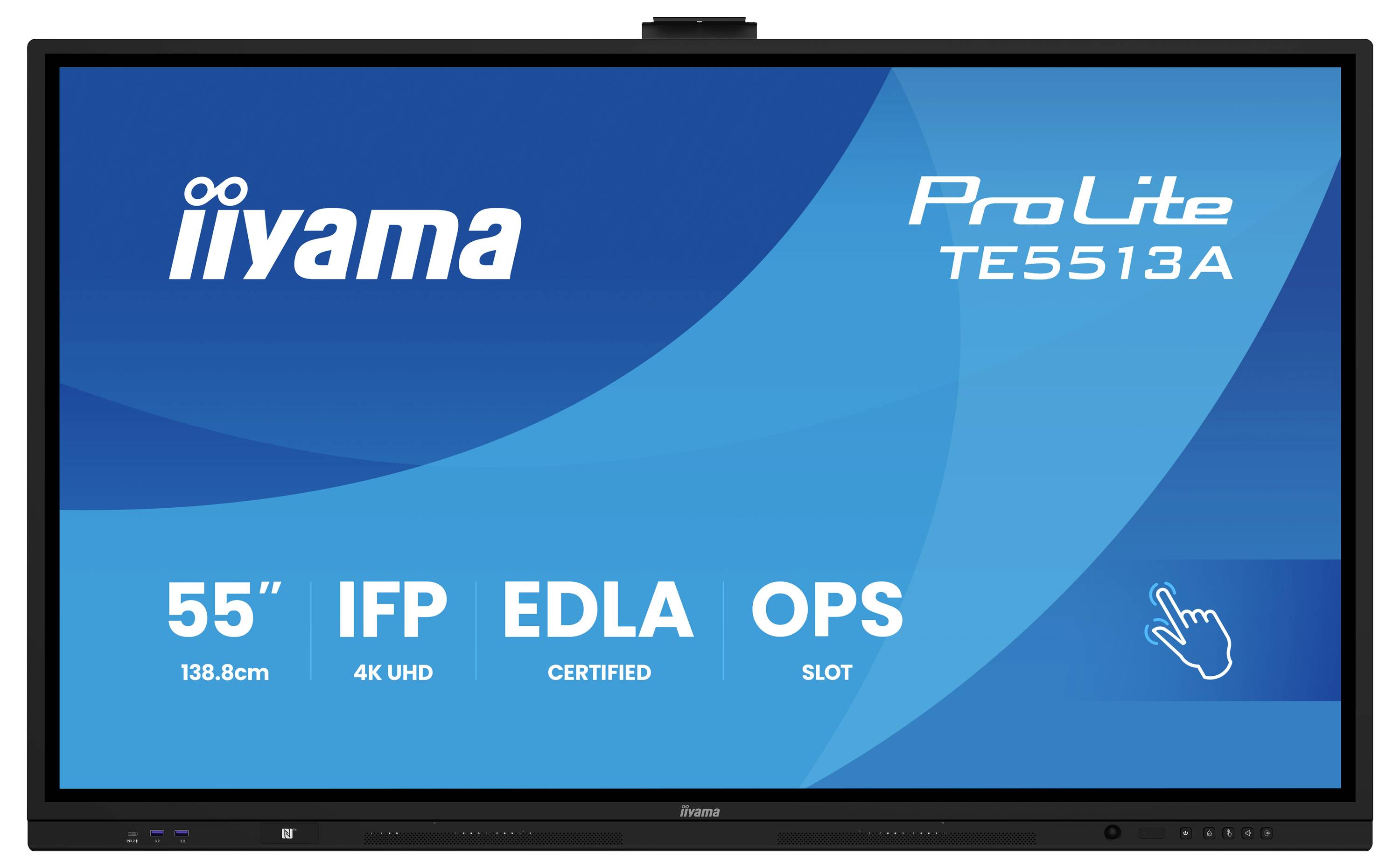

The TE5513A-B2AG is a state-of-the-art interactive 4K UHD display with Google EDLA certification that redefines performance and precision. Equipped with a Zero-Gap Air Bonding LCD screen for eliminating parallax of movement and PureTouch IR+ with palm detection, it provides for a smooth and precise interaction. Powered by iiWare 21E with Android 14-EDLA, WiFi-6E with Bluetooth 5.0 connectivity, iControl (DMS), iShare & Eshare (wireless screen sharing), it integrates seamlessly into your ecosystem. Enjoy additional features such as a PIR motion sensor for more energy efficiency - Ideal for workplaces and educational facilities, as it promotes collaboration, communication and progress.
