Name: Iiyama IIYAMA Floor supported wall lift MD-WLIF TV lift mount 1 Display(s) White
Brand: Iiyama
SKU: 3796671

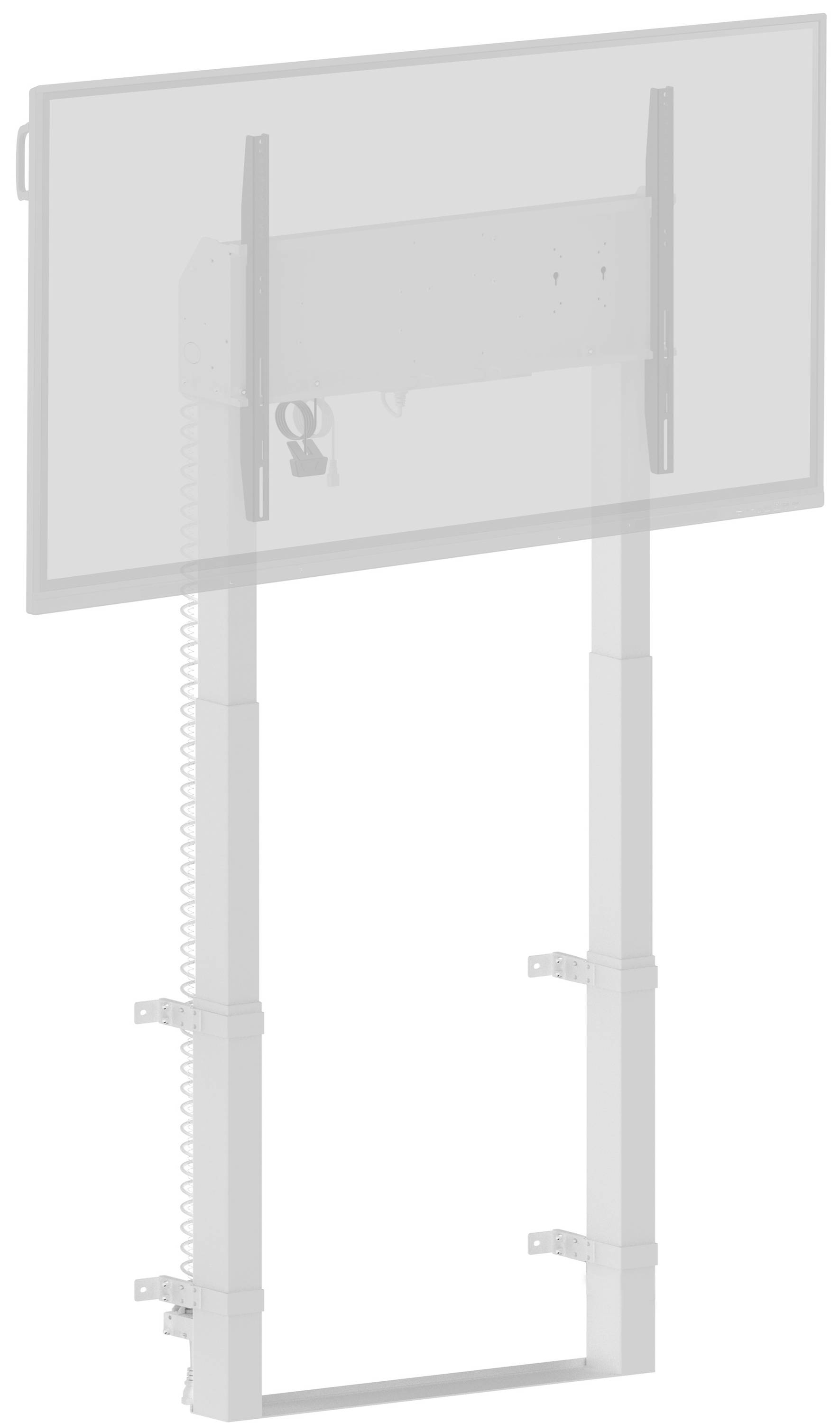

Wall-mounted adjustable TV bracket with two vertical support poles and a large mounting plate for a flat-screen television.

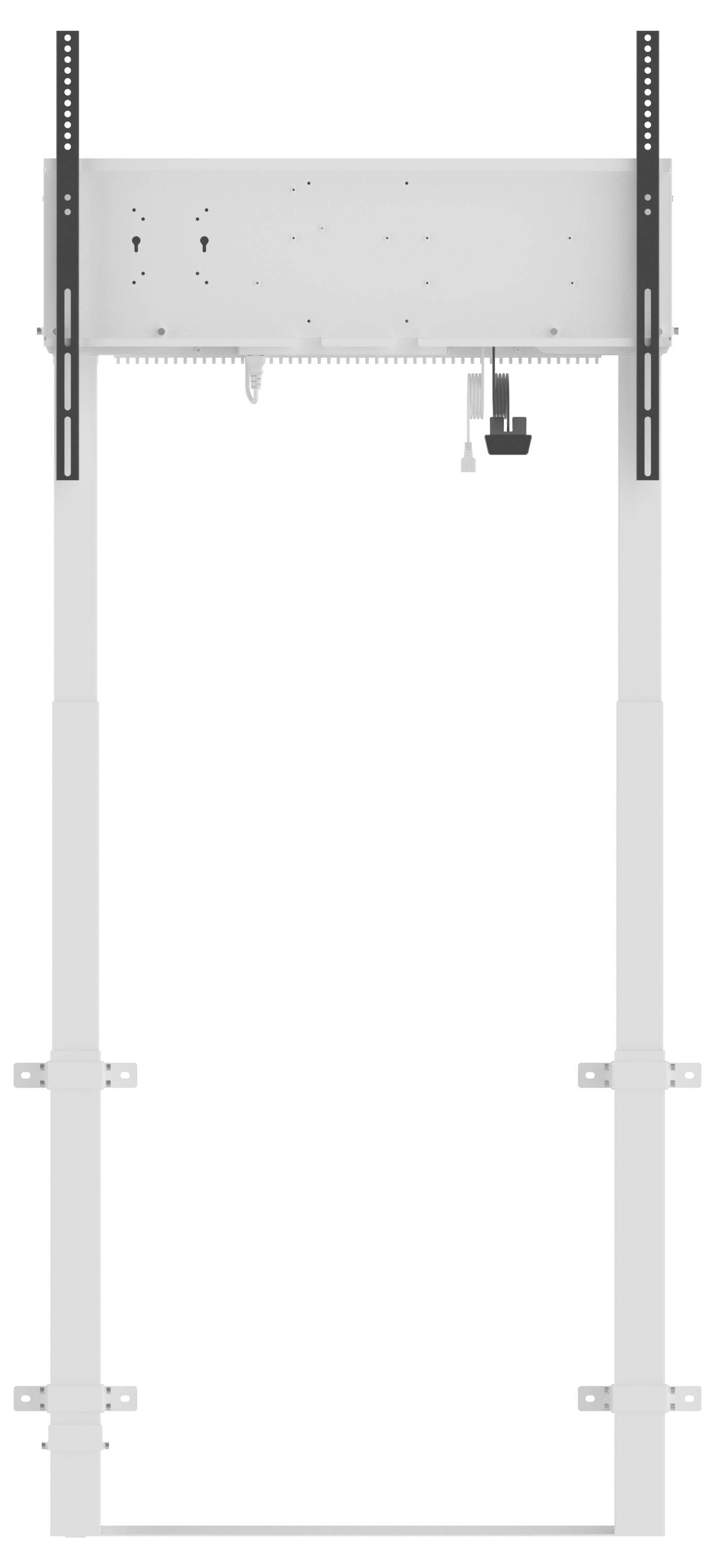

A simple front view of a metal frame or lift structure with two tall side posts, a top crossbeam, and a hanging component near the upper right.

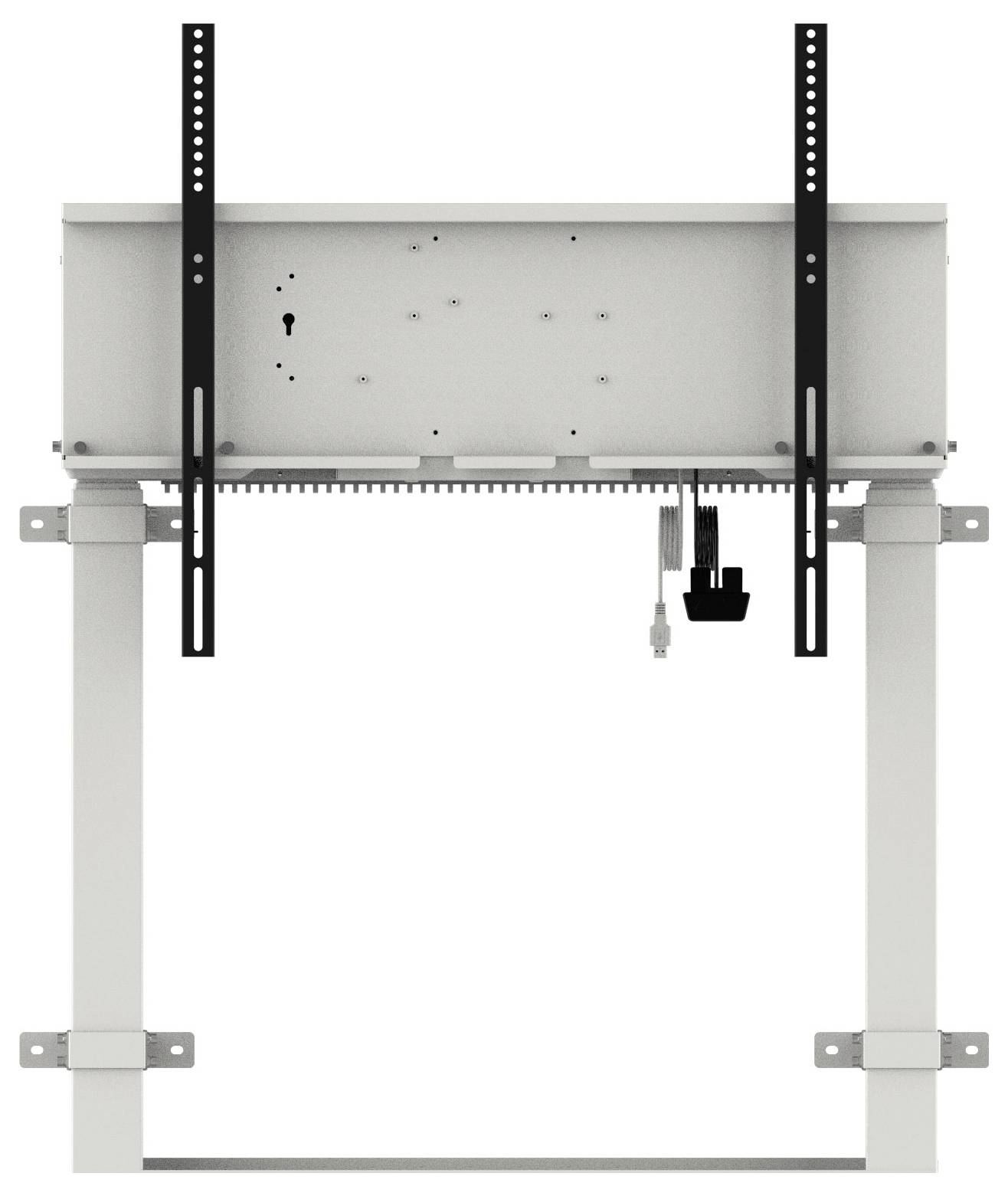

Metal wall-mounted TV bracket with two vertical support rails and adjustable side arms on a white background.

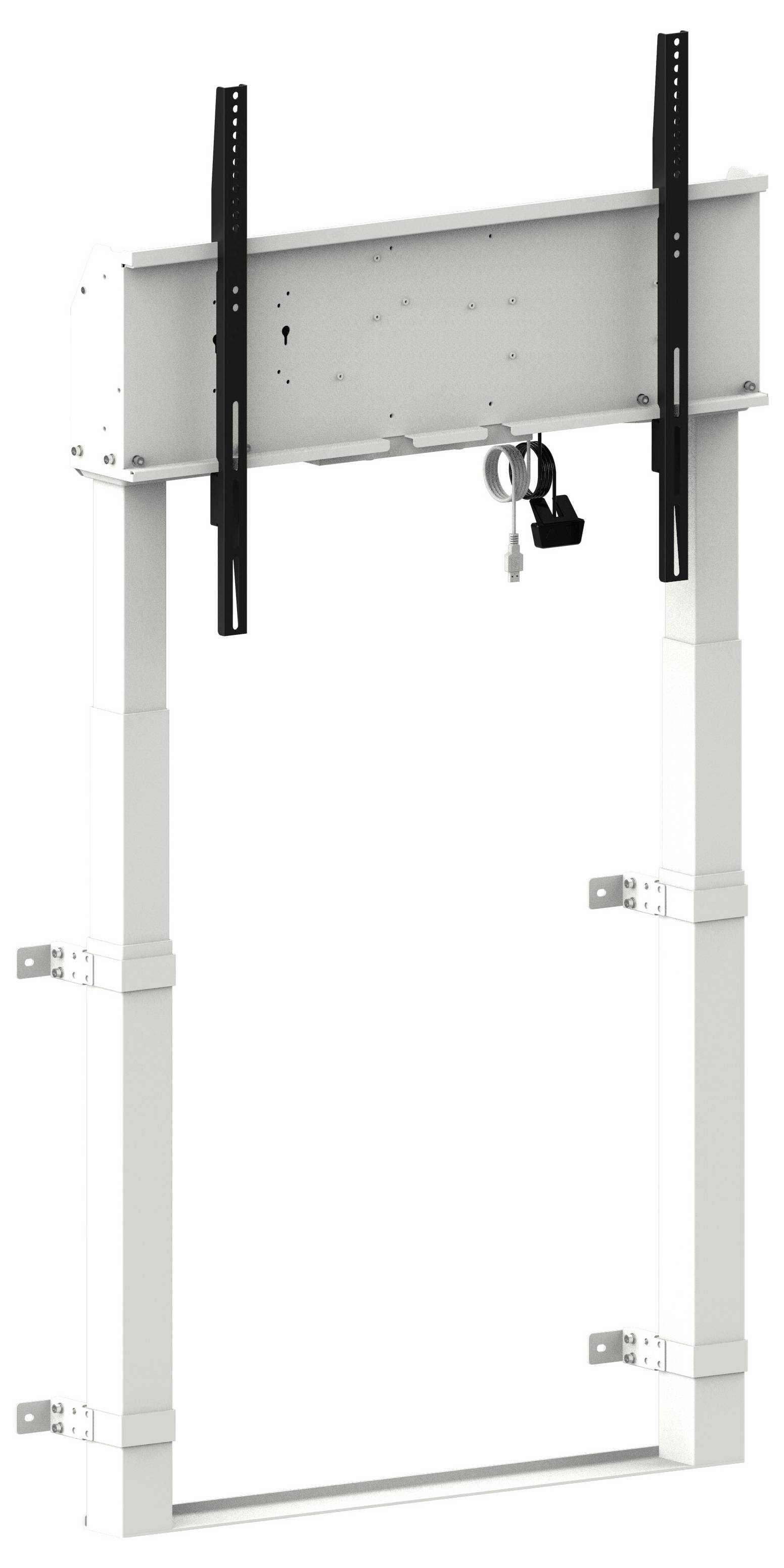

Adjustable metal mounting frame with two vertical rails and a hanging lock, likely for a wall or TV installation.

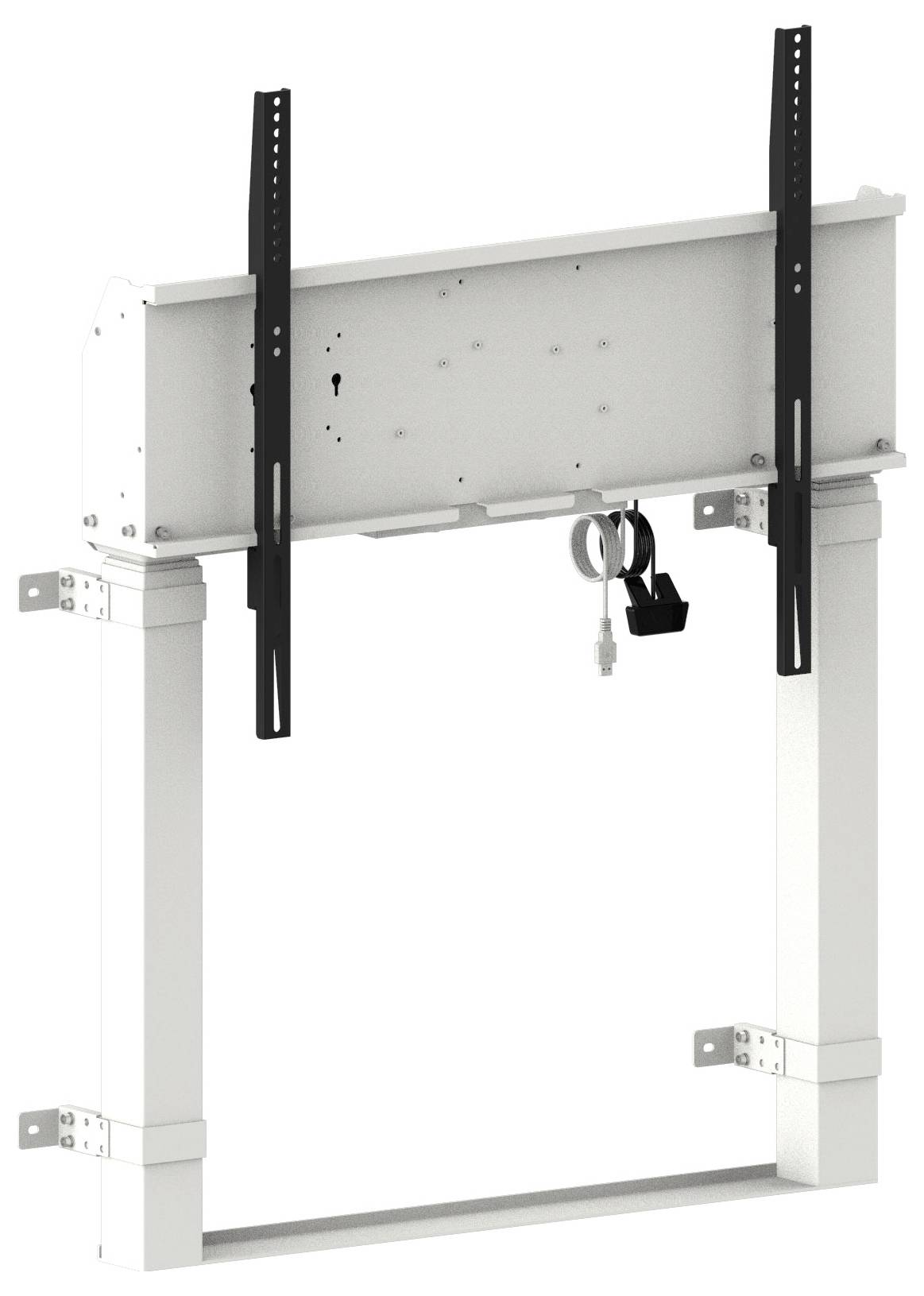

Wall-mounted TV bracket with two vertical rails and a white support frame, showing the mounting hardware and lock mechanism.

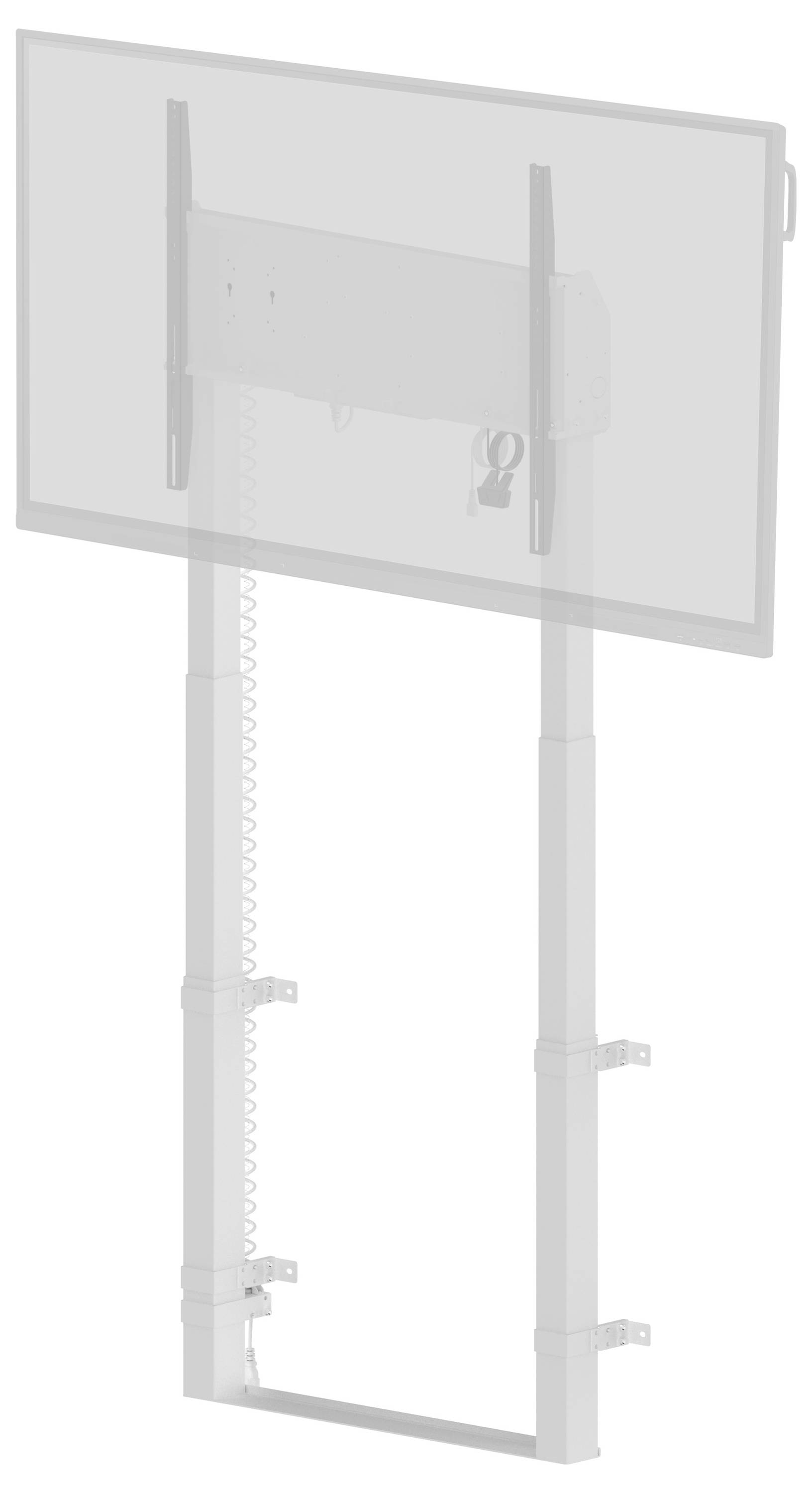

Wall-mounted TV bracket with two vertical support rails and adjustable mounting arms shown in side view<br>

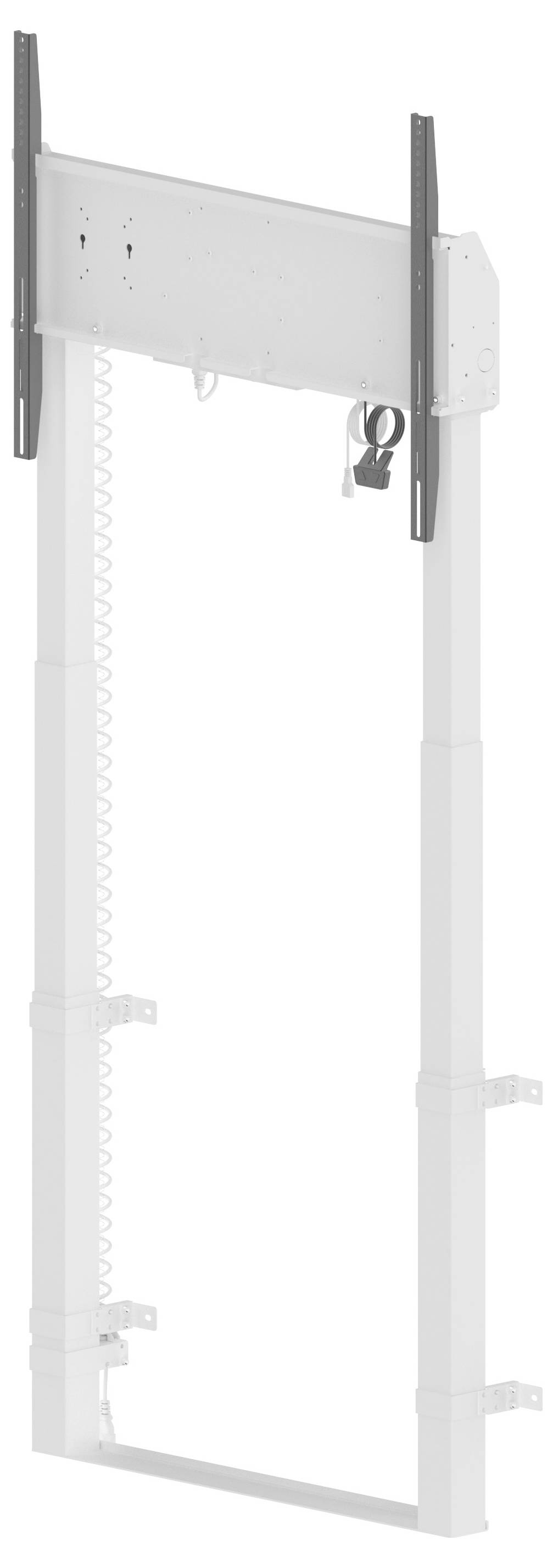

A wall-mounted pulley and cable lift frame with two vertical rails and a horizontal crossbar, shown in a light gray product-style image.

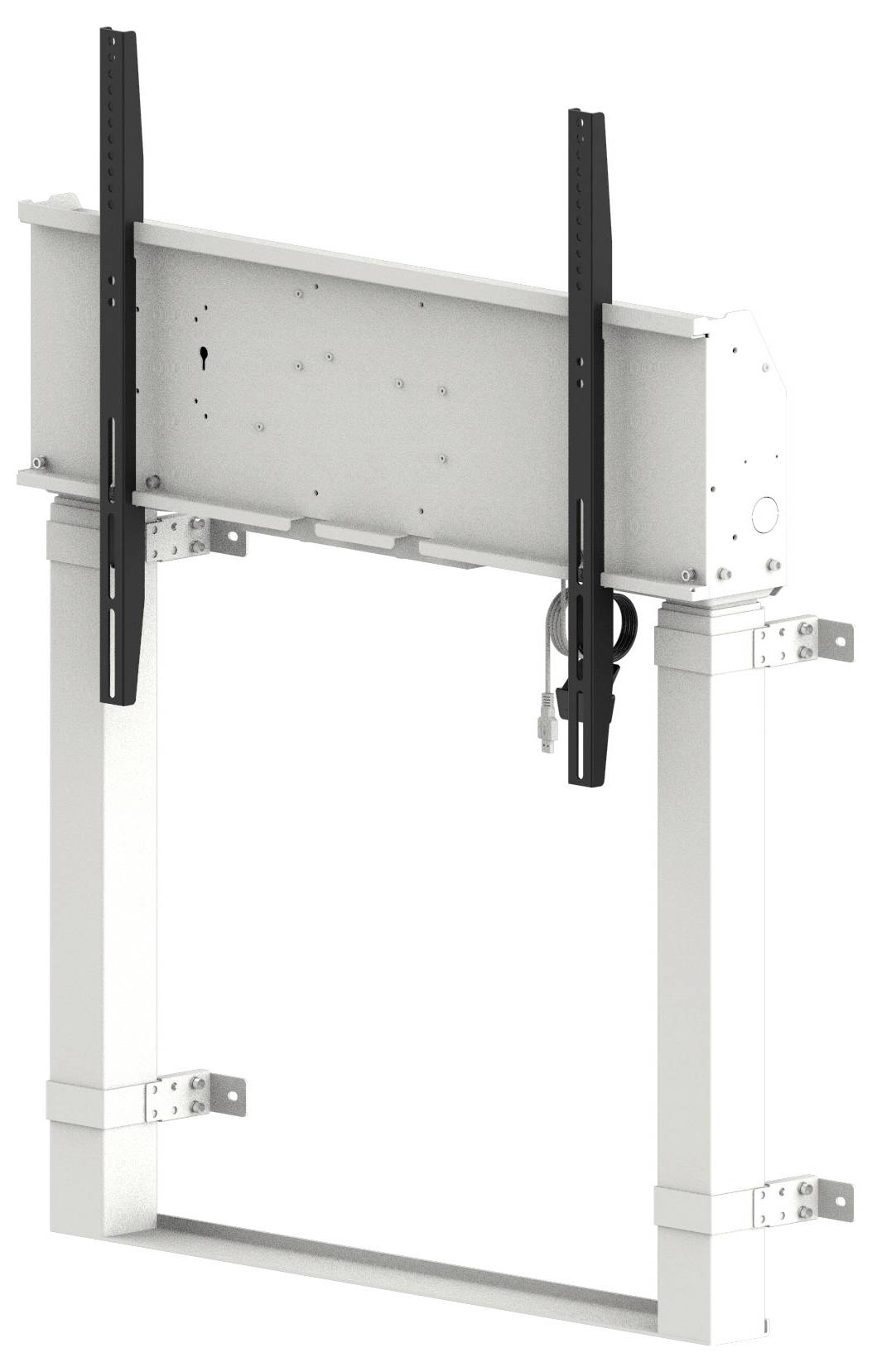

Wall-mounted TV bracket with two black vertical rails attached to a white support frame.

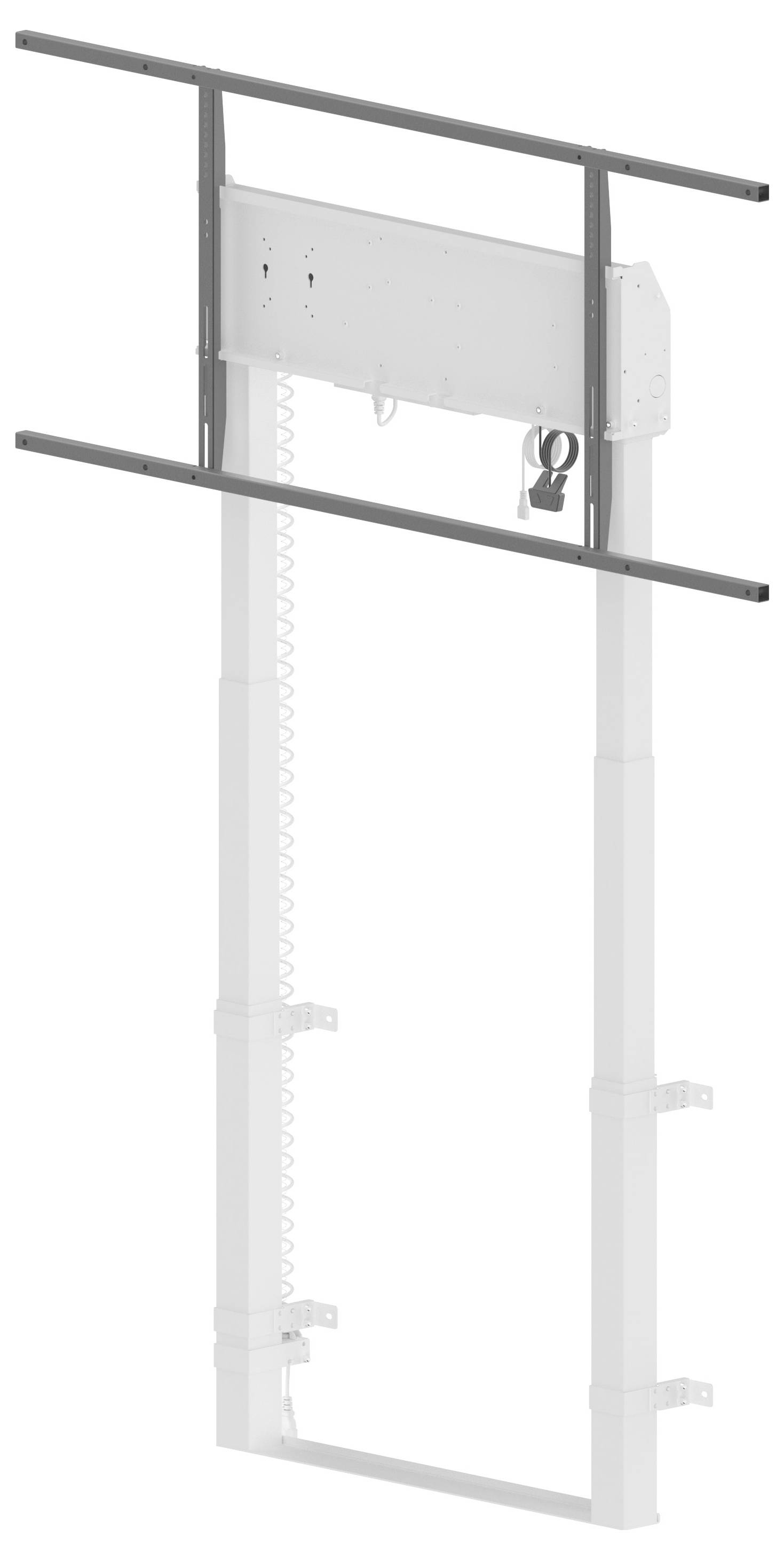

Wall-mounted TV lift mechanism with two horizontal mounting bars and vertical support columns, shown isolated on a white background.

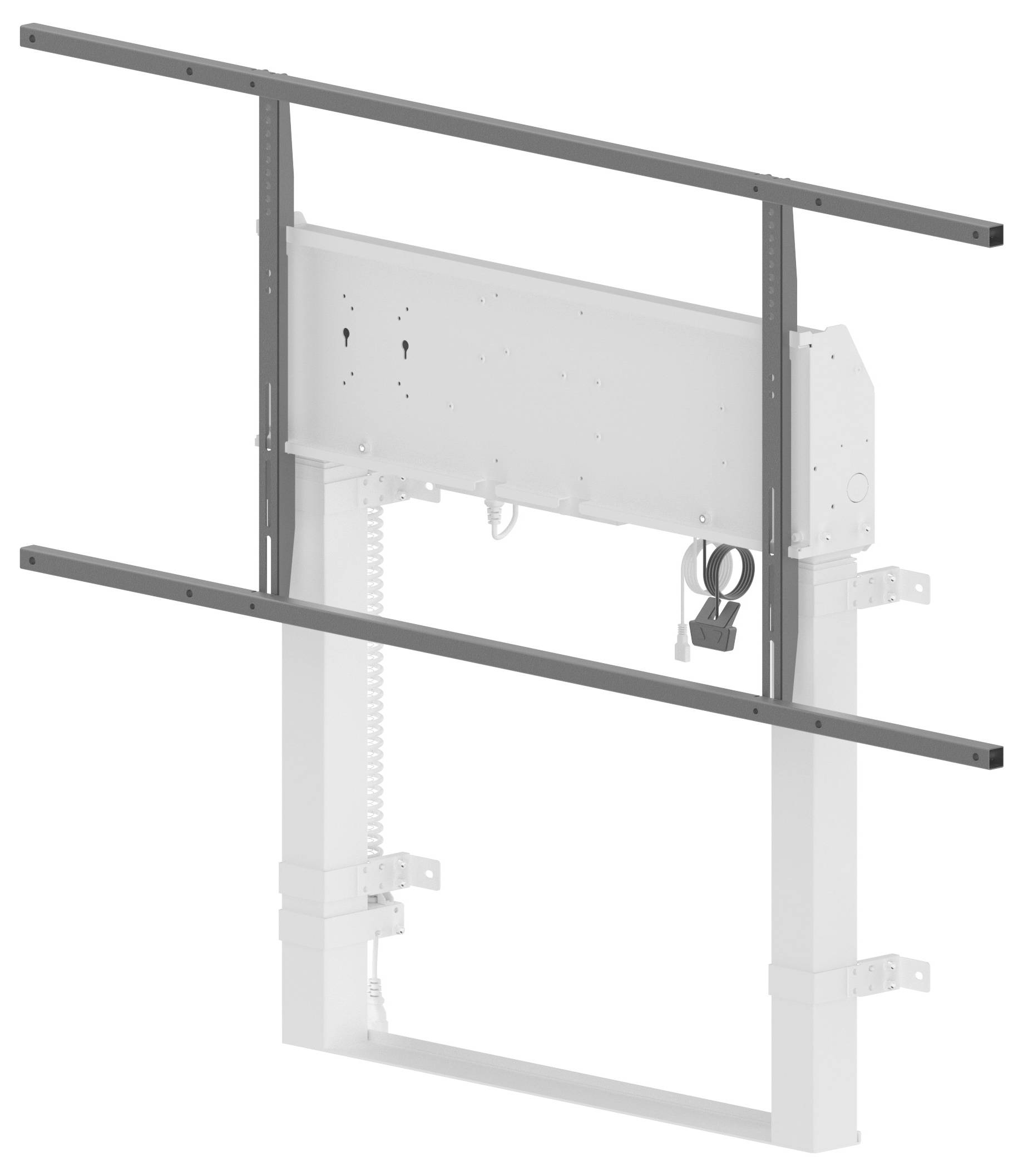

Wall-mounted sliding TV lift mechanism with two dark horizontal support rails and a central motorized lift frame.

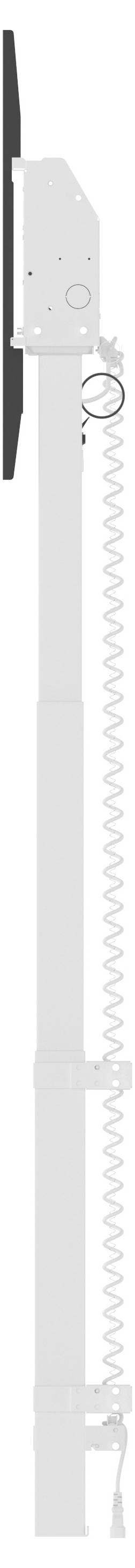

A vertical white wall-mounted safety device with a long hanging cord and a small attached clip or handle.

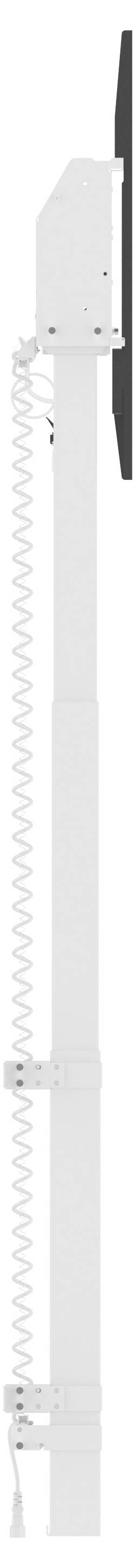

Side view of a white wall-mounted device with a long black circular front panel and a coiled white power cord hanging below.

Side view of a white outdoor antenna or wireless device mounted on a pole, with a black circular dish or panel attached at the top.

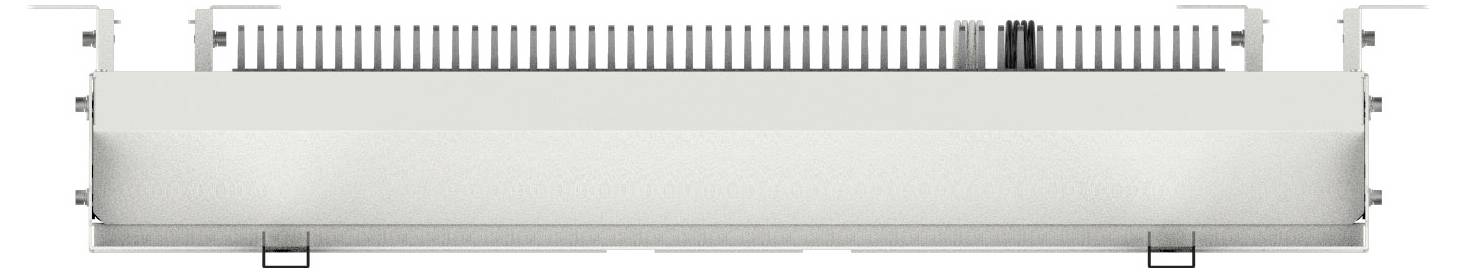

A silver metal rack-mount server chassis with an open top and rows of ventilation slits along the back edge.

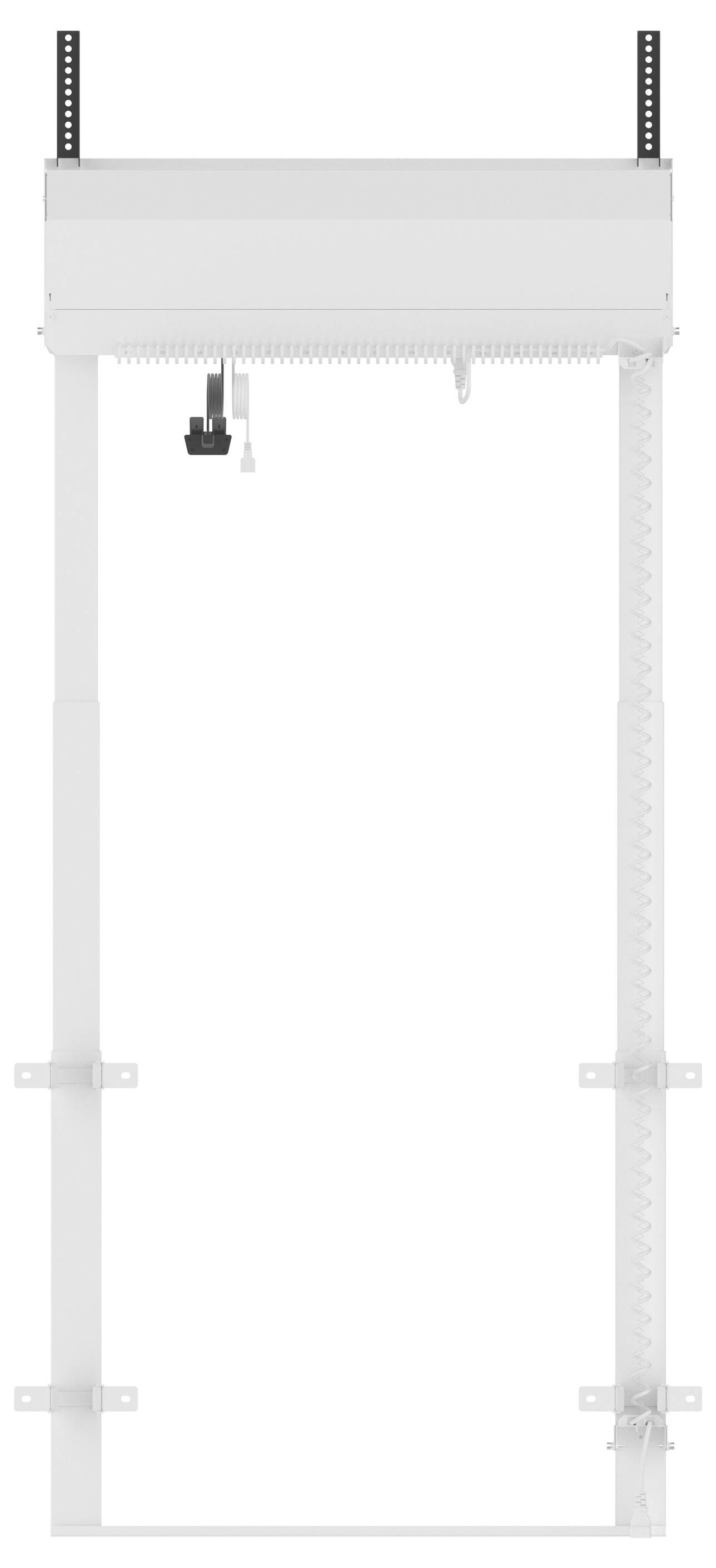

White wall-mounted frame or lift mechanism with two vertical rails and adjustable brackets, shown front view on a plain background.

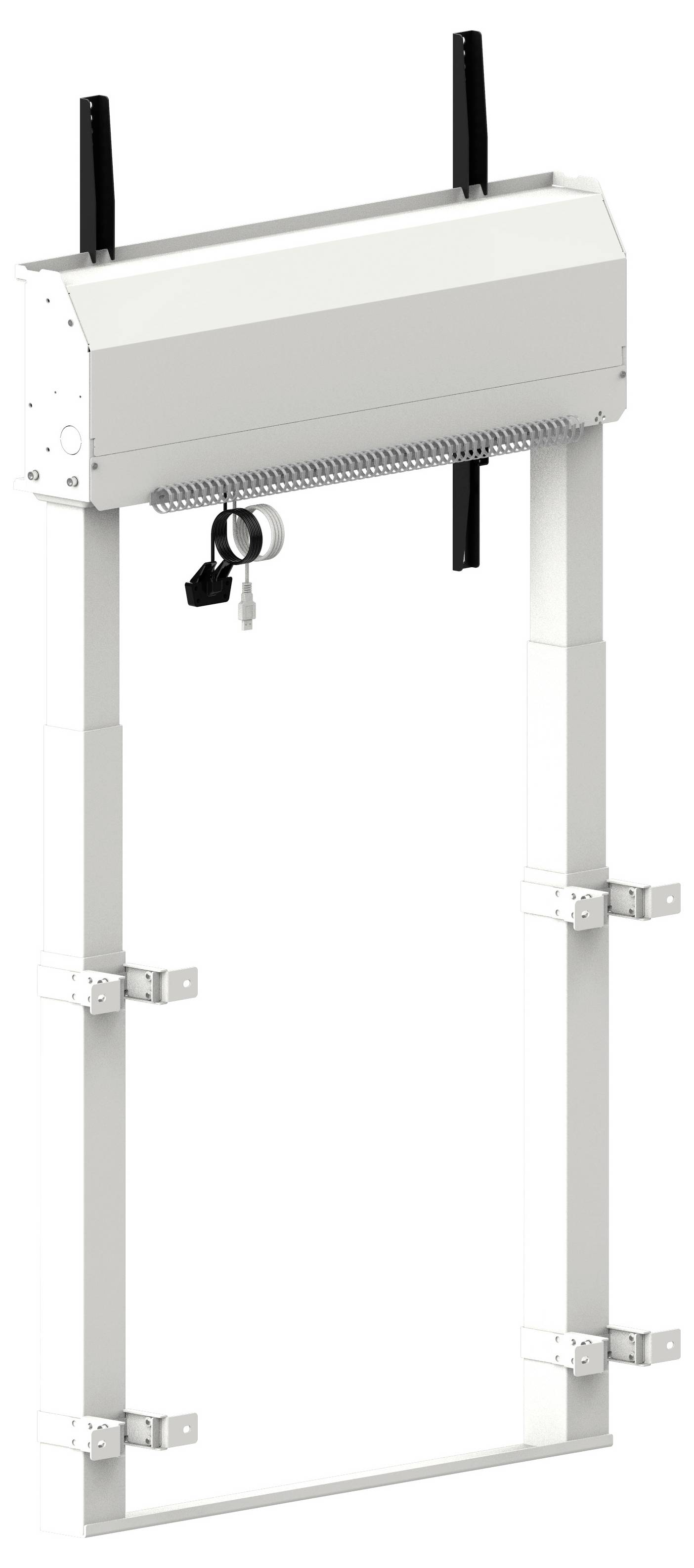

White adjustable metal mounting frame with two vertical posts, clamps, and a top housing, shown isolated on a white background.

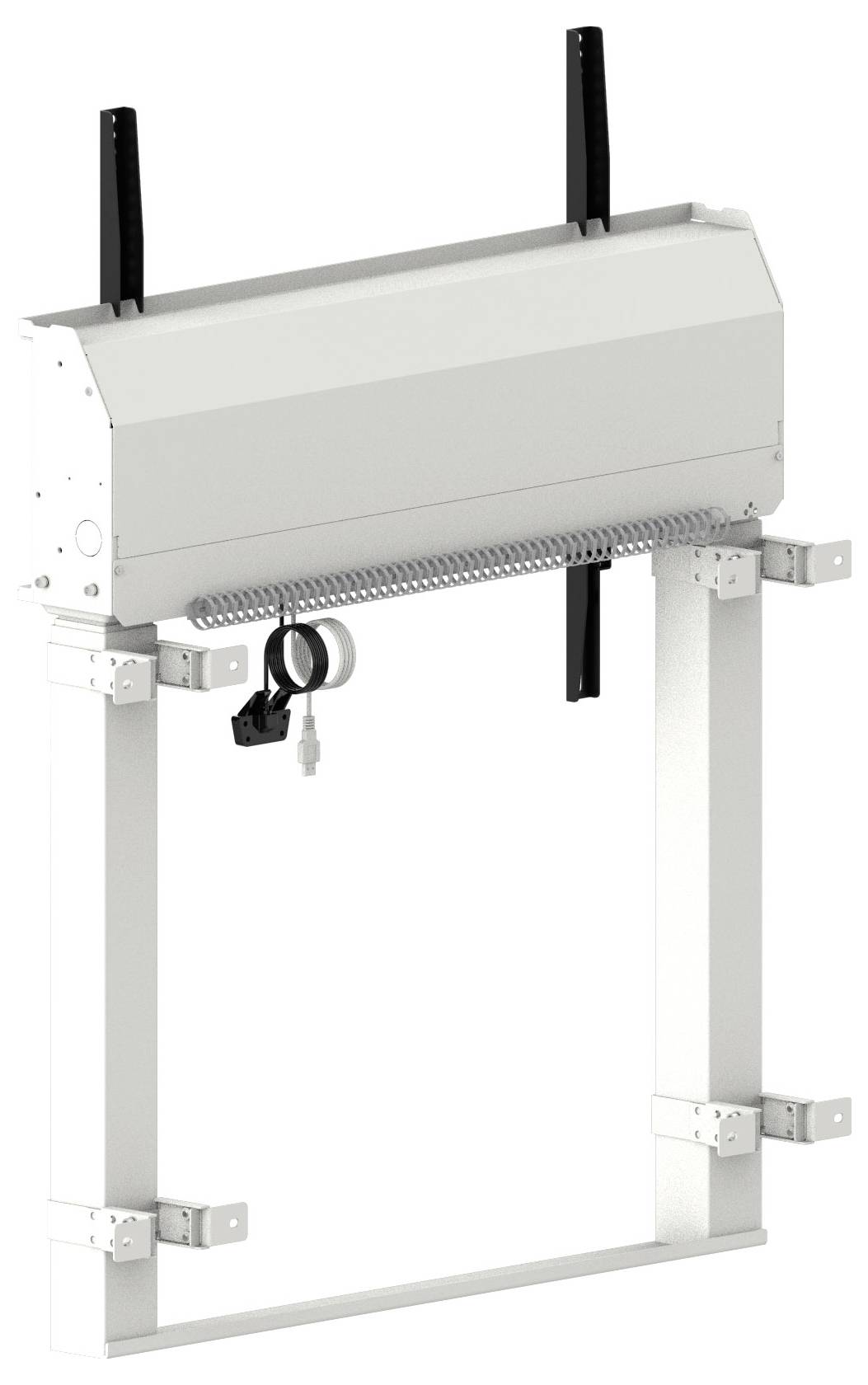

Wall-mounted rectangular mechanical enclosure with two vertical black handles, support legs, and a hanging lock/key assembly.

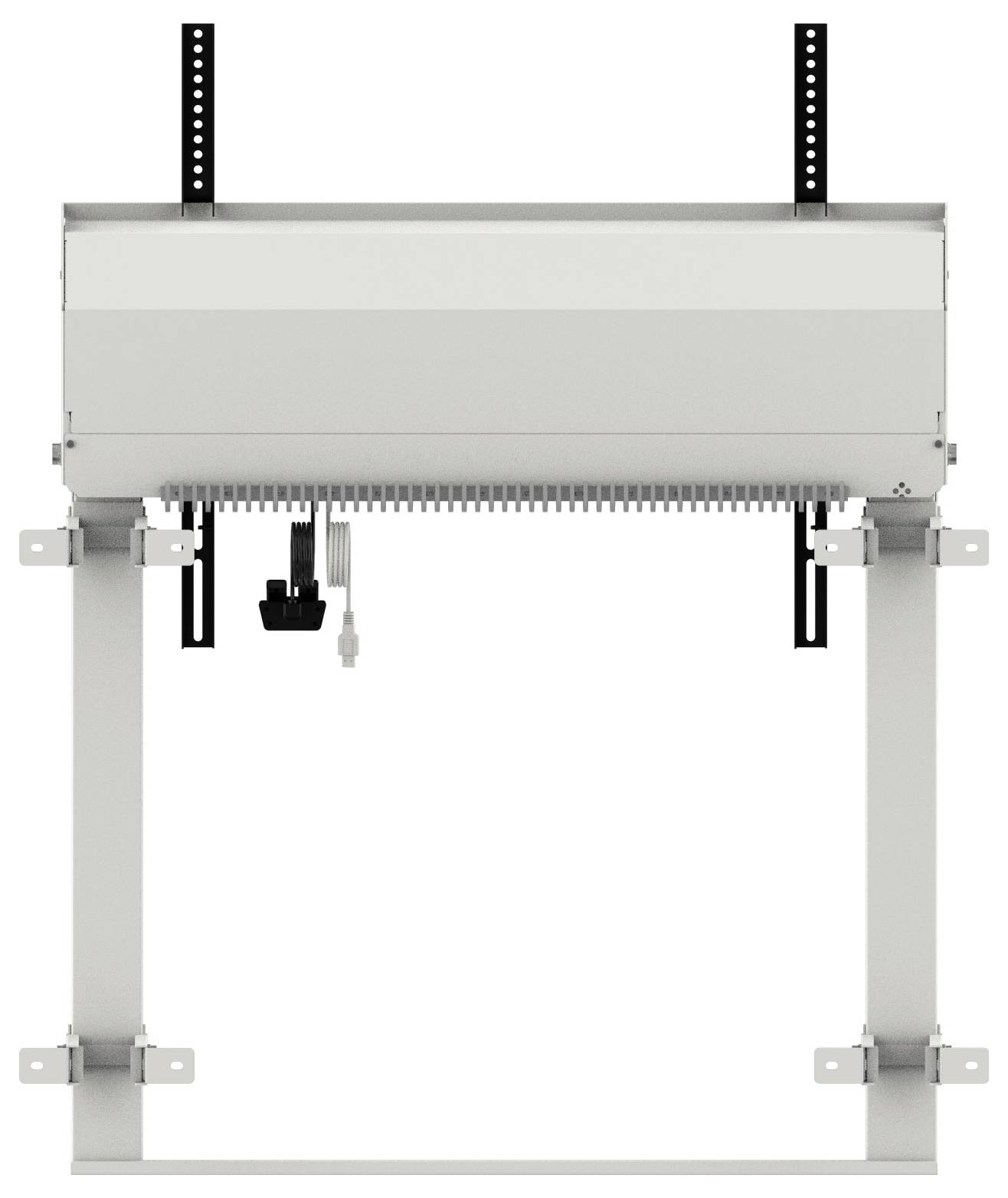

Rear view of a wall-mounted flat-screen TV bracket with adjustable vertical rails and support legs on a white background.

1/18

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Iiyama MD-WLIFT2031-W1 flat screen desk mount 2.67 m (105") hallway white

Supports VESA standards up toLoad capacity (max.) 120 kg

Technical specifications

Minimum screen size: 139.7 cm (55")
Maximum screen size: 2.67 m (105")

Product type: TV lift mount

Add-on displays: 1 Display(s)

: No

Max. load capacity: 120 kg

: No

: 800 x 600 mm

Width: 886.9 mm

Height: 1770 mm

Depth: 178.6 mm

Factory colour: White

Weight: 35.4 kg

Dim: (W x H x D) 886.9 x 1770 x 178.6 mm

Supported monitors: 1

Height adjustment range: 812 - 1762 mm

Height adjustment: yes

Maximum weight capacity (per display): 120 kg

Package weight: 38 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3796671 Iiyama IIYAMA Floor supported wall lift MD-WLIF TV lift mount 1 Display(s) White

Description

This electric, stationary pylon system, suitable for mounting on the floor or on the wall, is a perfect solution for displays from 55" to 98". It is suitable for displays with a mounting up to VESA 800x600 mm and with a maximum weight of 120 kg. Due to easy installation with "Pull & Release" holders and a wired remote control, it is suitable for Ideal for class and conference rooms. This pylon system fits perfectly with the Iiyama TE12, TE14 and TE18 series IFP - Interactive displays. It enables to control the height of the display and store 2 height presets, so that different users can quickly adjust the screen position according to their needs. *To mount a 105" display, you will need the additional MD-ADAP001 mounting kit
