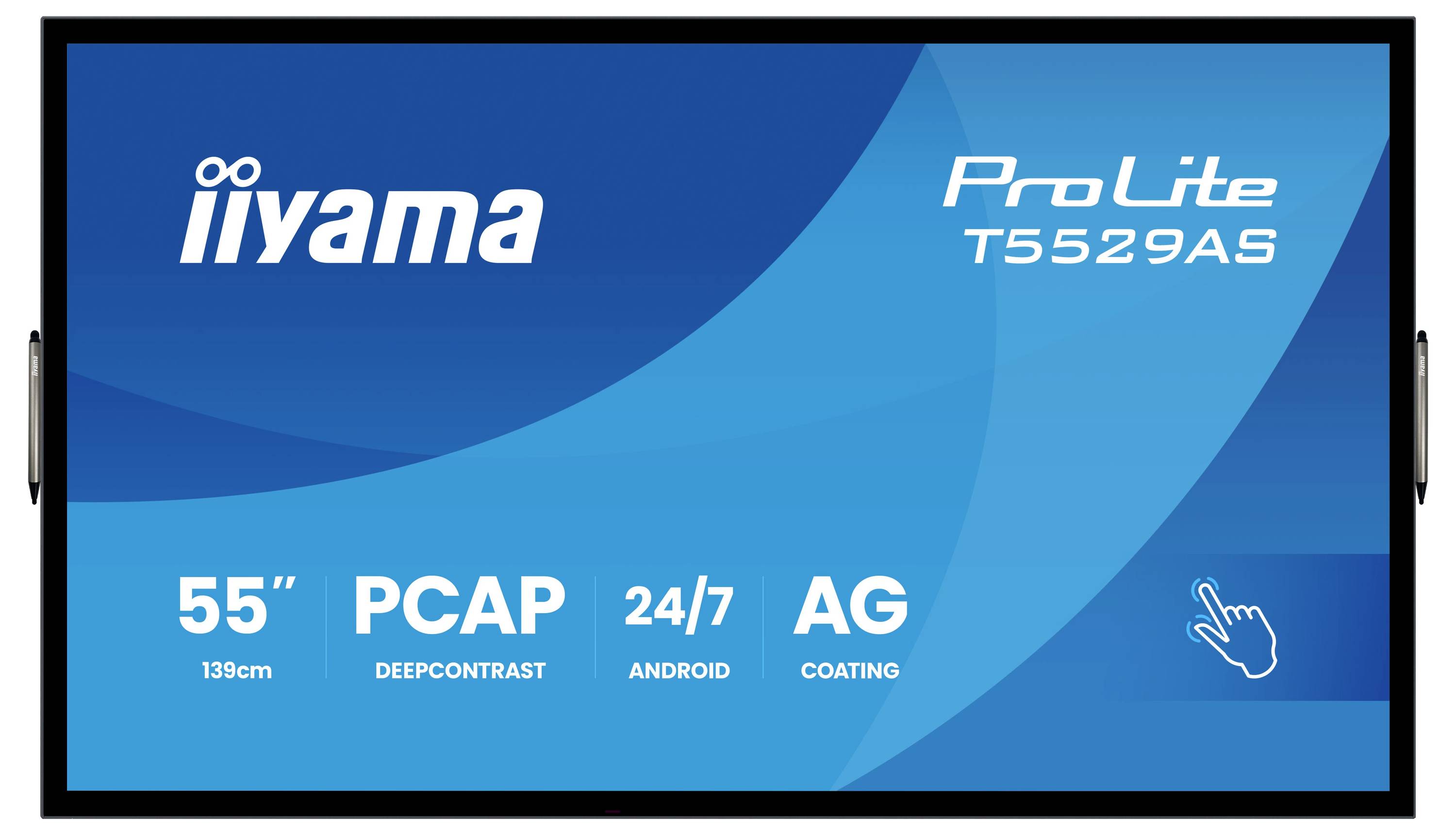

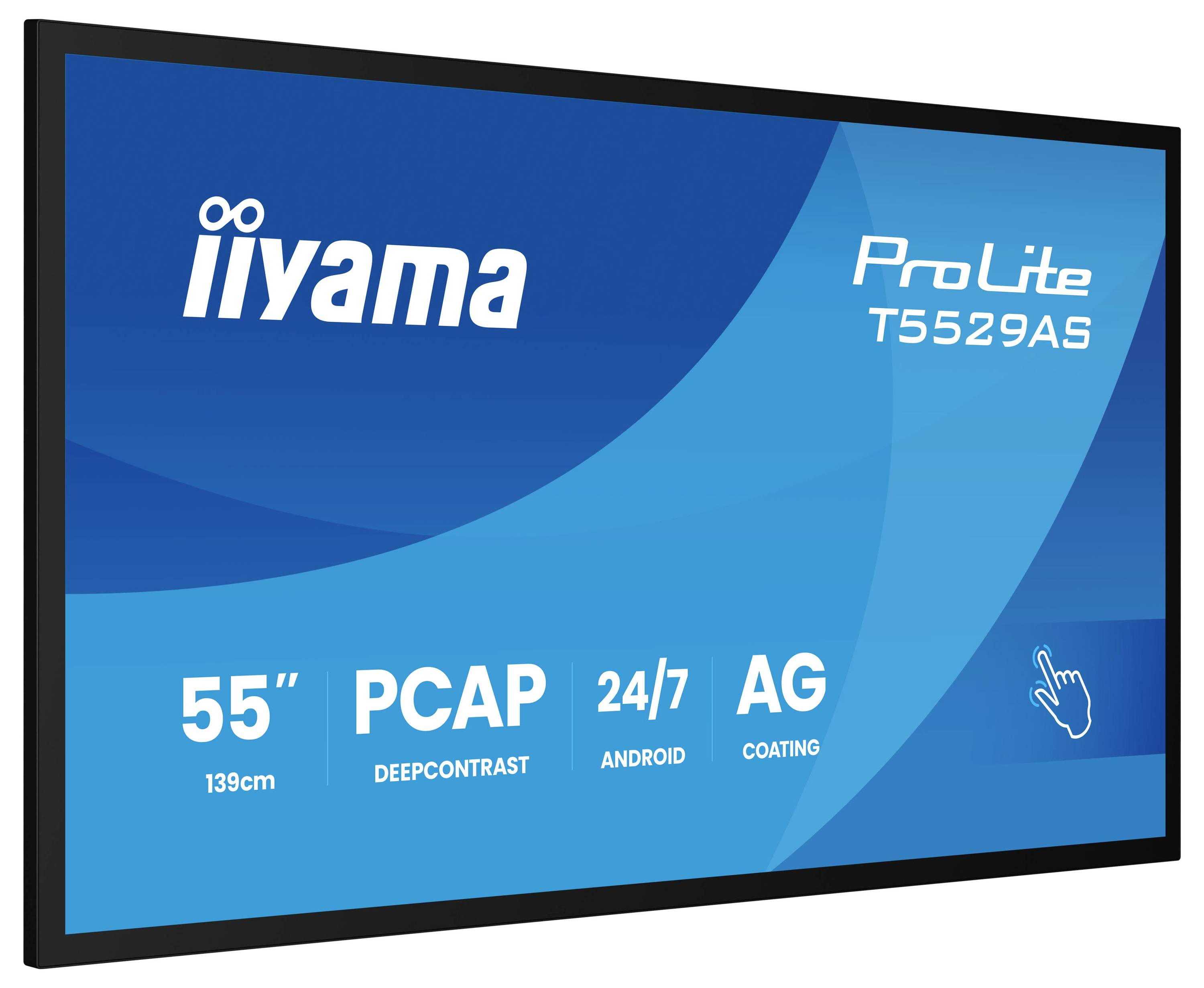

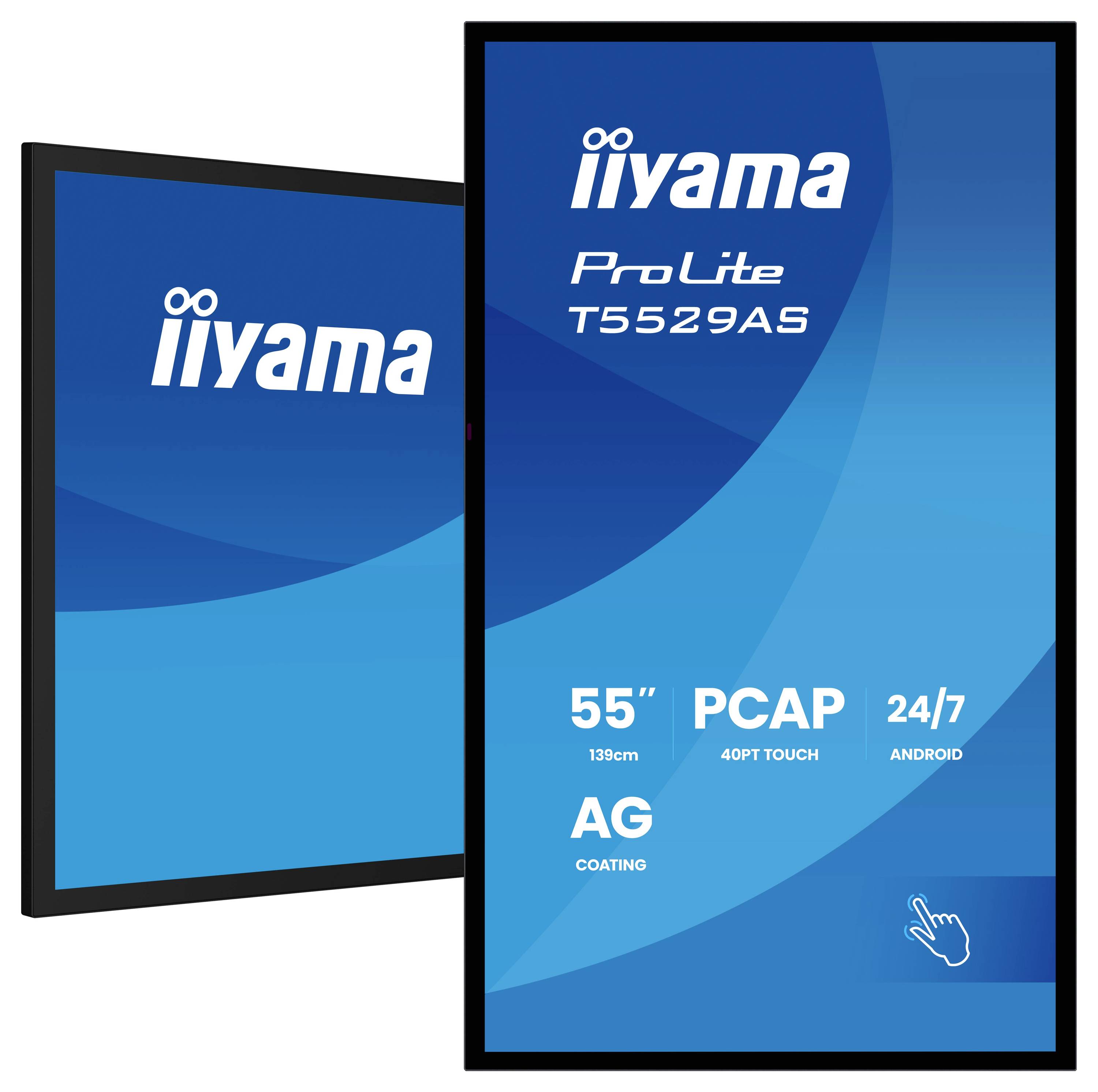

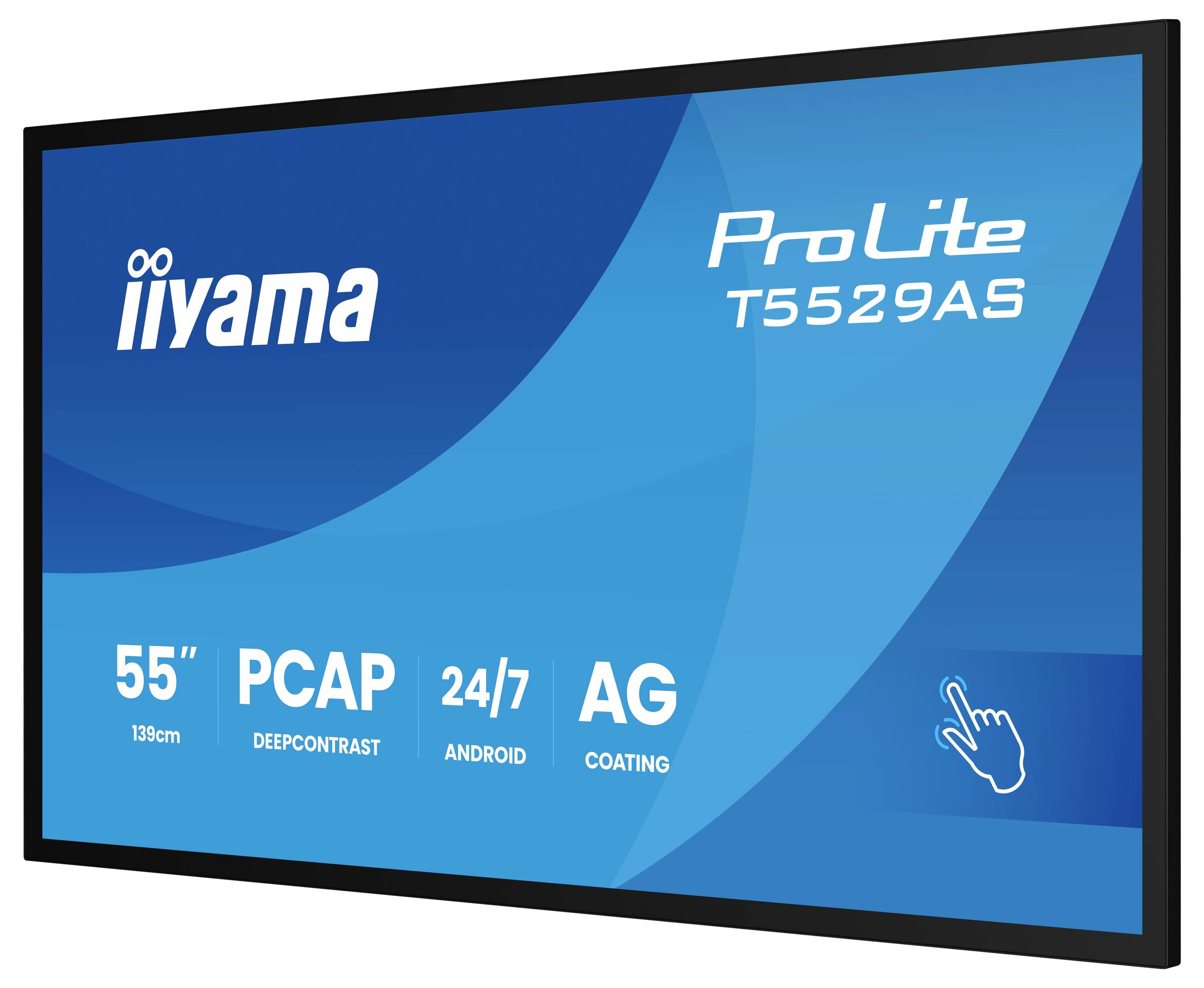

Iiyama ProLite Digital signage display EEC: G (A - G) 138.7 cm (54.6 inch) 3840 x 2160 Pixel 24/7 Android™, Multi-Touch,
EAN:
Part number:
Item no:
Highlights & Details

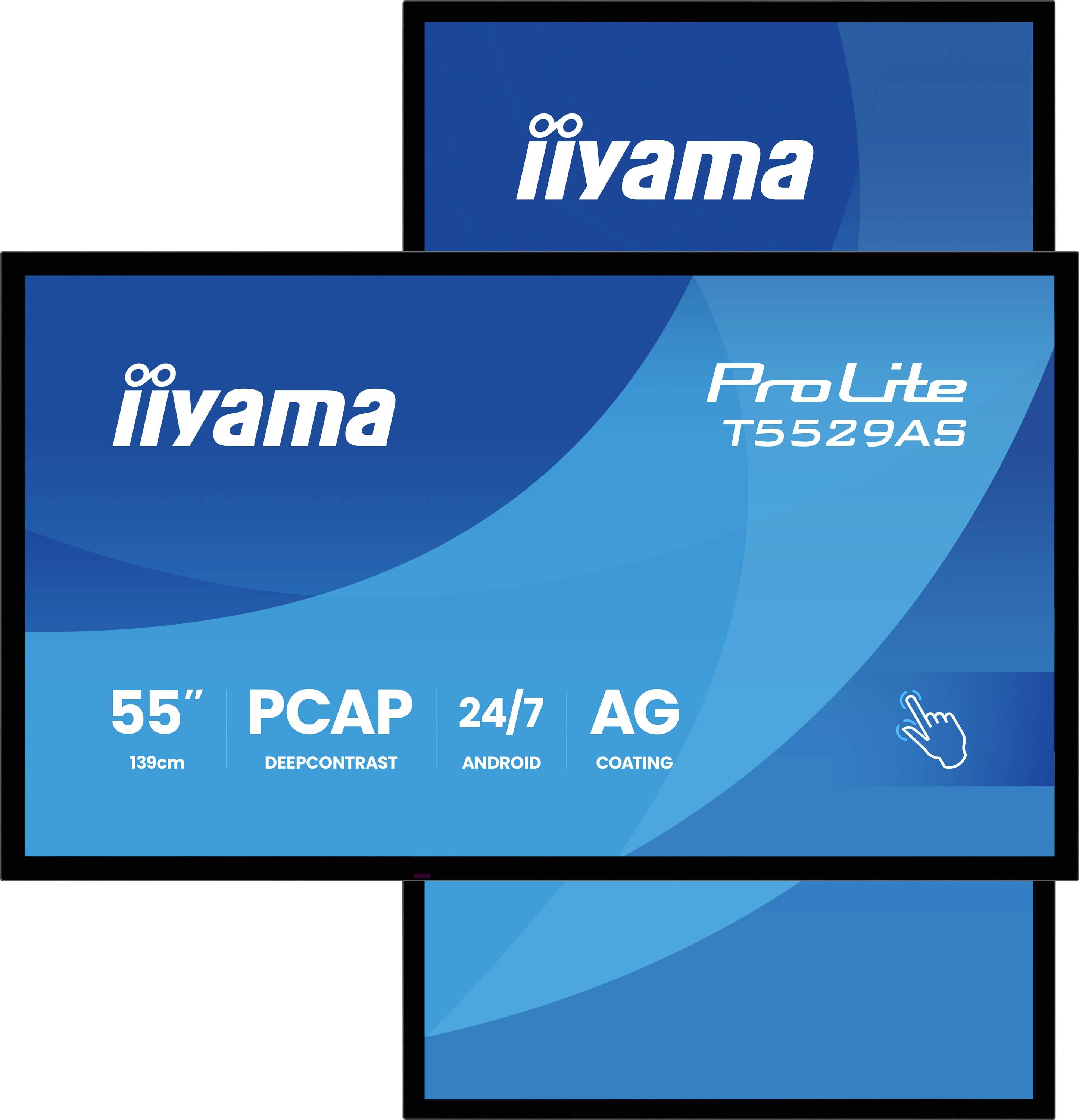

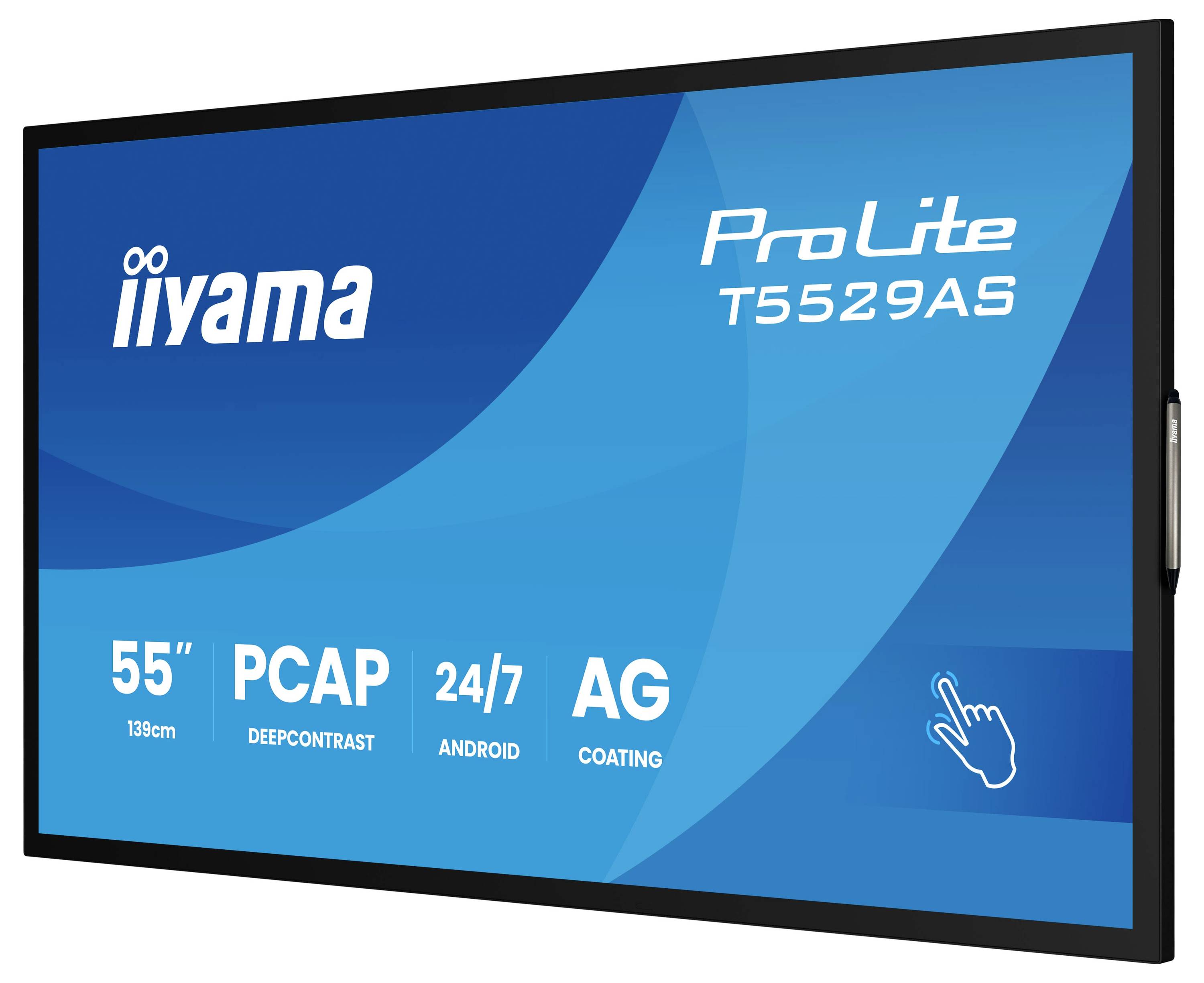

Iiyama T5529AS-B1AG Signage Display Interactive flat screen 138.7 cm (54.6") LED WLAN 500 CD/m² 4K Ultra HD black Touch screen Integrated processor Android 24/7
- Screen size 138.7 cm (54.6 inch)
- Display resolution: 3840 x 2160 Pixel
- Android™, Multi-Touch, Kiosk mode
- Operating time (console): 24/7
Technical specifications
- Panel type VA
- Screen technology: LED
- HD type 4K Ultra HD
- Contrast ratio 4000:1
- 0.315 x 0.315 mm pixel distance
- HDMI version 1.4/2.0
- USB version 2.0
- Supported positioning: Indoors
- Built-in graphics card model: ARM Mali-G51
- Installed operating system: Android™
- WLAN-standards Wi-Fi 5 (802.11ac)
- Product type
Digital signage display
- Features
Android™
Multi-Touch
Kiosk mode
- Display technology
LED
- Operating time (console)
24/7
- Brightness
450 cd/m²
- Static contrast ratio
4000 : 1
- Hor. viewing angle
178°
- Vertical viewing angle
178°
- Display resolution
3840 x 2160 Pixel
- Image format
16:9
- Response time
6.5 ms
- Network/internet function
WiFi
LAN
- Wi-Fi
built-in
- Controller
Touchscreen

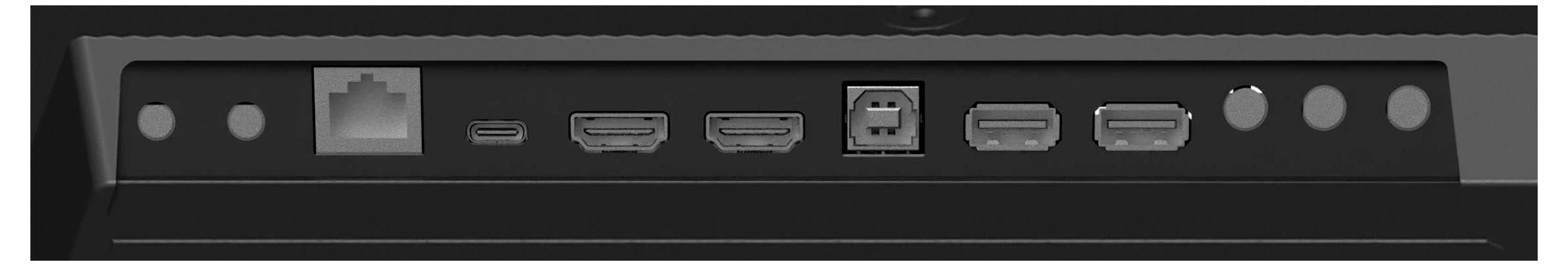

- No. of HDMI connections
2
- No. of USB ports
2 x

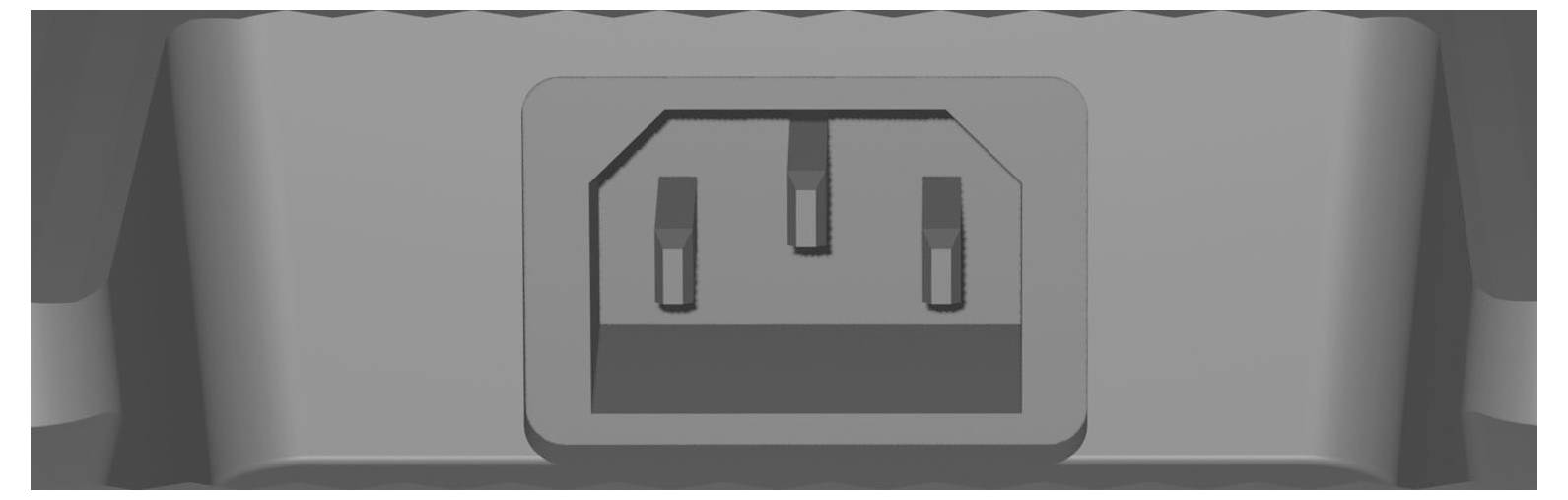

- Power supply (details)
100 - 240 V
- Power consumption (standby)
0.5 W
300 x 400 mm
- Factory colour
Black
- Width
1258.2 mm
- Height
728.8 mm

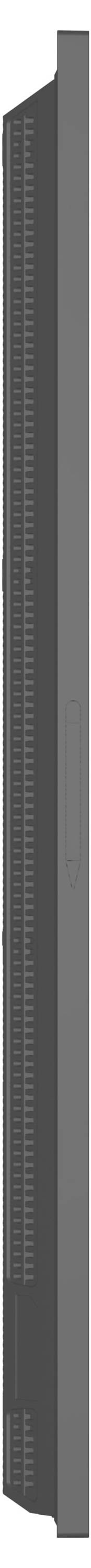

- Depth
42.3 mm
- Weight
26.8 kg
G (A - G)
- Dim
(W x H x D) 1258.2 x 728.8 x 42.3 mm
- Display
138.7 cm (54.6 inch)
- Display (cm)
138.7 cm
- Screen size diagonal (cm)
139 cm
- Screen size diagonal (inches)
54.6 inch
- Power consumption (off)
0.3 W
- Power consumption (ON)
104 W
- Device depth (without stand)
42.3 mm
- No. of HDMI ports
2 x
- Processor cores (No.)
4 x
- Touchscreen (display)
Yes
- HDCP
Yes
- Memory capacity
32 GB
- Height (without base)
728.8 mm
- Weight (without base)
26.8 kg
- 10/100/1000 Mbps ports
1 x
- Audio power (max.)
20 W
- Brightness
500 cd/m²
- Type
internal
4 GB
- Wi-Fi
Yes
- UKCA
yes
- Anti-glare screen
yes
- Multi-touch
yes
- Operating temperature (T-T)
0 - 40 °C
- Number of simultaneous touchpoints
20
- Ethernet LAN
yes
- RS-232C
yes
- Active display area (W x H)
1209,6 x 680,4 mm
- Remote control included
yes

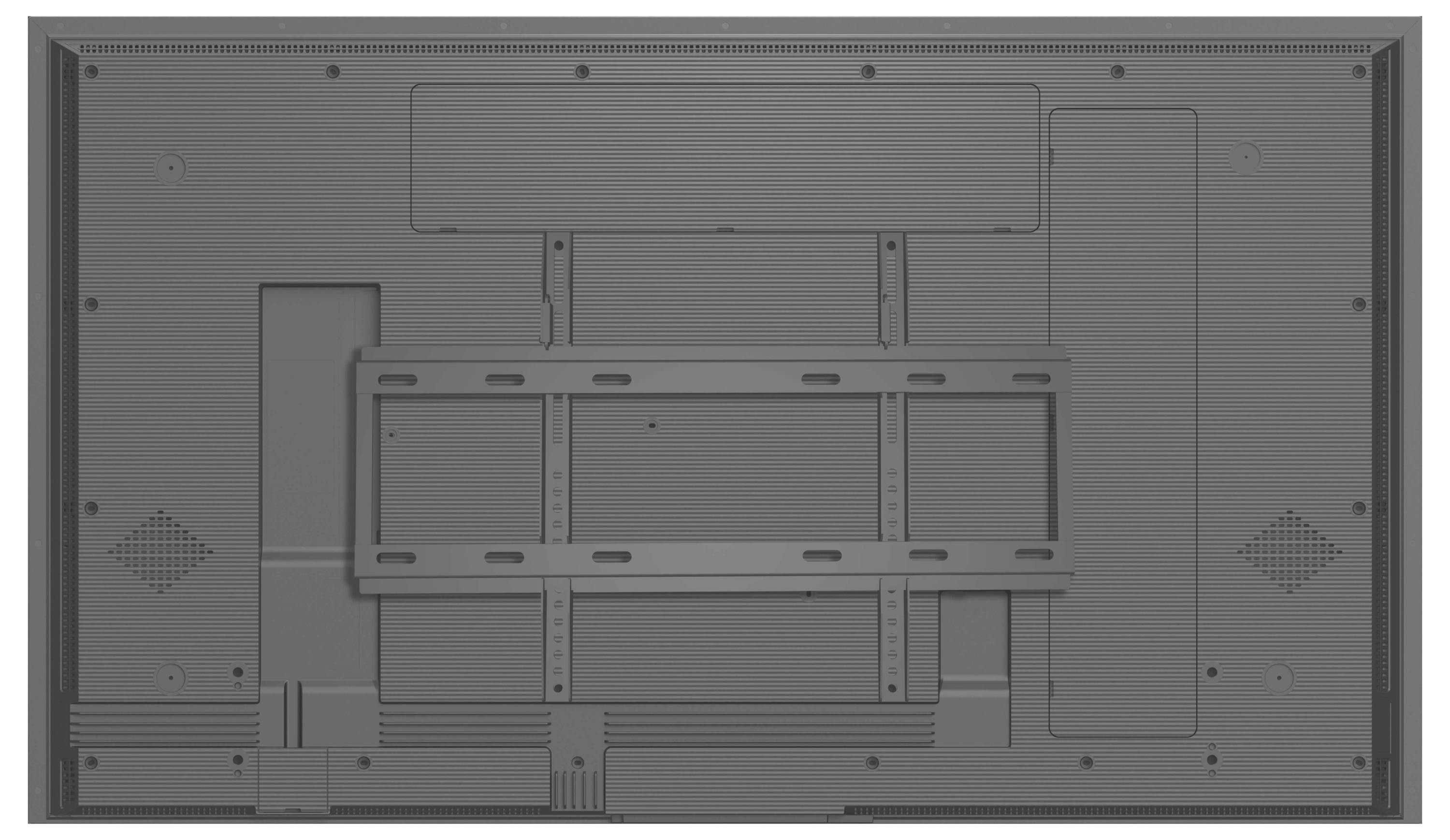

- VESA mounting
yes
- Number of built-in speakers
2
- DVI port
no
- USB port
yes
- Built-in speaker(s)
yes

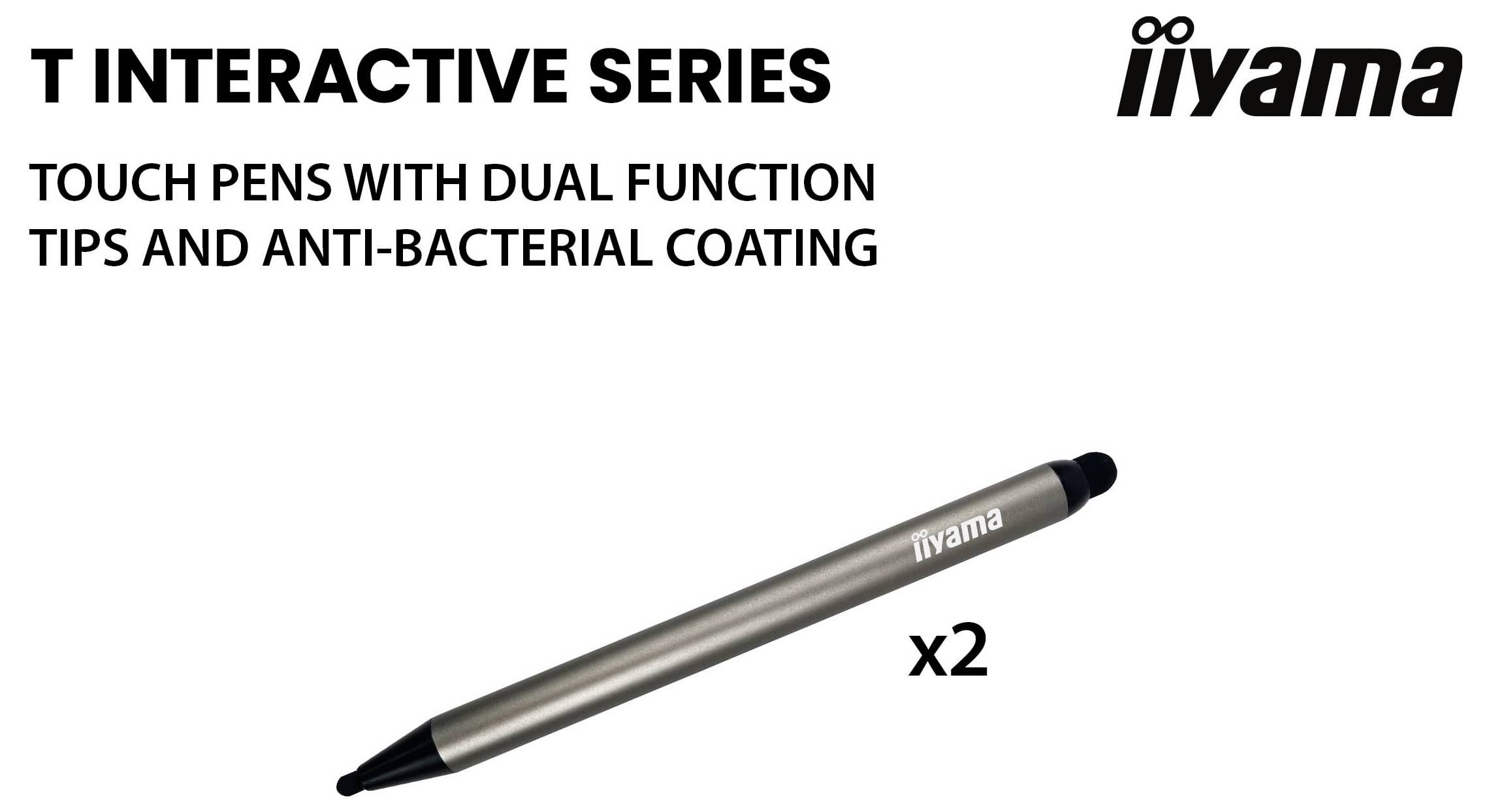

- Number of stylus pens
2
- On Screen Display (OSD)
yes
- USB Type-C DisplayPort Alternate Mode
yes
- Horizontal scan range
28 - 160 kHz
- Quick start guide
yes
- Batteries included
yes
- Mean time between failures (MTBF)
50000 h
- LED backlight
yes
- Operating relative humidity (H-H)
-20 - 60 %
- Number of OSD languages
8
- Package weight
32.7 kg
- Built-in processor
yes
- Stylus pen
yes
- Glass thickness
3.7 mm
- Remote (IR) input
1
- Remote (IR) output
1
- Viewable size, horizontal
121 cm
- Viewable size, vertical
68 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3644643 Iiyama ProLite Digital signage display EEC: G (A - G) 138.7 cm (54.6 inch) 3840 x 2160 Pixel 24/7 Android™, Multi-Touch,
Description

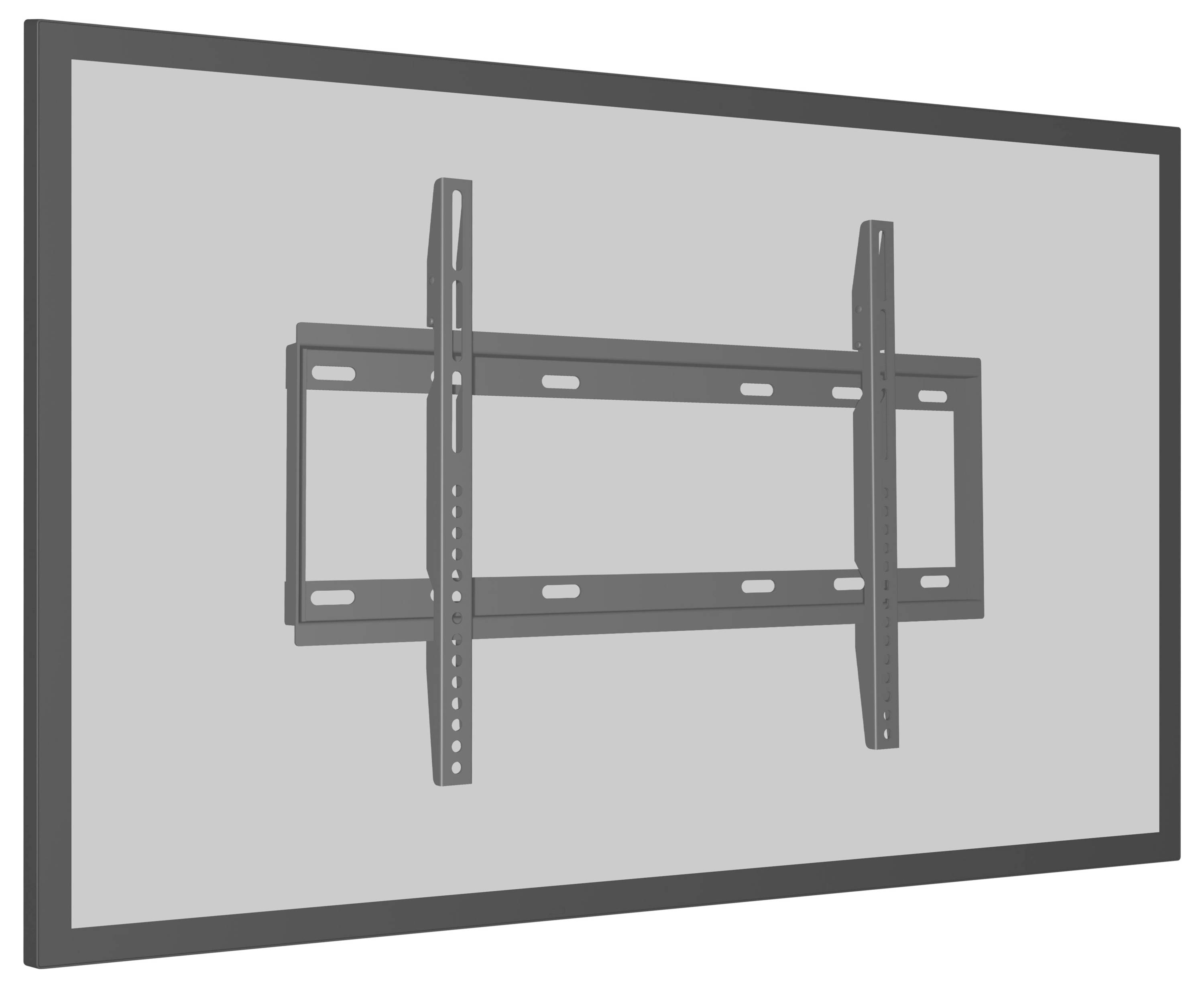

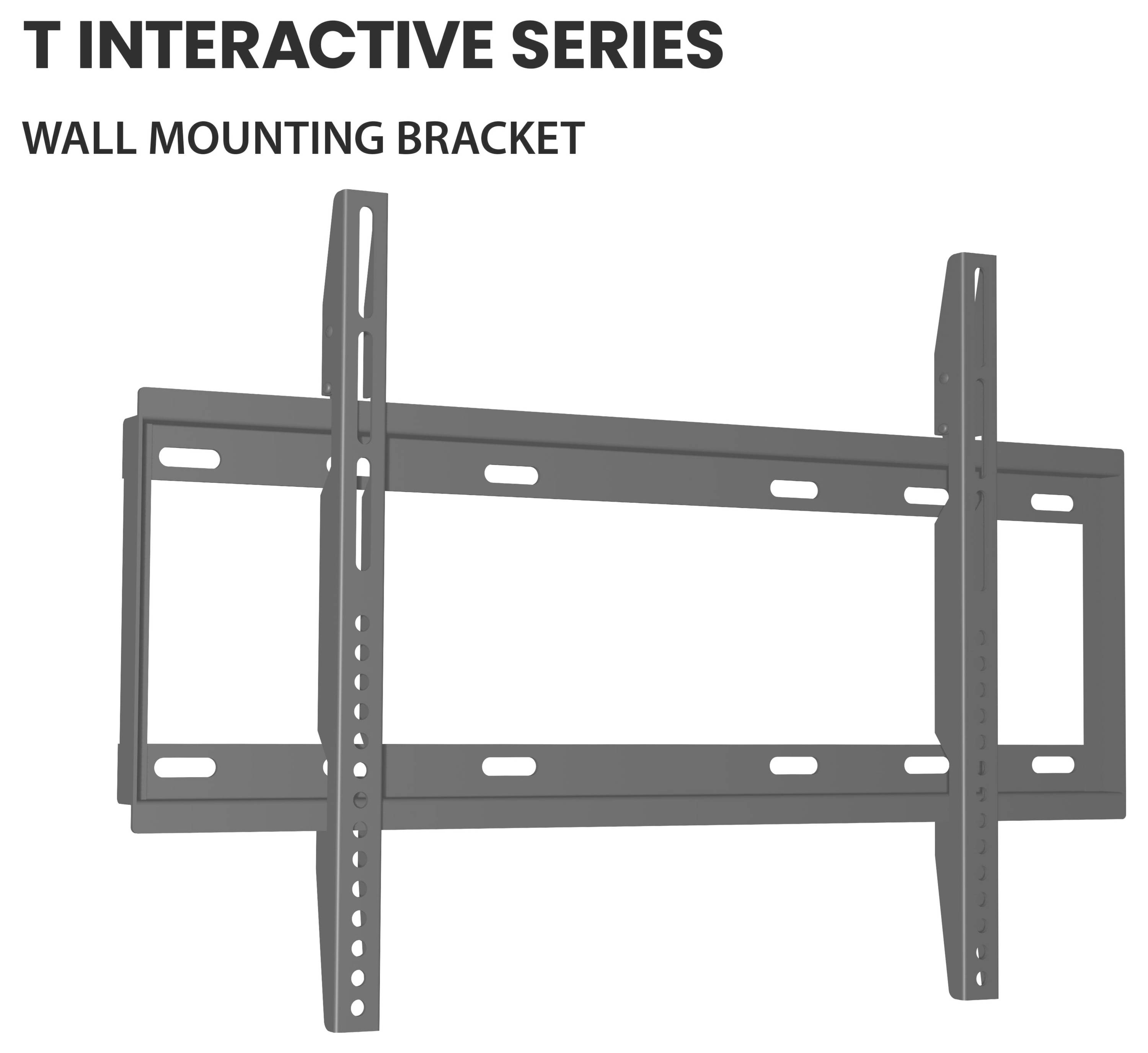

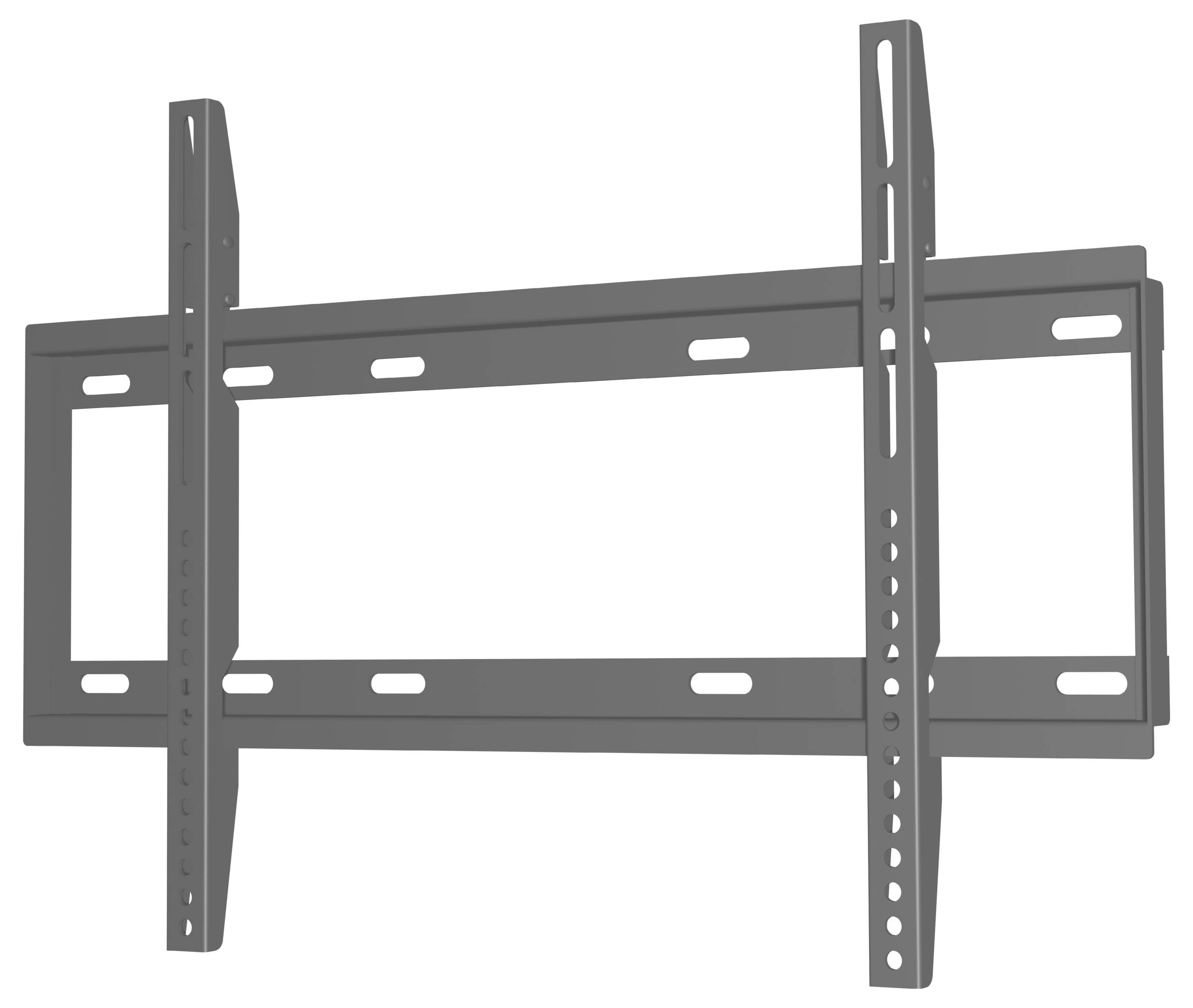

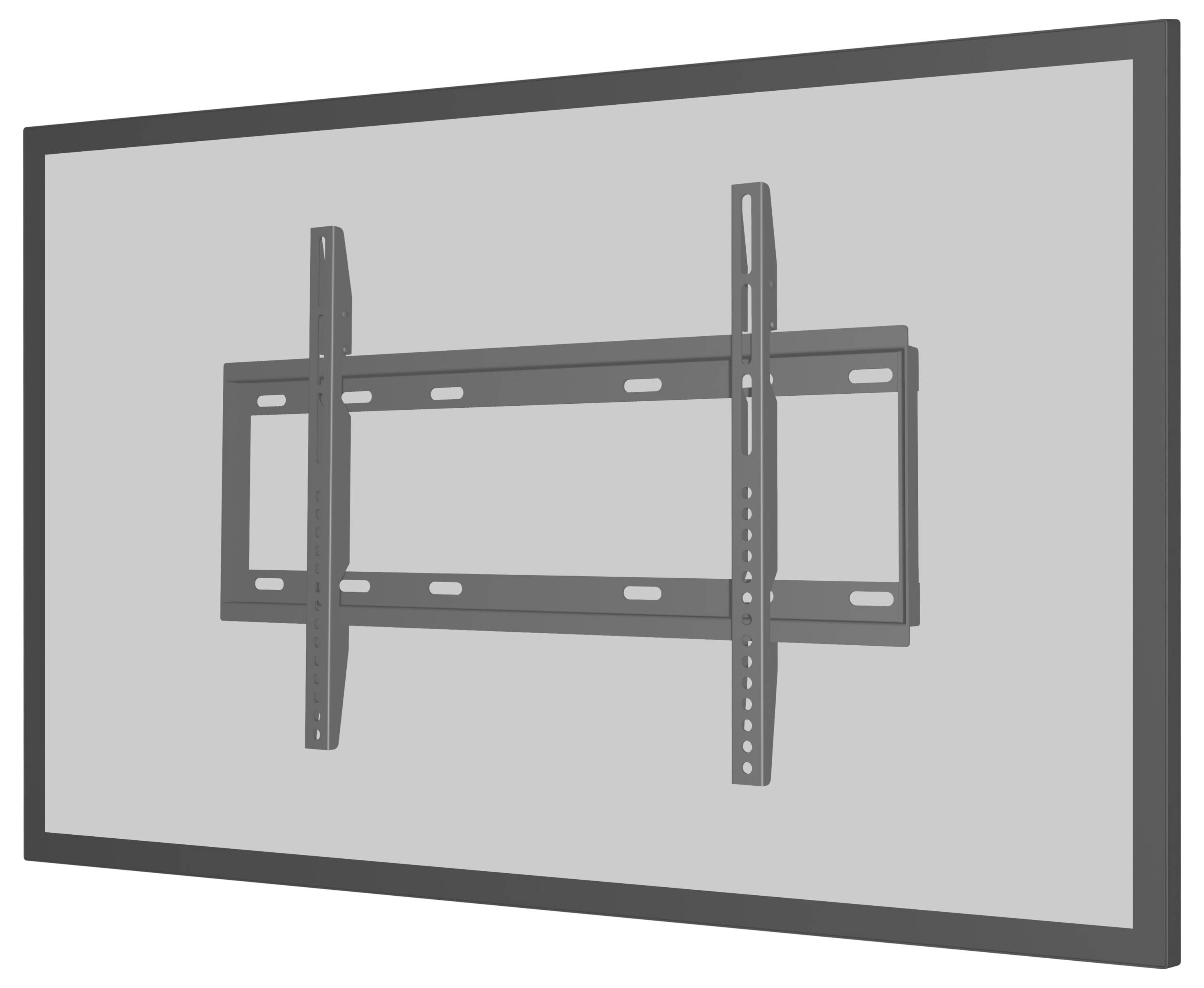

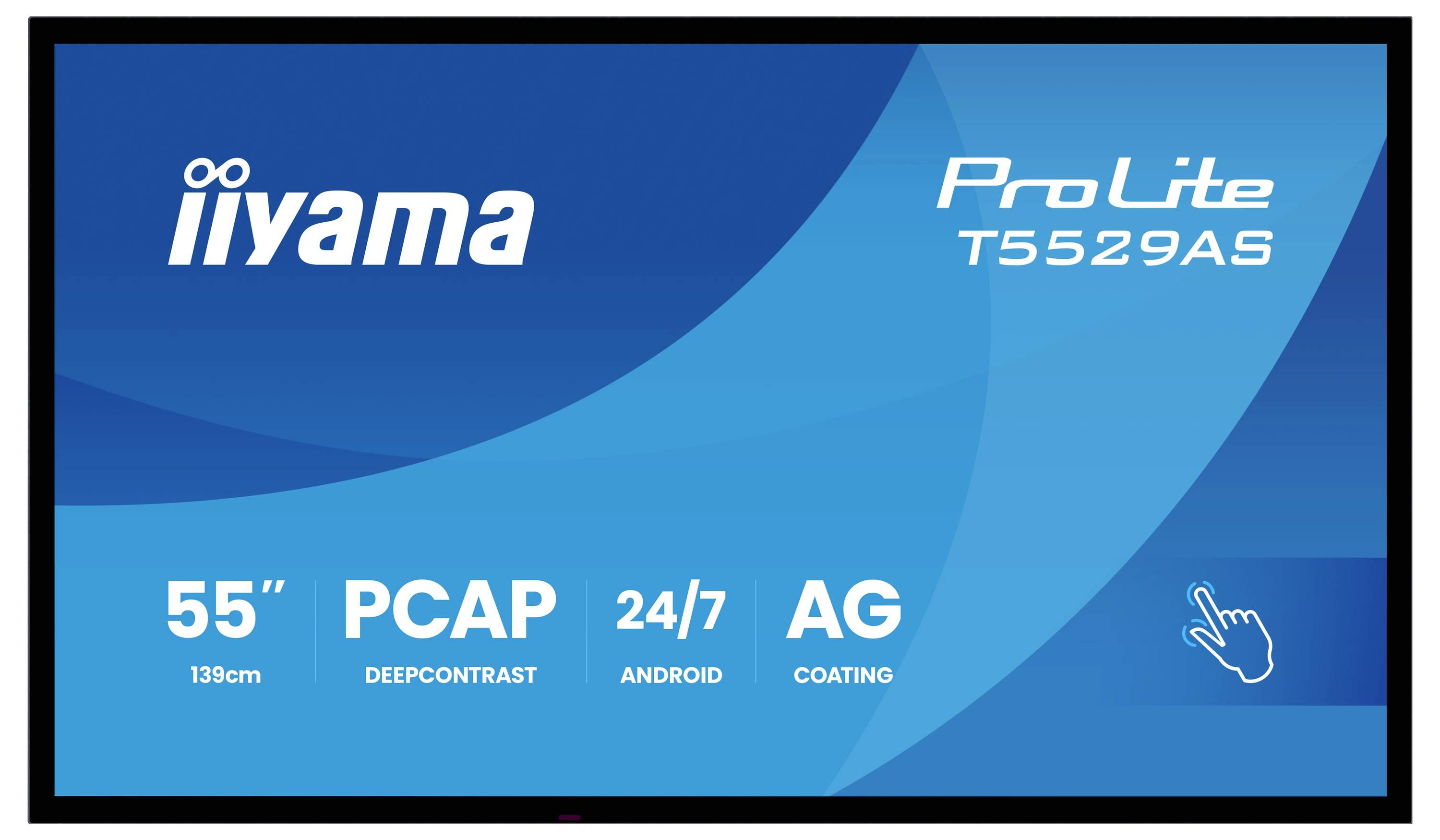

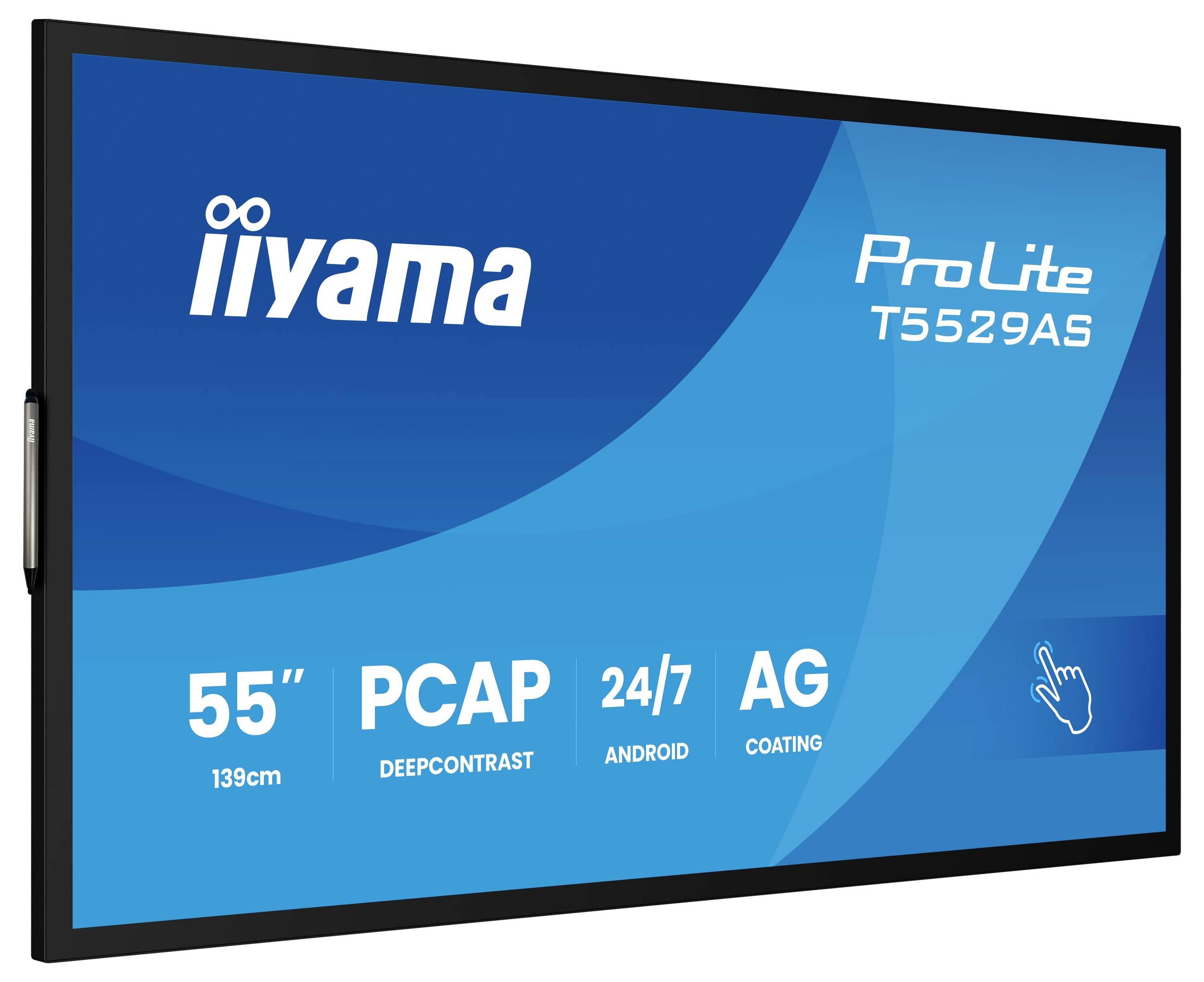

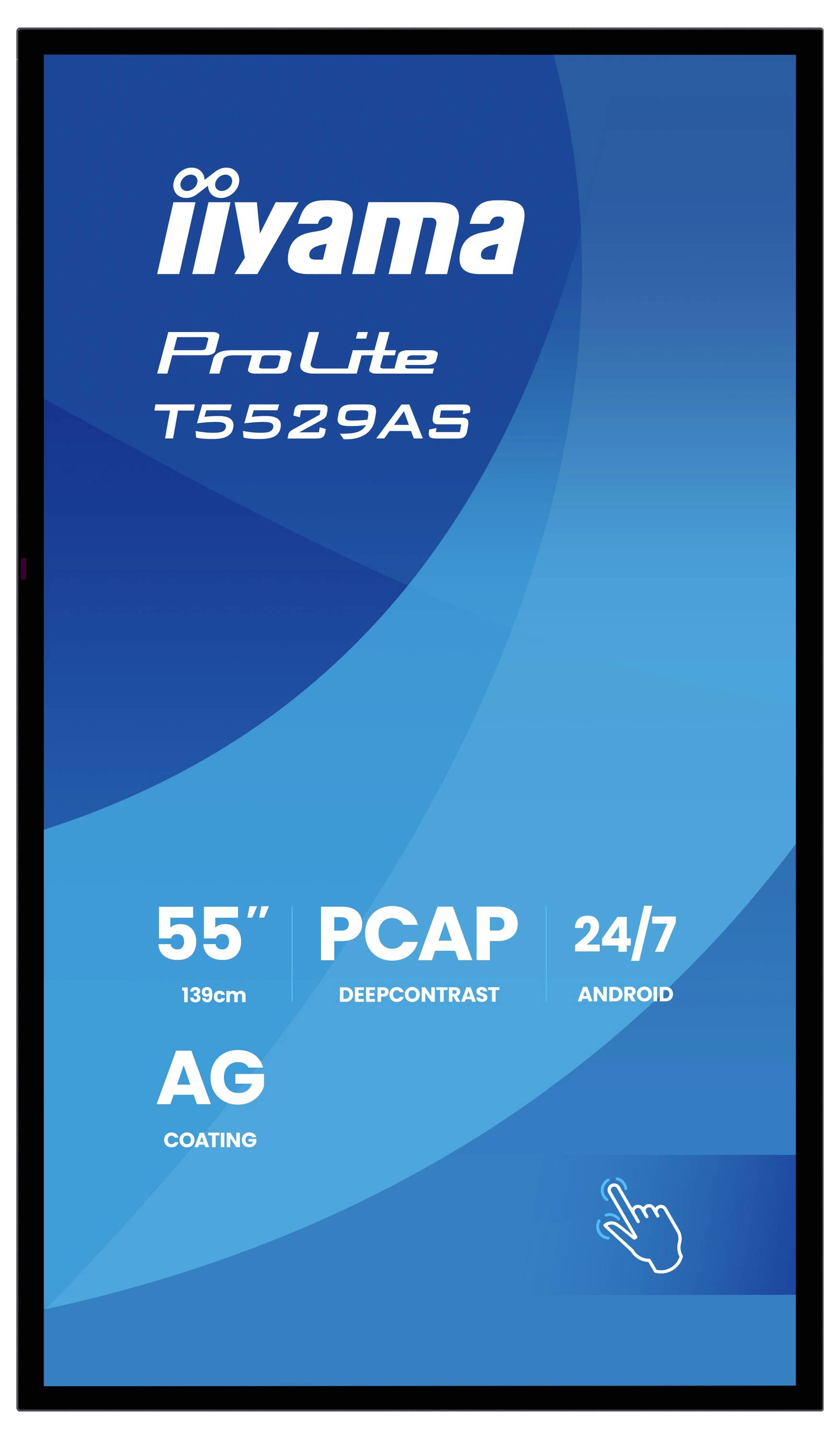

The ProLite T5529AS-B1AG is a 55-inch (139-inch) all-in-one PCAP touch screen display designed to meet the changing needs of modern working environments, especially Huddle Spaces, where creativity, flexibility and seamless sharing are the focus. This interactive display with Android operating system offers a user-friendly and highly adaptable experience. You can install your favorite apps directly on your device to create custom workflows that are tailored to your environment - be it in a collaborative meeting area, an innovation center, or an educational break room. The USB-C loop-through function simplifies connectivity, since multiple displays can be easily connected in series while transferring power, data and videos - all via a single cable. This reduces the cable clutter and setup time and is thus Ideal for dynamic working areas. The included wall bracket makes installation simple and safe. With iiSignage² (CMS), iControl (DMS) and iiShare (wireless presentation) you have full control over content and messages, even remotely - perfect for updating common information or brand visualizations during working hours. The integrated Eshare APP enables wireless screen sharing and collaboration, and supports interaction between multiple users and real-time idea creation. The T5529AS-B1AG is not just a screen - it is a collaboration tool that strengthens teams, optimizes communication and makes every meeting a success.
This text is machine translated.
This text is machine translated.

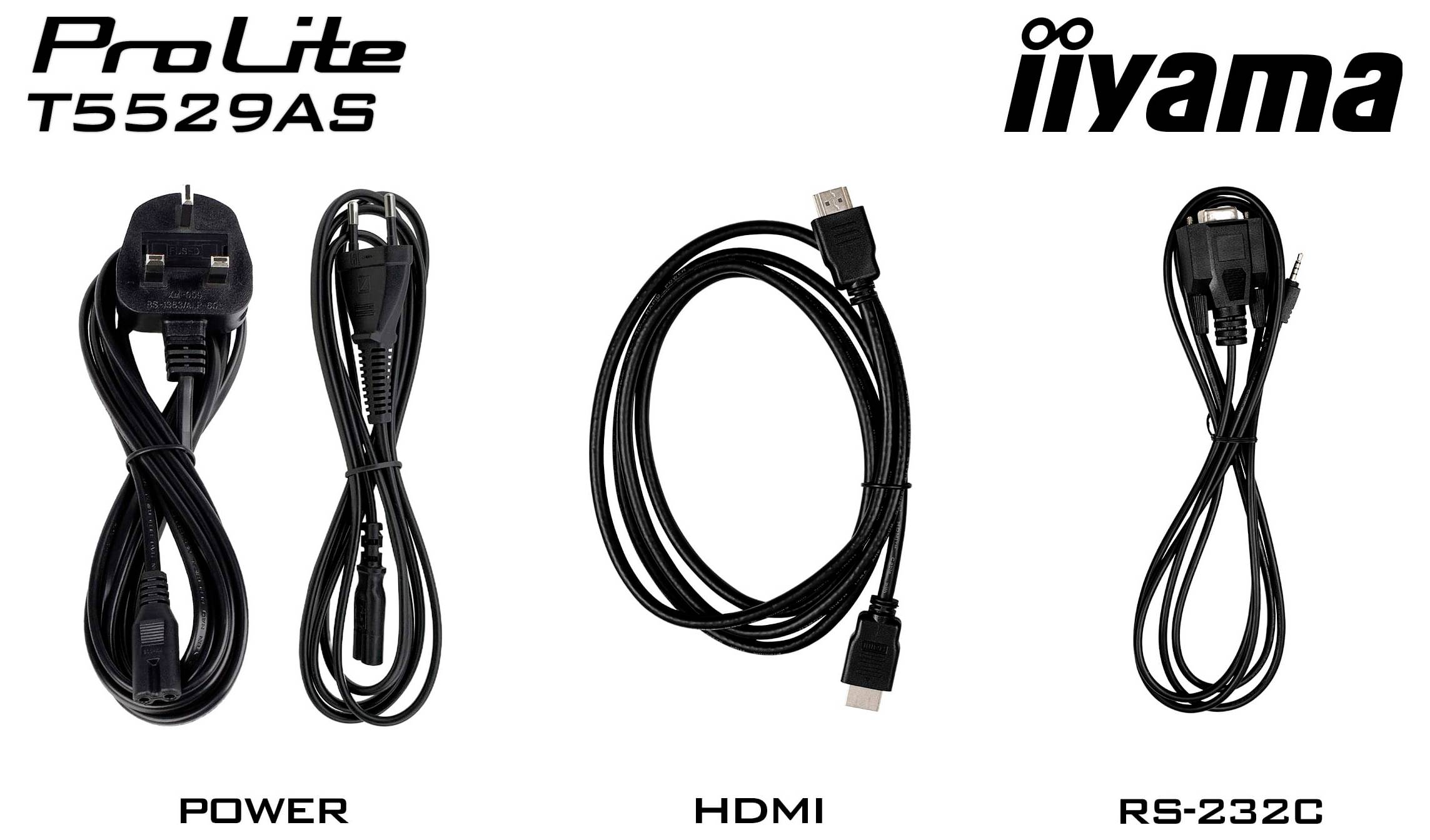

Scope of delivery
- Cable
- Quick guide.
