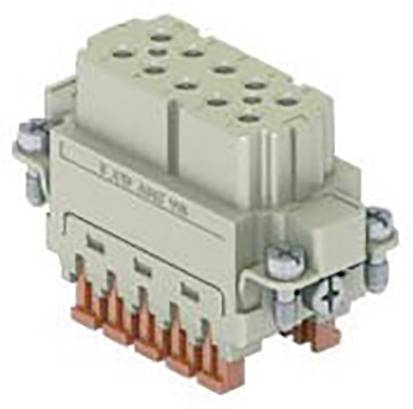

ILME CSAHF10 Socket inset Spring-loaded heavy duty connector 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Socket inset
Connection
Spring-loaded heavy duty connector
Features
vibration-proof
Core cross section (max.)
2.5 mm²
Technical specifications
- Packaging type
Piece
- Product type
Socket inset
- Features
vibration-proof
- Connection
Spring-loaded heavy duty connector
- Core cross section (max.)
2.5 mm²
- Core cross section (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2565174 ILME CSAHF10 Socket inset Spring-loaded heavy duty connector 1 pc(s) Piece
Description
THE Ilme article number "CSAHF 10" defines the article "Socket insert, Gr.49.16, 10P+PE, Silver, SQUICH, 16A, 250V". The contact insert of the CSAH series is equipped with the patented ILME quick connection technique SQUICH®. This connection technology offers an intuitive and fast connection of the connector. In addition to the time savings of up to 50% compared to traditional screw connection technology, the spring cage springs of the SQUICH® technology are absolutely vibration-proof and maintenance-free and are therefore also suitable for applications in the area of EN 61373. The additional test opening of the connection probes allows the user to measure and check the connected and installed condition of the connector. The same characteristics and contours as the CDA and CDC series enable a wide range of applications for this contact application.
