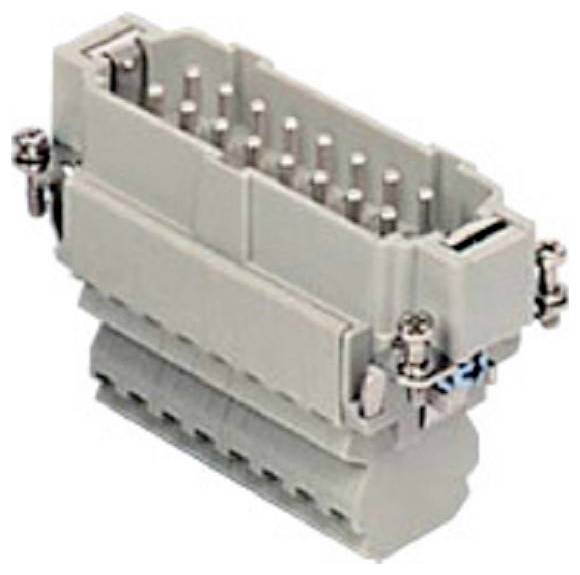

ILME CSSM16 Pin inset 16 + PE Spring-loaded connector 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Connection
Spring-loaded connector
Number of pins
16
Features
+ PG connector
+ wire protection
Technical specifications
- Packaging type
Piece
- Product type
Pin inset
- Features
+ PG connector
+ wire protection
- Leading contact (PE)
Yes
- Connection
Spring-loaded connector
- Number of pins
16
- Total no. of pins
16 + PE
- Core cross section (max.)
2.5 mm²
- Core cross section (min.)
0.14 mm²
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2564999 ILME CSSM16 Pin inset 16 + PE Spring-loaded connector 1 pc(s) Piece
Description
THE Ilme article number "CSSM 16" defines the article "Pin insert, Gr.77.27, 16P+PE, silver, 2x tension spring connection, 16A, 500V". The contact insert of the CSS series is characterized by two connection chambers per pole. This enables looping through or bridging of individual lines. The same characteristics and contours as the CCE, CNE, CSE and CSH series enable a wide range of applications for this contact application.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Contact insert with contacts
