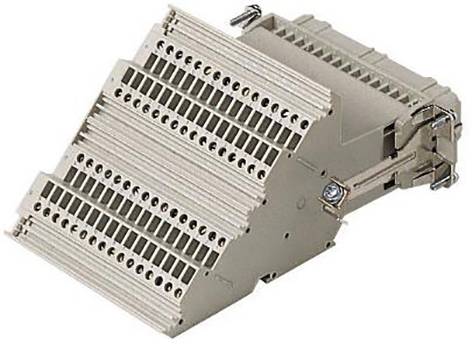

ILME CTSF64R Socket inset 64 + PE Spring-loaded connector 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Connection
Spring-loaded connector
Number of pins
64
Features
+ PG connector
+ wire protection
Leading contact (PE)
Yes
Technical specifications
- Product type
Socket inset
- Features
+ PG connector
+ wire protection
- Leading contact (PE)
Yes
- Connection
Spring-loaded connector
- Number of pins
64
- Total no. of pins
64 + PE
- Core cross section (max.)
2.5 mm²
- Core cross section (min.)
0.14 mm²
- Rated voltage
250 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2564938 ILME CTSF64R Socket inset 64 + PE Spring-loaded connector 1 pc(s)
Description
THE Ilme article number "CTSF 64 R" defines the article "Socket insert, Gr.104.27, 64P+PE, silver, tension spring connection, 10A, 250V, right". The CT series junction box combines the classic terminal block with a multi-pin connector for industrial applications. It can be mounted either in an attachment housing or directly on a DIN mounting rail. Direct bulkhead mounting is also possible. The multi-contour of the connection distributor allows the individual terminals to be labeled.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Contact insert with contacts
