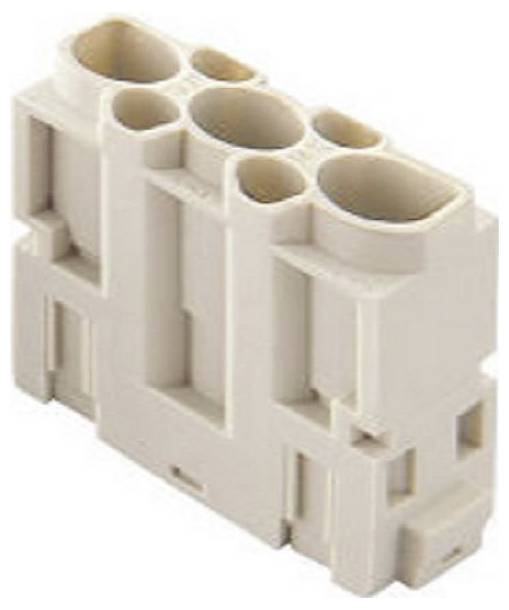

ILME CX3/4XDM Pin inset 7 Crimp 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pin inset
Connection
Crimp
Number of pins
7
Total no. of pins
7
Technical specifications
- Packaging type
Piece
- Product type
Pin inset
- Connection
Crimp
- Number of pins
7
- Total no. of pins
7
- Core cross section (max.)
6 mm²
- Core cross section (min.)
0.14 mm²
- Core cross section power contact (max.)
6 mm²
- Core cross section power contact (min.)
1.5 mm²
- Core cross section controller contact (max.)
2.5 mm²
- Core cross section controller contact (min.)
0.14 mm²
- Rated voltage
830 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2565112 ILME CX3/4XDM Pin inset 7 Crimp 1 pc(s) Piece
Description
THE Ilme article number "CX 3/4 XDM" defines the article "Pin insert, MIXO, 1ME, 3+4P, Crimp connection, 40+10A, 830V". The contact insert of the series MIXO offers an excellent flexibility for the configuration of the individually needed connector. The integrated profile guides allow the individual modules to be conveniently plugged together and thus offer just as easy handling as a fixed-pin plug connector.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Contact insert without contacts
