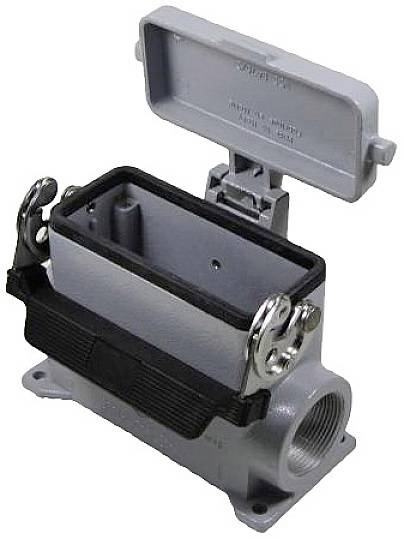

Image similar
ILME MAP06LS240 MAP 06 LS240 Socket enclosure 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket enclosure
Thread size
M40
Case material
Aluminium
Type
MAP 06 LS240
Manufacturer part #
MAP06LS240
Technical specifications
- Type
MAP 06 LS240
- Product type
Socket enclosure
- Manufacturer part #
MAP06LS240
- Features
2x cable exit (lateral)
+ longitudinal brace
Anti-corrosive
+ hinged cover
UV-resistant
- Thread size
M40
- Case material
Aluminium
- Content
1 pc(s)
- Terminal Ø (max.)
28.0 mm
- Clamp Ø
19.0 mm
IP65
- Max. temperature
125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2566087 ILME MAP06LS240 MAP 06 LS240 Socket enclosure 1 pc(s)
Description
THE Ilme article number "MAP 06 LS240" defines the article "Base housing, high, Gr.44.27, aluminum, 1 bracket, 2xM40 on the side, metal lid". The C-Type series housing is the classic housing for standard size and high quality industrial connectors, which is reflected, for example, in the stainless steel locking system with roll and spring.
