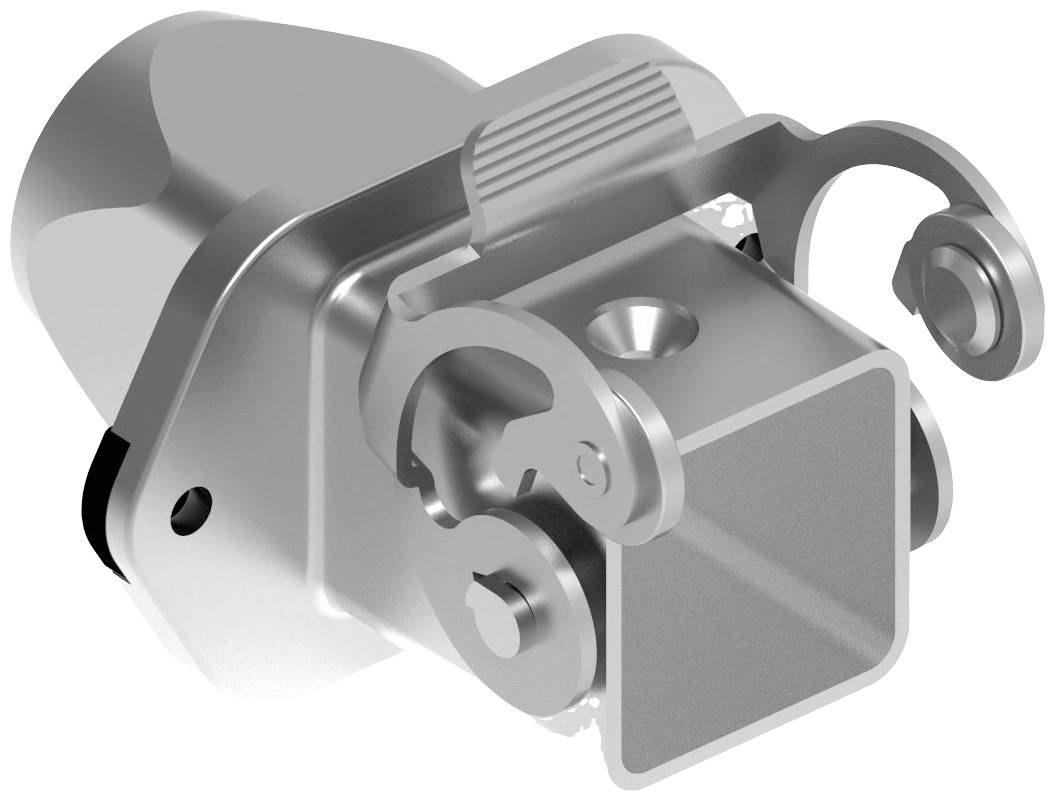

ILME MKAXSIVG20 MKAXS IVG20 Connector enclosure 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector enclosure
Thread size
M20
Case material
Diecast zinc
Type
MKAXS IVG20
Technical specifications
- Packaging type
Piece
- Type
MKAXS IVG20
- Product type
Connector enclosure
- Series
MKAXS
- Manufacturer part #
MKAXSIVG20
- Features
EMC-conductive
- Thread size
M20
- Case material
Diecast zinc
- Content
1 pc(s)
- Terminal Ø (max.)
13.0 mm
- Clamp Ø
7.0 mm
IP66
- Max. temperature
125 °C
- Min. temperature
-40 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3332053 ILME MKAXSIVG20 MKAXS IVG20 Connector enclosure 1 pc(s) Piece
Description
The ILME article number MKAXS IVG20 defines the article feed-through housing, size 21.21, EMC zinc, 1 brackets stainless steel, 1xM20 straight, Switchboard grommet The EMC series housing has a significantly increased shielding attenuation for high frequencies compared to a standard housing. This is achieved by a special, strong conductive surface coating and a sealing made of completely conductive material for all-round protection. Please note that suitable EMC cable glands must also be used.
