IMG Stageline TXS-626 Radio receiver
EAN:
Part number:
Item no:
Highlights & Details

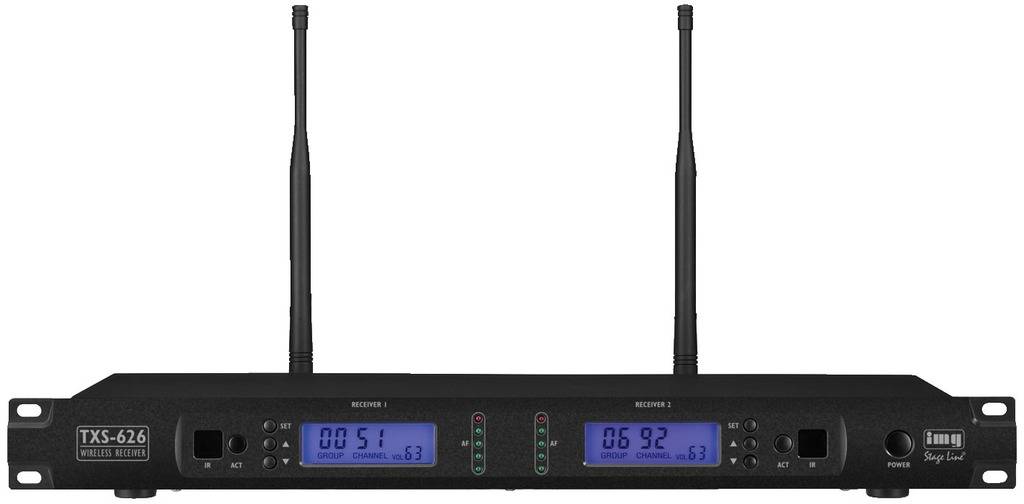

IMG Stage Line TXS-626 receiver
- 1000 UHF frequencies per channel can be set (10 groups, each with 100 frequencies)
- ACT function to transfer the desired frequency to the pocket transmitter TXS-606 LT or hand-held microphone TXS-606 HT via infrared signal
- This text is machine translated.
Technical specifications
- Carrier frequency: 672,000-696 ,975 MHz
- HF-signal-to-noise ratio 105 dB
- Audio frequency range: 30 - -18000 Hz
- Distortion:< 0.5%
- Dynamic range: 120dB
- Audio output: 350 mV/600 Ohm (Jack) 25 mV/600 Ohm (XLR, balanced)
- Permissible operating temperature: 0-40°C
- Power supply: via suppl. plug power supply
- Dimensions: 482 x 45 x 195 mm
- Weighs 1.8 kg
- Product type
Radio receiver
- Factory colour
Black
- Dim
(L x W x H) 195 x 482 x 45 mm
- Weight
1.8 kg
- Length
195 mm
- Width
482 mm
- Height
45 mm
- No. of frequencies (adjustable)
1000
- Channels
2
- Height (min.)
45 mm
- Rack unit
1 U
- Depth
195 mm
- Interfaces
XLR out
- No of. XLR outputs
2 x
- Transmission frequency
672.000-696.975 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332874 IMG Stageline TXS-626 Radio receiver
Description
Features
- 2-channel multi-frequency receiver unit with UHF PLL technology.
- 1000 UHF frequencies (672,000-696 ,975 MHz) per channel can be set (10 groups, each with 100 frequencies)
- ACT function to transfer the desired frequency to the pocket transmitter TXS-606 LT or hand-held microphone TXS-606 HT via infrared signal
- Automatic search function
- True Diversity System with removable antennas (BNC connection)
- Volume and squelch can be set per channel
- LCD display for group/channel, antenna A/B, RF reception level, AF audio level and additional LED level display for audio level per channel
- XLR output per channel, sym
- 6.3 mm jack output for mixed-signal
- Sturdy metal housing
- Power supply is included
- 482-mm-Rack Installation (19"), 1 HE
Scope of delivery
- mains adaptor.
