IMG Stageline TXS-920 Radio receiver
EAN:
Part number:
Item no:
Highlights & Details

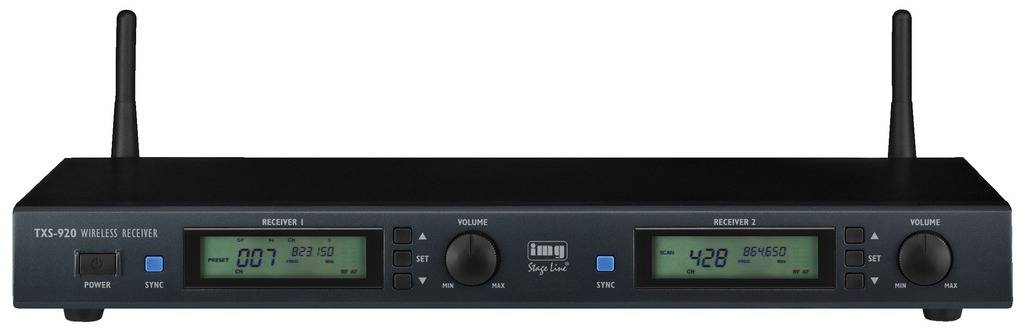

IMG Stage Line TXS-920 receiver
- 2 Registration-free frequency ranges
- 442 channels can be set
- This text is machine translated.
Technical specifications
- Carrier frequency: 823-832 MHz+ 863-865 MHz
- HF-signal-to-noise ratio> 100 dB
- Audio frequency range:80-1 8000 Hz
- Harmonic distortion:
- 100 dB
- Audio output: line: 75 mV, Mic: 7mV (Jack, unbalanced.) Line: 150mV, Mic: 15 mV (XLR, balanced) 75 mV (Mix)
- Permissible operating temperature: 0-40°C
- Power supply: via suppl. plug power supply
- Dimensions: 420 x 42 x 183 mm
- Weight: 2.3 kg
- Product type
Radio receiver
- Factory colour
Black
- Dim
(L x W x H) 183 x 420 x 42 mm
- Weight
2.3 kg
- Length
183 mm
- Width
420 mm
- Height
42 mm
- No. of frequencies (adjustable)
442
- Channels
2
- Height (min.)
42 mm
- Depth
183 mm
- Interfaces
XLR out
- No of. XLR outputs
2 x
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1332933 IMG Stageline TXS-920 Radio receiver
Description
Features
- 2-channel multi-frequency receiver unit with UHF PLL technology.
- 2 Registration-free frequency ranges (E-Band: 823-832 MHz and 863-865 MHz)
- 442 channels can be set
- Inter-modulation free presets, 4 groups, each with 8 channels.
- A maximum of 12 inter-modulation free channels in parallel can be used (auto scan)
- SYNC-function to transfer the desired frequency to the pocket transmitter TXS-900HSE or hand-held microphone TXS-900HT via radio signal.
- Automatic channel search and inter-modulation detection
- True Diversity System with removable antennas (BNC connection)
- Pilot tone squelch
- Volume and squelch can be set
- LCD display for group/channel, frequency, HF-reception level, AF audio level
- XLR output (sym. ) And 6.3-mm jack output (unbalanced. ) Per Channel, Switchable Mic/Line
- 6.3 mm jack output for mixed-signal (line)
- Sturdy metal housing
- Power supply is included
- 482 mm (19") rack mounting with supplied mounting angles possible
Scope of delivery
- Power supply
- Mounting bracket
