Image similar

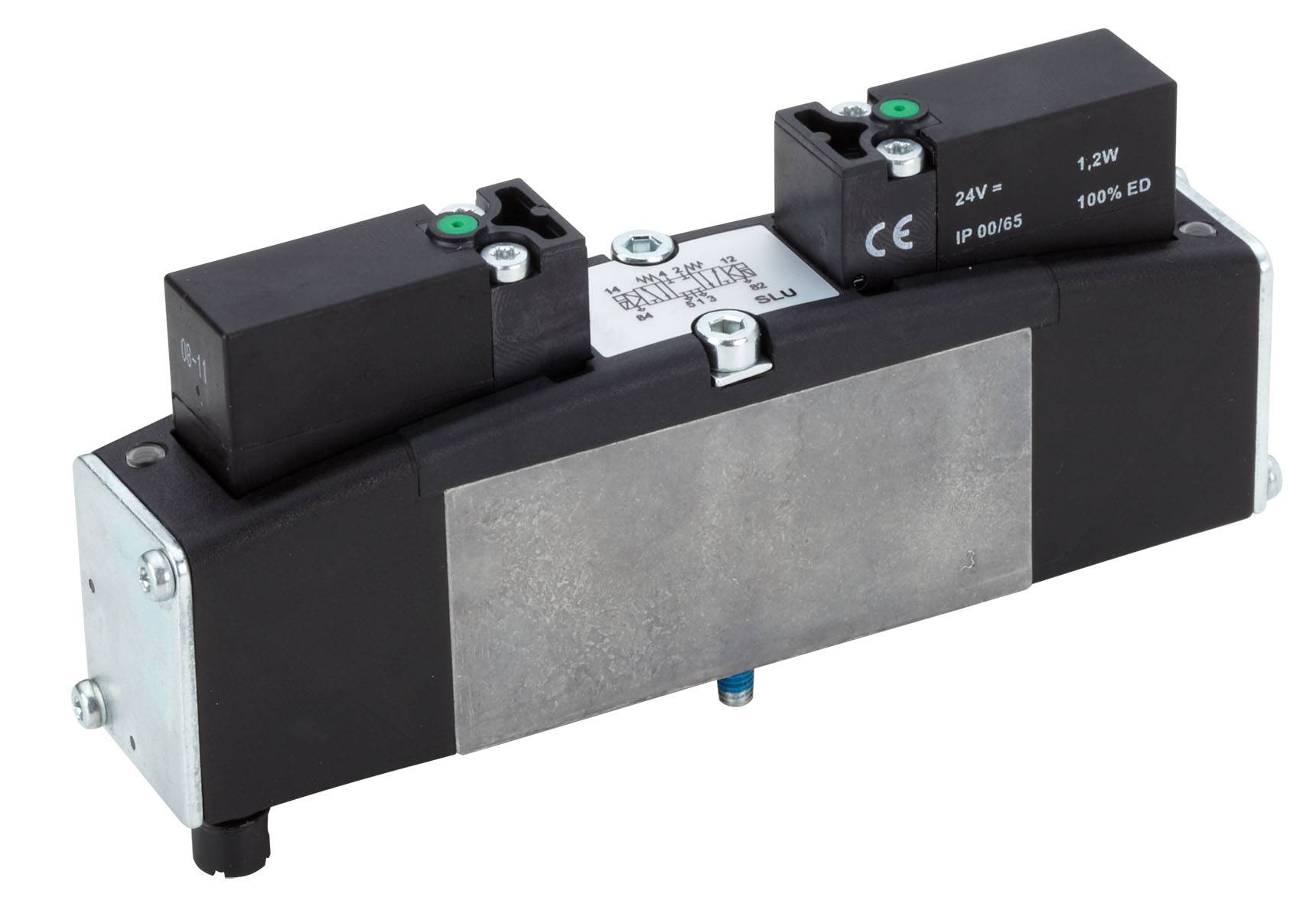

IMI NORGREN VS26S711DF213A Valve terminal 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 164.99 / piece)
€ 164.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
Valve terminal
- Operating temperature
-15 °C (min)
- Media temperature (range)
-15 up to +50 °C
- Manufacturer part #
VS26S711DF213A
- Dim
(L x W x H) 136 x 26.5 x 54.5 mm
- Min. operating temperature
-15 °C
- Max. media temperature
+50 °C
- Media temperature (min.)
-15 °C
- Width
26.5 mm
IP65
- Max. ambient temperature
+50 °C
- Min. ambient temperature
-15 °C
- Height
54.5 mm
- Length
136 mm
- Operating voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 3300777 IMI NORGREN VS26S711DF213A Valve terminal 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3300777 IMI NORGREN VS26S711DF213A Valve terminal 1 pc(s)
Description
Mini ISO plug-in valve terminals
This text is machine translated.
This text is machine translated.
Hints
The kv-value specifies the water flow through a valve in litre per minute at a pressure of hardly 1 bar and a water temperature in the range of 5 - 30 °C.
