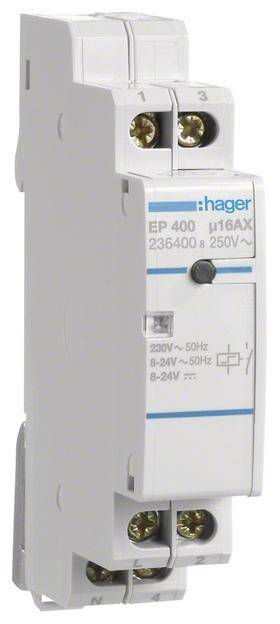

Impulse changeover switch DIN rail Hager EP400 1 maker 230 V AC, 24 V AC, 24 V DC 16 A 1 pc(s)
Product type
Impulse changeover switch
Operating voltage
230 V AC
24 V AC
24 V DC
Contact type
1 maker
Switching voltage (max.)
230 V AC
24 V AC
24 V DC
Switching current (max.)
16 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Impulse changeover switch
- Type
EP400
- Operating voltage
230 V AC
24 V AC
24 V DC
- Min. operating voltage
8 V DC
8 V AC
- Operating voltage
8, 8 V DC, V AC (min)
- Contact type
1 maker
- Switching voltage (max.)
230 V AC
24 V AC
24 V DC
- Switching current (max.)
16 A
- Mounting type
DIN rail
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3194120 Impulse changeover switch DIN rail Hager EP400 1 maker 230 V AC, 24 V AC, 24 V DC 16 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3194120 Impulse changeover switch DIN rail Hager EP400 1 maker 230 V AC, 24 V AC, 24 V DC 16 A 1 pc(s)
Description
Electronic remote switch 1S 230V and 8 to 24V AC / DC. Electronic remote switch as per DIN EN 60669-2-1 (VDE 0632-2-1) and DIN EN 60669-2-2 (VDE 0632-2-2) for pulse control of lighting circuits up to 16 A. The 230 V input and output voltages are bridged in the device. Devices with different control voltages can be electrically isolated from low to low voltages.
