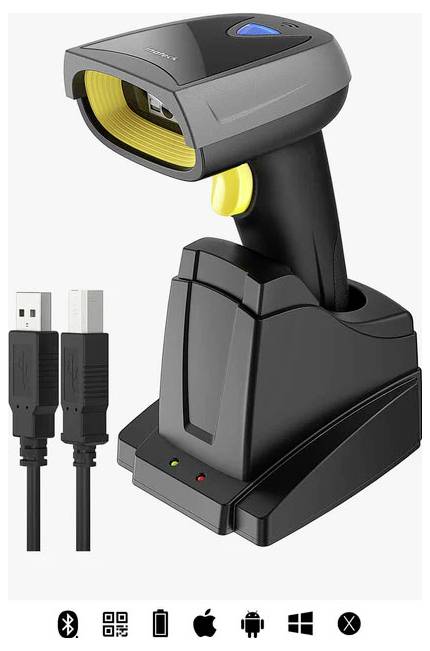

inateck 2D wireless barcode scanner Bluetooth®, Wi-Fi 2D Imager Black, Yellow Hand-held Bluetooth, USB
EAN:
Part number:
Item no:
Highlights & Details
Barcode Scanner
- Advanced CMOS sensor: Supports scanning of 1D and 2D barcodes
- Three-way connectivity: USB, Bluetooth and 2.4 GHz wireless
- Powerful battery 2000 mAh for longer life
- Wide decoding angle: Wheels 360°, inclination 65°, pivot 60°
- Compact and lightweight 16.45 cm x 6.8 cm x 9.1 cm, 340 g
- Versatile signals: Buzzer, indicator light and vibration
- Advanced scanning modes: Supports damaged/dirty codes, automatic scanning, inventory mode, duplicate recognition and 1-to-many transfer
Technical specifications
- MATERIAL PC, ABS, TPU
- Colour: Grey + black
- Display LEDs: 1x red LED, 1x white LED
- Processor 32-bit
- Light source: Red LED
- Interface: USB-C®, Bluetooth
- Battery capacity 2000 mAh
- Supply voltage 5 V
- Operating current: 190 mA
- Standby power 30 mA
- Operating / storage temperature 0 to 50 ° C / 32 to 122 ° F
- Supported code types: Codabar, Code11, Code39 / Code93, UPC / EAN, Code128 / EAN128, InterLeaved2of5, MatrixOne, MSI CODE, standard 2of5, QR CODE, PDF417, Data Matrix, Aztec, Hanxin, Micro QR, Micro PDF417
- Supported operating systems: Windows XP/Win7/Win8/Win10, MAC OS, Google Android, Linux
- Transmission range: ≥30 m (wireless), ≥10 m (Bluetooth)
- Image sensor 640×480 CMOS
- Scanning speed: 200 per second
- Minimum resolution: ≥ 5 mil
- Depth of field scanning range: 5 Mil Code39: 5–12 cm, 15 Mil Code39: 4–25 cm, 10 Mil Code93: 4–21 cm, 15Mil UPC/EAN: 4–25 cm, 20Mil QR: 4–25 cm
- Scan width: 5*5 cm²—30*30 cm²
- Scan mode: Image scan
- Scan method: Manual/automatic
- Minimum bar code contrast: 35%
- Barcode angle: Rotation angle 360°, tilt angle ± 55°, declination angle ± 55°
- Cylindrical cross-scan: Diameter 20 mm
- Transfer modes: USB-C®, Bluetooth, 2.4G receiver
- Feedback: Tone, LED, vibration
- Shock resistance: Height of up to 1.5 m.
- Product type
2D wireless barcode scanner
- Type
BCST-52_black
- Type
Hand-held
- Scanning technology
Imager
- Readable code types
2D
- Cordless scanning
Bluetooth®
Wi-Fi
30 m
- Factory colour
Black
Yellow
- Interfaces
Bluetooth
USB
- Width
27 mm
- Height
115 mm
- Depth
47 mm
- Weight
84 g
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3779542 inateck 2D wireless barcode scanner Bluetooth®, Wi-Fi 2D Imager Black, Yellow Hand-held Bluetooth, USB
Description
The wireless Inteck BST-52 2D barcode scanner is designed for the flexible use in the trade and in logistics. Fitted with a CMOS-sensor the device reads 1D and current 2D barcodes reliably from paper and screens.
Flexible connectivity

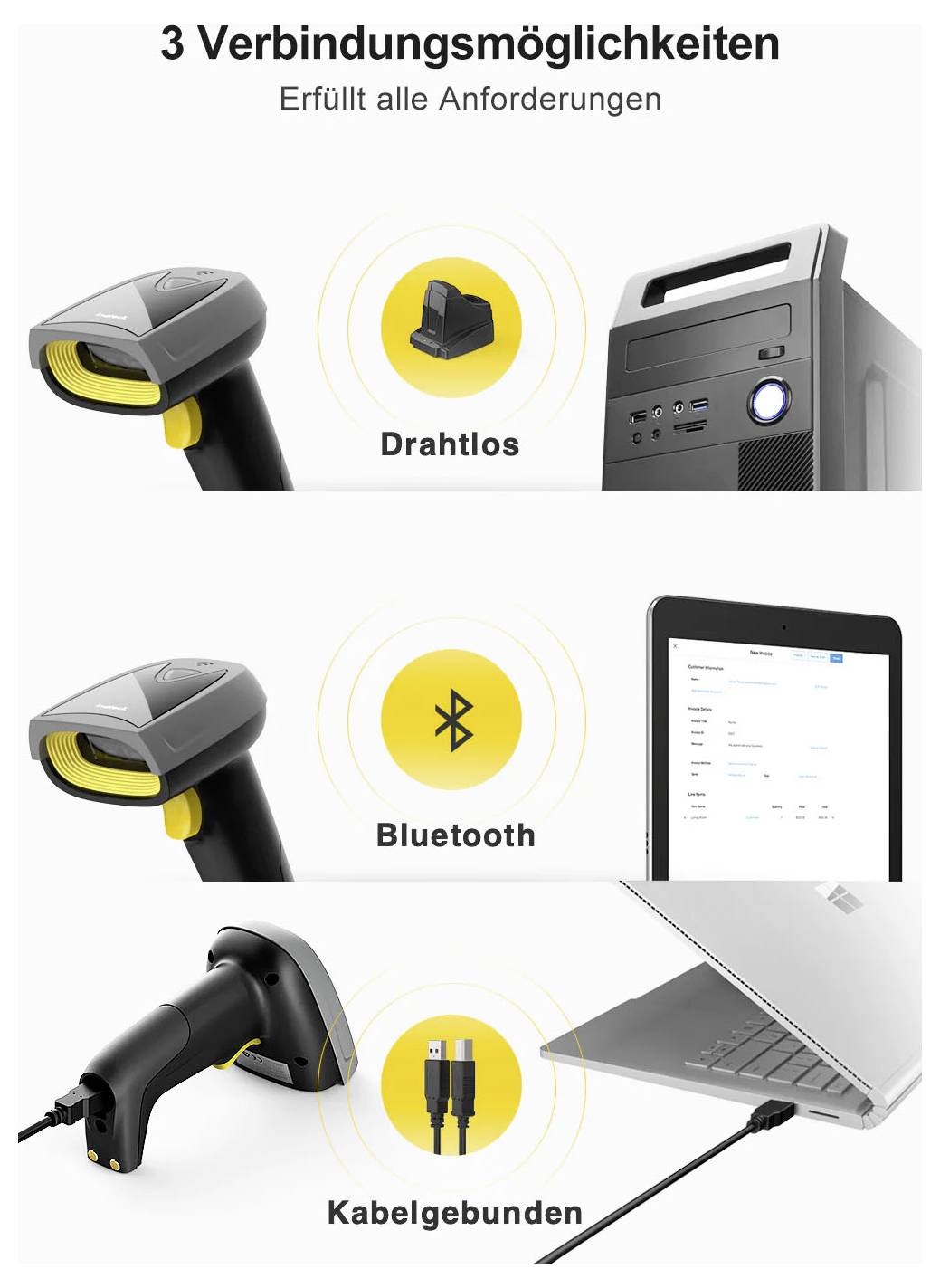

The scanner offers three connection types: USB-C®, Bluetooth® and 2.4 GHz wireless. The supplied base station makes possible an automatic charging and the direct data transfer to the computer.
Versatile sensing
A further decoding angle and auto induction mode support hands-free scanning in the workplace. The module can even detect damaged, fuzzy or high-density codes.
Extensive Scan modes
In addition to automatic scanning, the device offers inventory mode, duplicate detection and 1-to-many transfer. The successful detection is signaled to the user via sound, LED display and vibration.
This text is machine translated.
Flexible connectivity
The scanner offers three connection types: USB-C®, Bluetooth® and 2.4 GHz wireless. The supplied base station makes possible an automatic charging and the direct data transfer to the computer.
Versatile sensing
A further decoding angle and auto induction mode support hands-free scanning in the workplace. The module can even detect damaged, fuzzy or high-density codes.
Extensive Scan modes
In addition to automatic scanning, the device offers inventory mode, duplicate detection and 1-to-many transfer. The successful detection is signaled to the user via sound, LED display and vibration.
This text is machine translated.
Features
- The scanner can quickly read different types of 1D and common 2D barcodes.

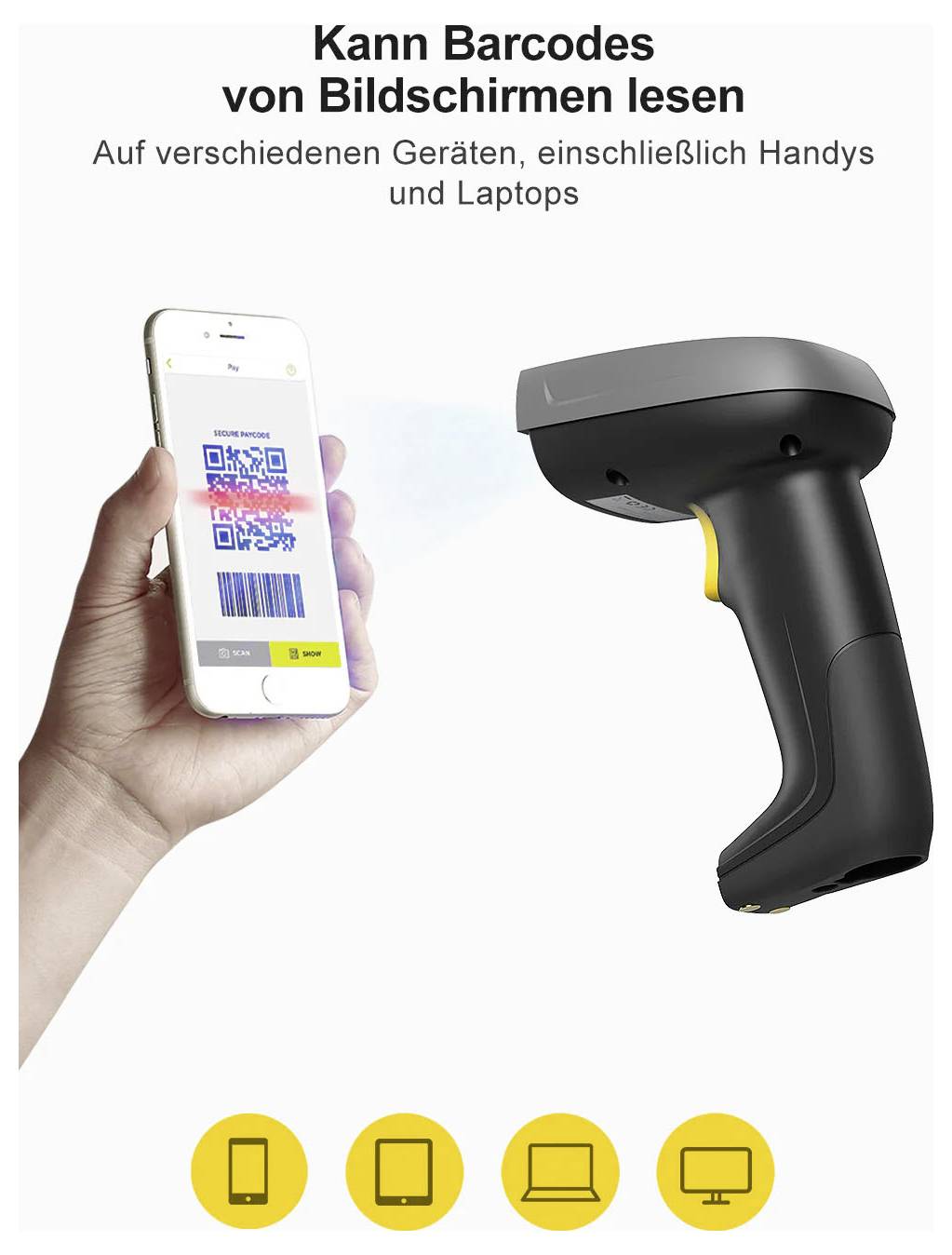

- Screen scanning supports: The BCST-52 captures digital images so it can read barcodes directly from smartphone or laptop screens – Ideal for mobile payments in shops and supermarkets.

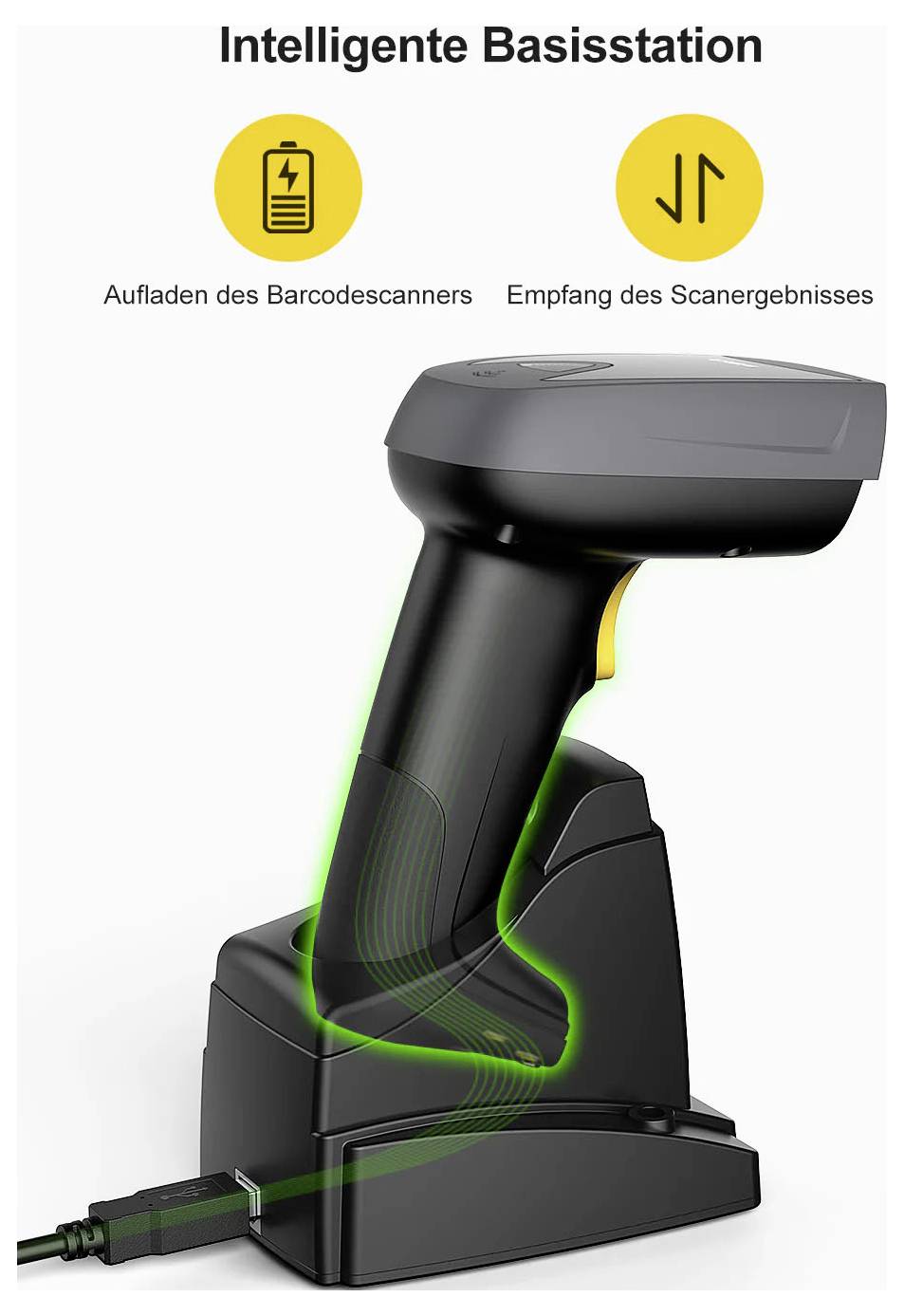

- Smart Base Station: Connect it to a computer using the supplied USB-C® cable to automatically charge the barcode scanner and transfer scan data without the need for an additional charger or receiver.
- Three connection methods: Enjoy flexible connectivity with a wireless connection to the base station, Bluetooth connection to tablets and smartphones, or a direct wired connection to a computer using the supplied USB-C® cable.

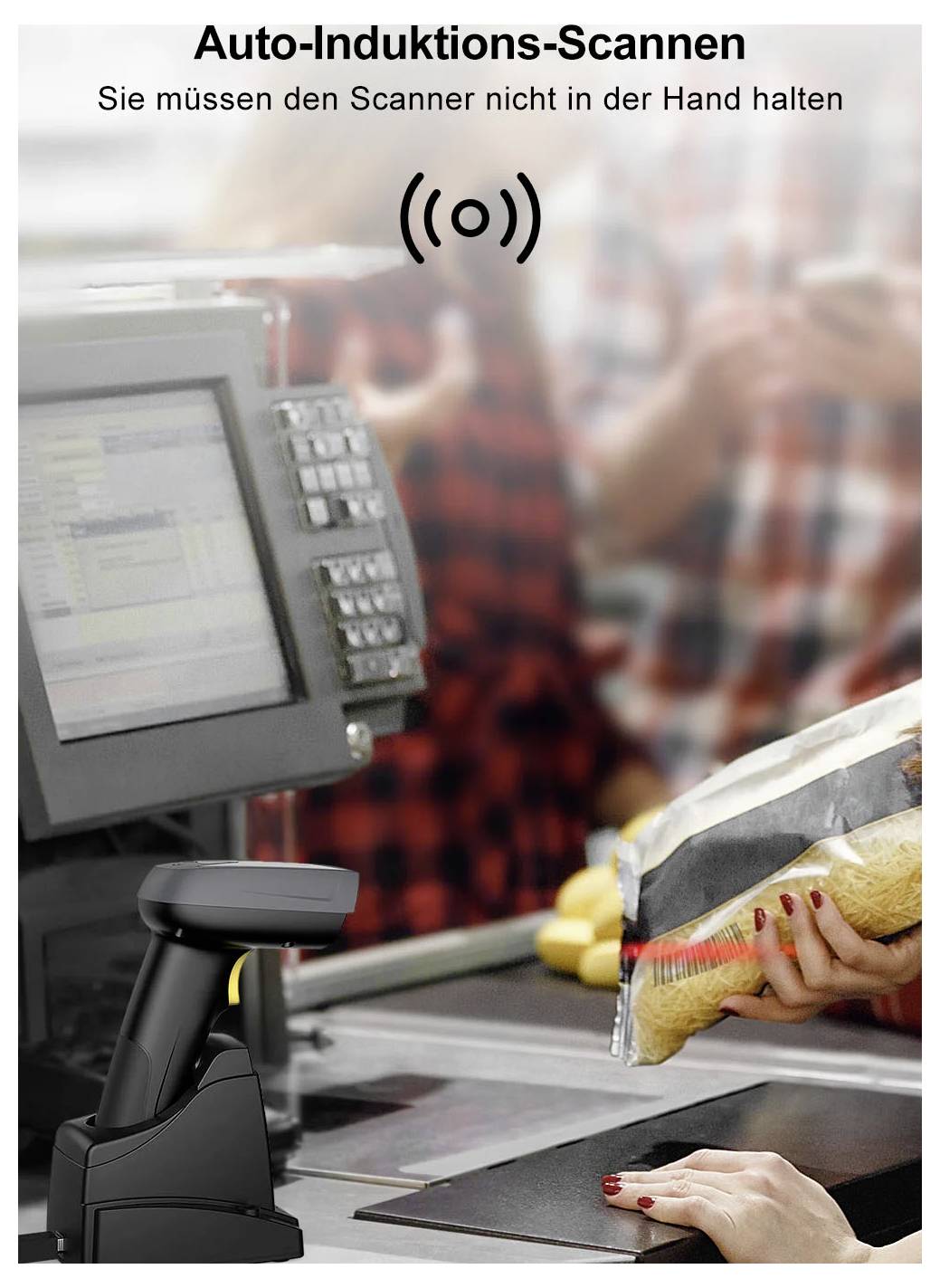

- Excellent decoding capability: Easily reads damaged, blurred and high density barcodes and has an auto induction mode for hands-free scanning.
- Supported 1D barcodes: Codabar, Code 11, Code 39 / Code 93, UPC / EAN, Code 128 / EAN 128, Interleaved 2 of 5, Standard 2 of 5, Matrix 2 of 5, MSI code.

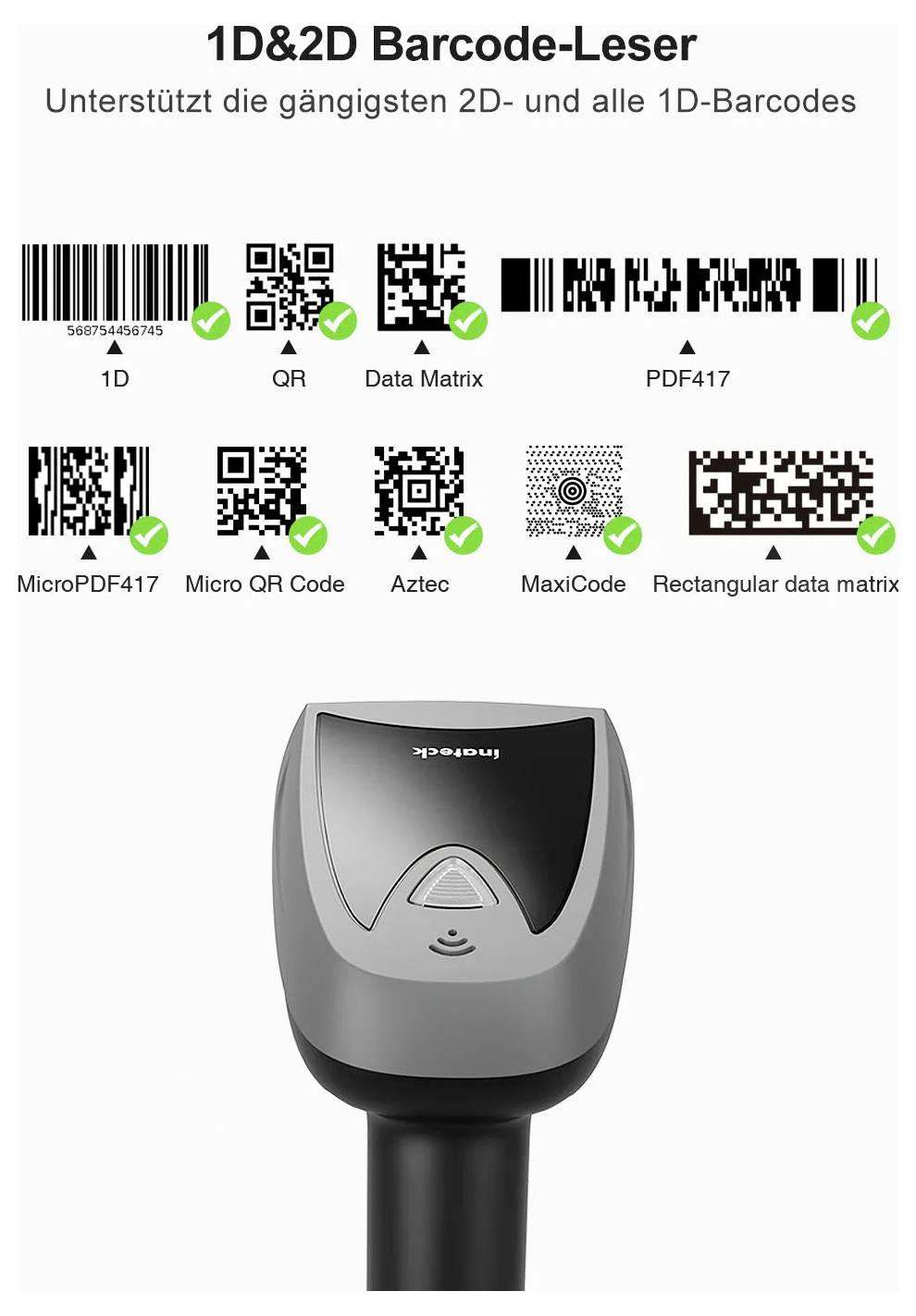

- Supported 2D barcodes: QR Code, Micro QR, PDF417, Micro PDF417, Data Matrix, Aztec, HAN Xin code.

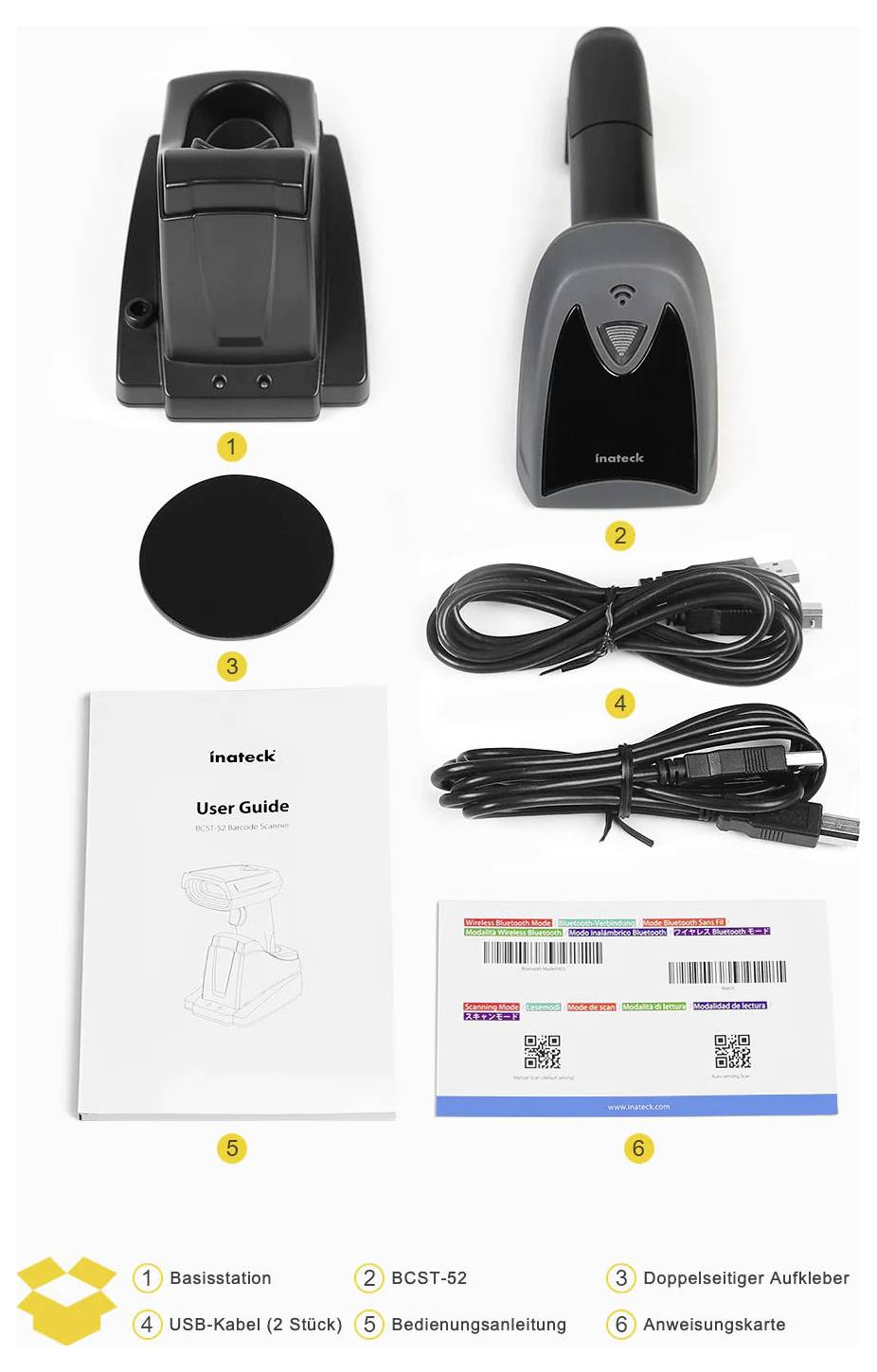

Scope of delivery
- Inateck BCST-52
- 2x USB cable
- User manual
- Main hub
- Double sided adhesive strips
