inLine AV Converter INLINE - Konverter HDMI zu Composite/S-Video - mit Audio [ - ]
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
inLine converter HDMI to composite/S-Video - with audio
- Extends VGA video and stereo audio signals via a patch cable CAT.5e/6 to a max. Length of 300 m.
- Includes fine adjustment of the image signal for adjustment to different lengths of the patch cable, GAIN: Brightness setting, PEAK VALUE: Bit offset setting
- Max. Resolution up to 1920 x 1200 pixels
- Dual-output at transmitter: 1 x VGA-output for local place plus 1 x RJ45-output for the remote display
- For monitors, projectors, HDTV and flat screens
- Contents: Transmitter, receiver, 2 power supplies 5V 1A, instructions for use
Technical specifications
- S-video
- Product type
AV Converter
- Connection type
HDMI
- No. of A connectors
1 x
- Type A
HDMI socket
- No. of B connections
2 x
- Type B
Composite Video
- Cable length
0 cm
- Factory colour
Multicolour
- Version
Converter
- Cable use
AV
- Weight
0.458 kg
- Length
0.000 mm
- Width
0.000 mm
- Height
0.000 mm
- Range of use
Universal
- Cable design
Round
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3738864 inLine AV Converter INLINE - Konverter HDMI zu Composite/S-Video - mit Audio [ - ]
User & Safety Instructions
User & Safety Instructions 3738864 inLine AV Converter INLINE - Konverter HDMI zu Composite/S-Video - mit Audio [ - ]
Description

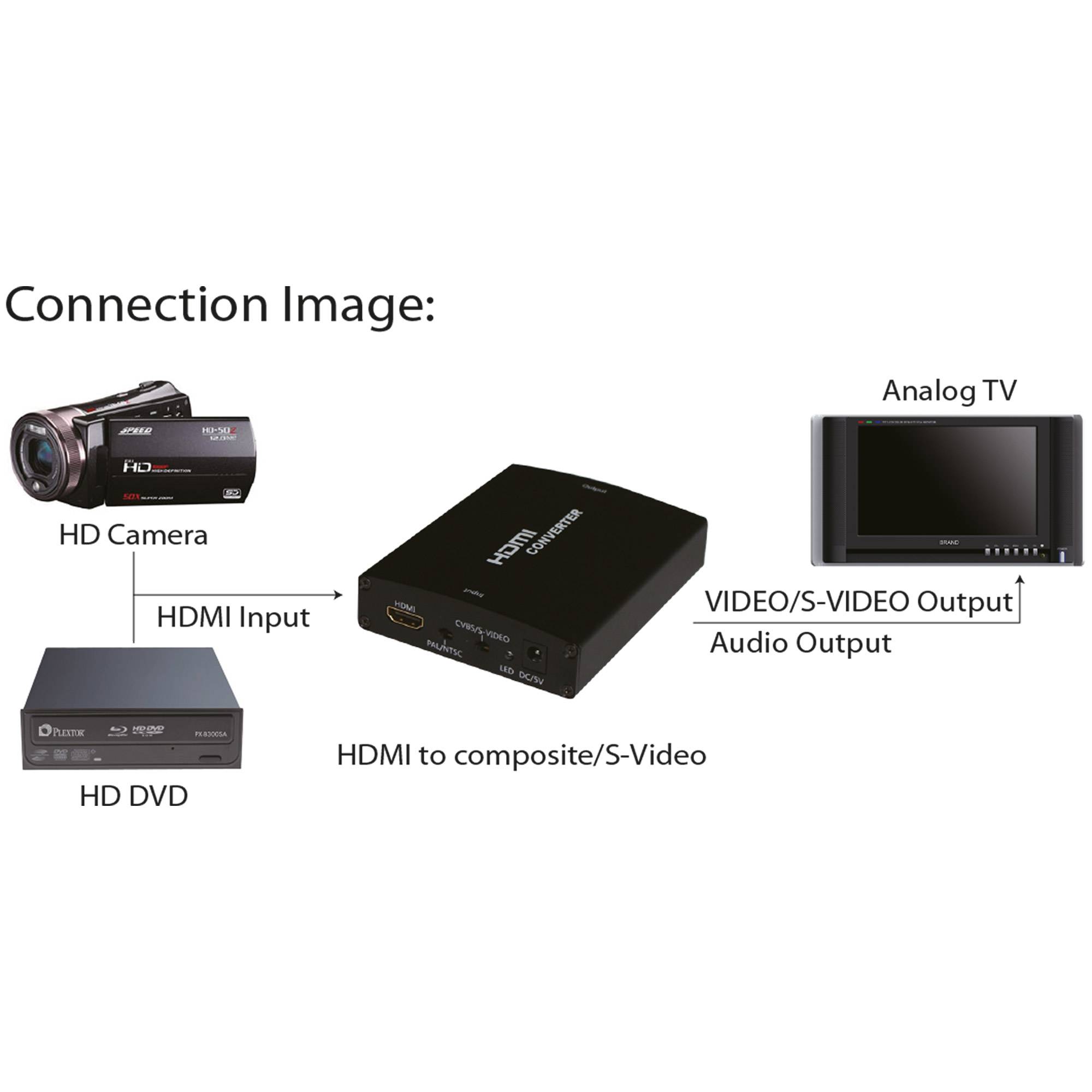

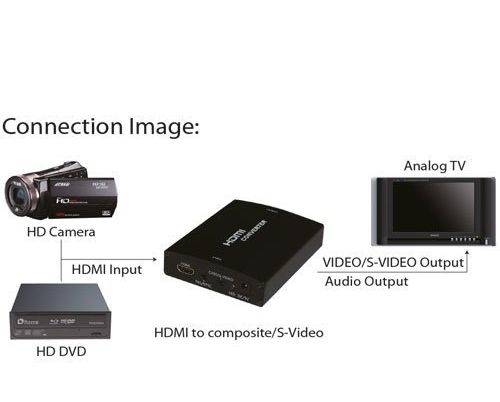

With the HDMI to analogue audio-/video converter you can convert digital HDMI-signals in analogue video and stereo-audio signals. HDCP-coded signals are not converted.
HDMI input resolution: 480p (60 Hz), 576p (50 Hz), 720p (50 Hz/60 Hz), 1080i (50 Hz/60 Hz), 1080p (50 Hz/60 Hz)
Output: Composite video (1.0 Vpp), S-video (Y: 1.0 Vpp, C: 0.3 Vpp)
Video output PAL/NTSC adjustable
Video output impedance 75 Ohm
Compatible with HDMI 1.3
Power supply: DC 5V
Operating temperature: -25°C - 75°C
Operating humidity 10% - 60%
Dimensions: 110 x 88 x 25 mm (L x W x H)
This text is machine translated.
HDMI input resolution: 480p (60 Hz), 576p (50 Hz), 720p (50 Hz/60 Hz), 1080i (50 Hz/60 Hz), 1080p (50 Hz/60 Hz)
Output: Composite video (1.0 Vpp), S-video (Y: 1.0 Vpp, C: 0.3 Vpp)
Video output PAL/NTSC adjustable
Video output impedance 75 Ohm
Compatible with HDMI 1.3
Power supply: DC 5V
Operating temperature: -25°C - 75°C
Operating humidity 10% - 60%
Dimensions: 110 x 88 x 25 mm (L x W x H)
This text is machine translated.
Features

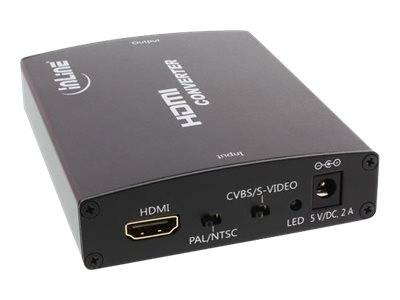

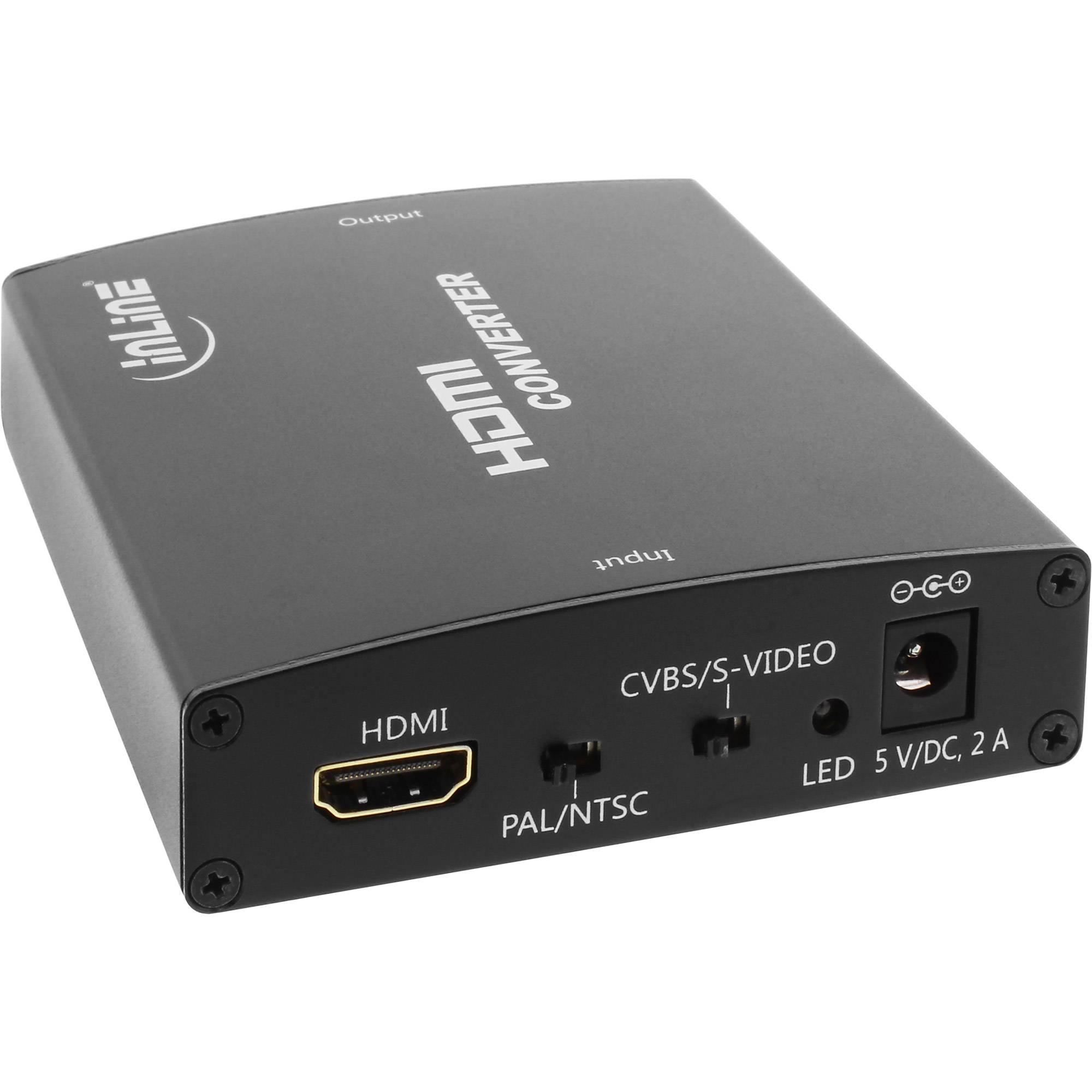

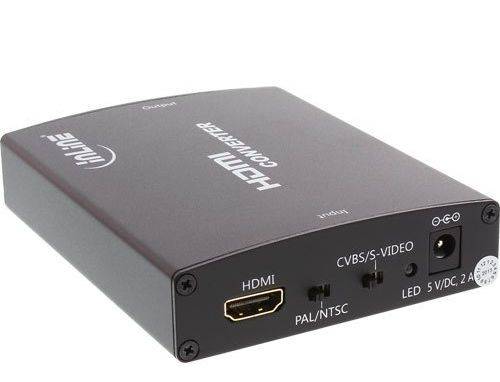

- inLine video converter
- Type of device : Video converter

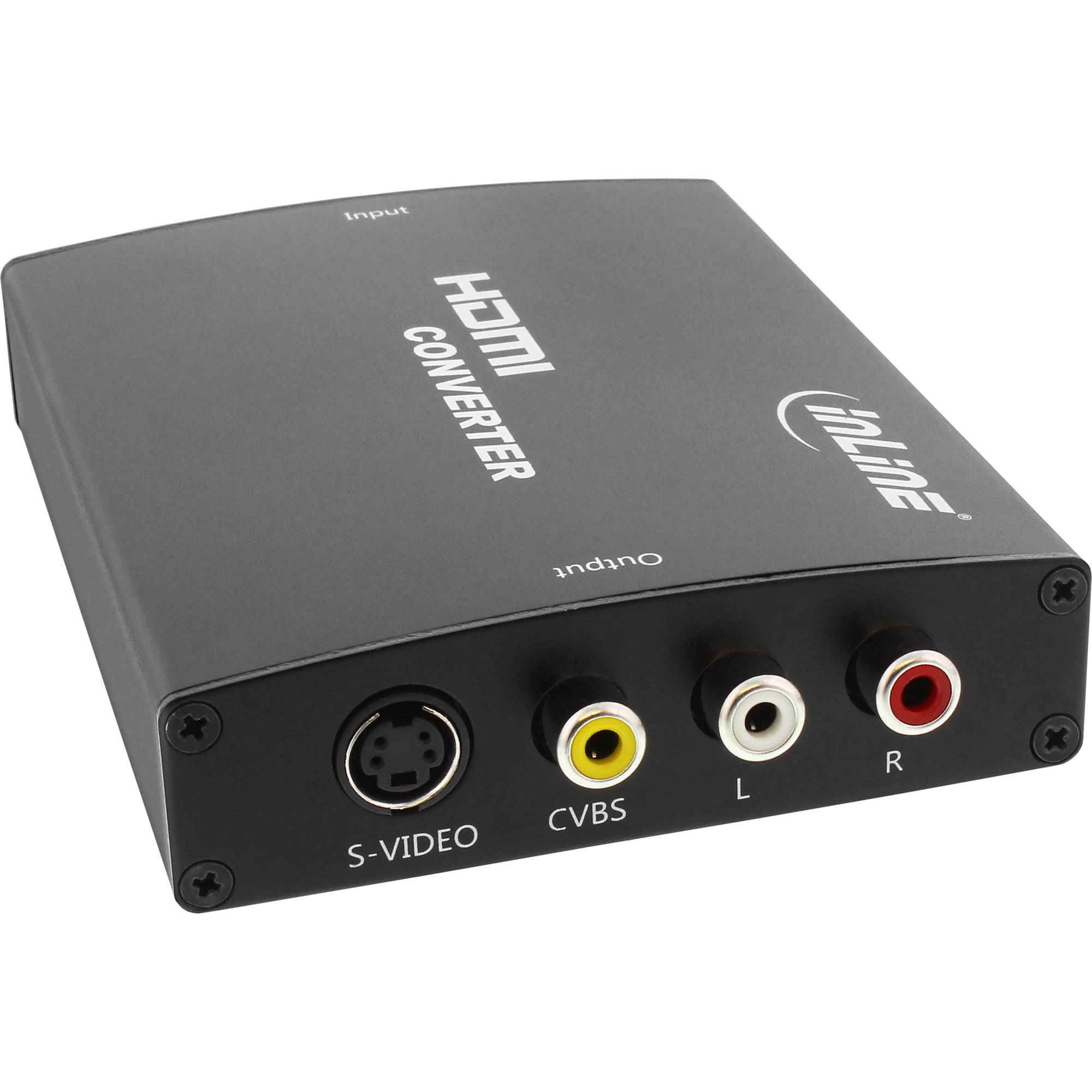

- Interfaces : 1 x HDMI input - 19-pin HDMI type A.
- 1 x audio line out – RCA x 2
- 1 x composite video output - RCA
- 1 x S-video output - 4-pin mini DIN
- Dimensions (width x depth x height): 8.8 cm x 11 cm x 2.5 cm
