Intellinet 561846 19" switch box 10 / 100 / 1000 MBit/s IEEE802.3at (30 W), IEEE802.3af (15.4 W)
EAN:
Part number:
Item no:
Highlights & Details

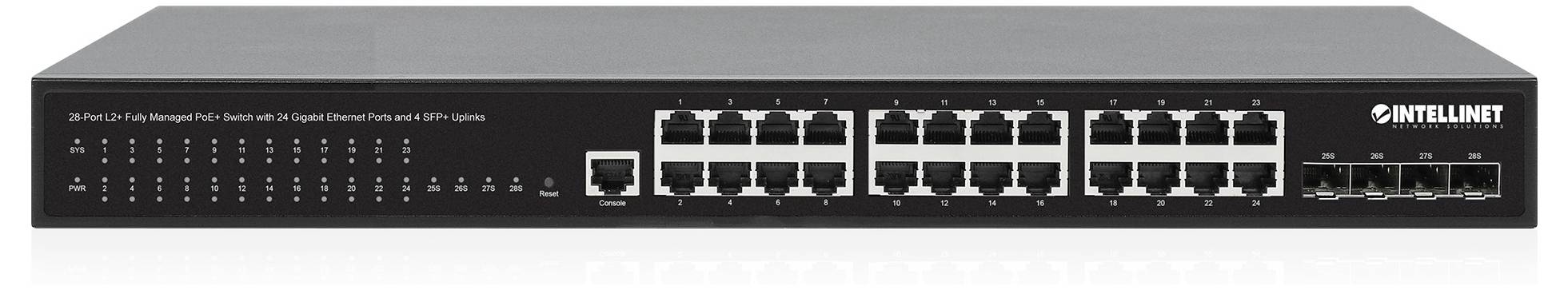

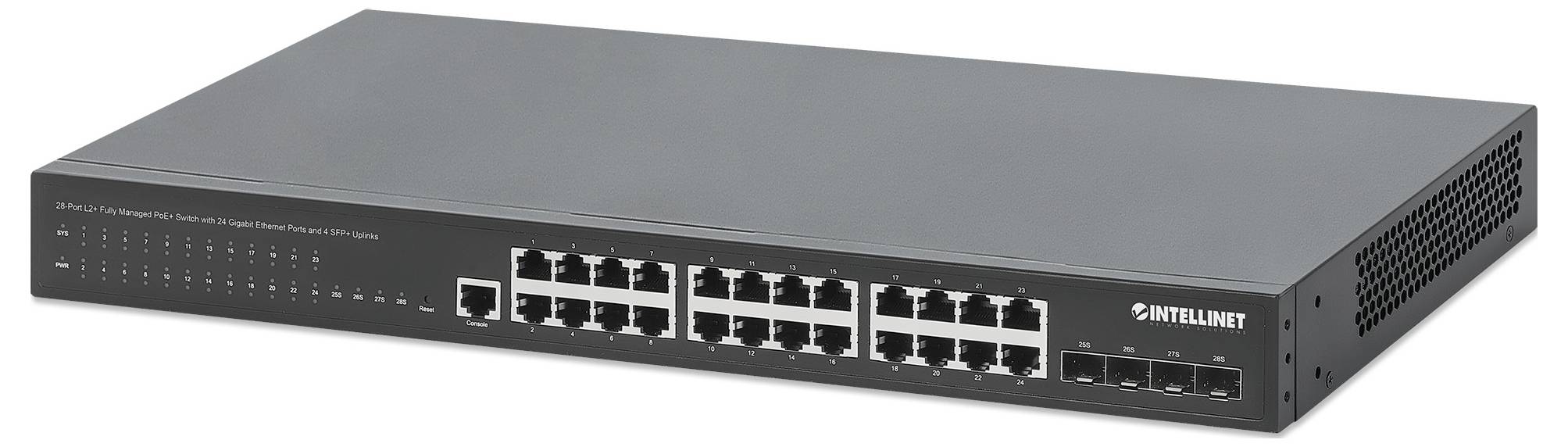

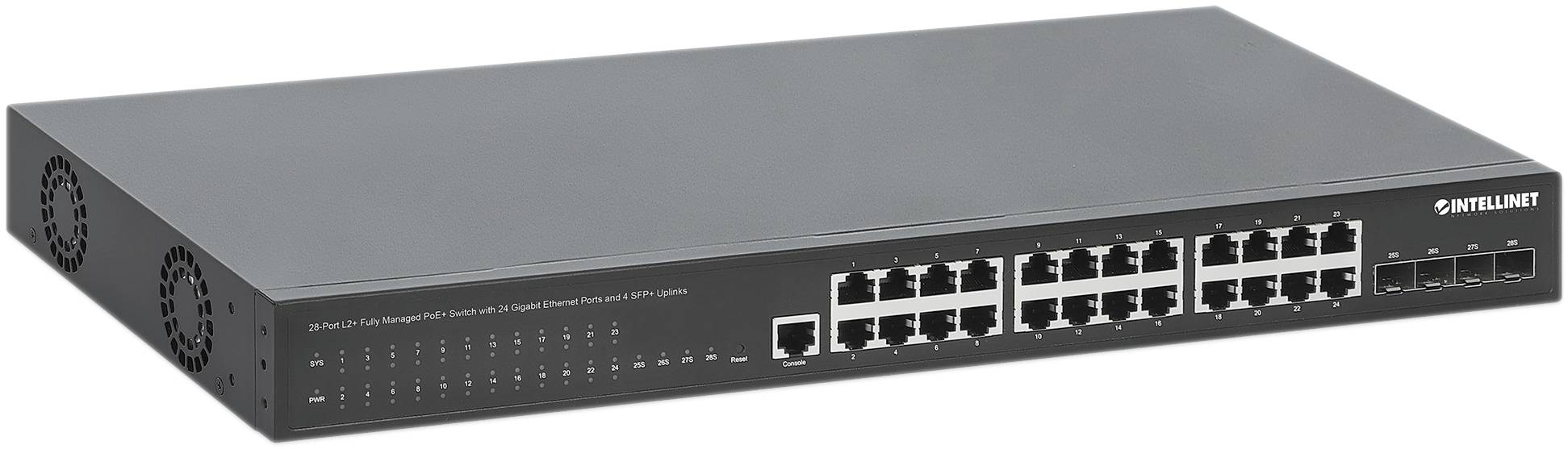

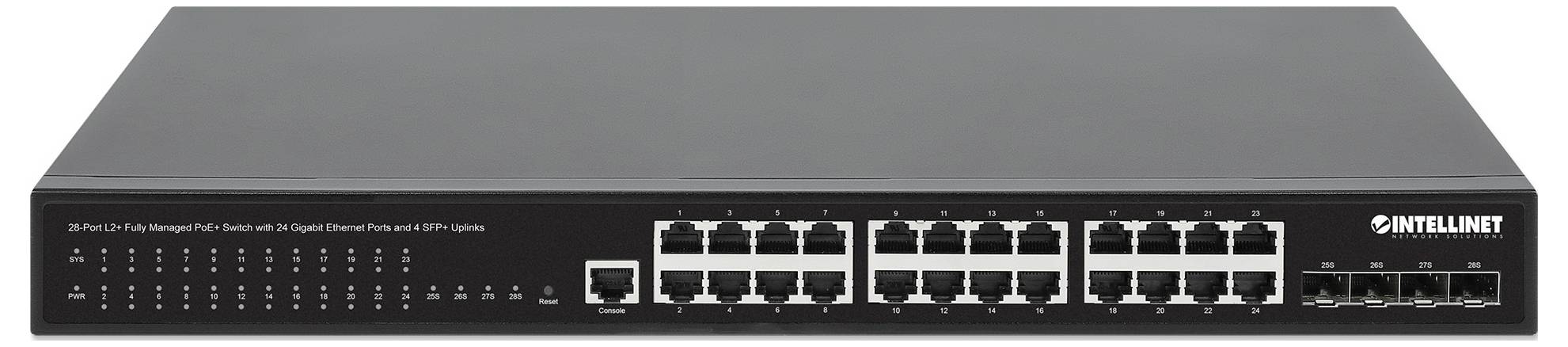

Intellinet 28-port L2+ fully managed PoE+ switch with 24 Gigabit Ethernet ports and 4 SFP+ Uplinks IEEE 802.3at/AF
- Power and data connection for up to 24 PoE network devices
- Four GBIC module slots (SFP/SFP+) for 10G uplink capability
- Self-healing network - the "Powered Device Monitor" feature (PDM), also known as PD Alive Check, monitors all connected PoE devices and restarts them when they are inactive
- Domotz-compatible for Cloud Management
- PoE power budget 370 Watt
Technical specifications
- Product type
19" switch box
- PoE
IEEE802.3at (30 W)
IEEE802.3af (15.4 W)
- LAN data transfer rate
10 / 100 / 1000 MBit/s
- Width
440 mm
- Height
44 mm
- Length
208 mm
- Weight
3.77
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3338794 Intellinet 561846 19" switch box 10 / 100 / 1000 MBit/s IEEE802.3at (30 W), IEEE802.3af (15.4 W)
Description
28-port Gigabit Ethernet Layer 2+ managed switch with four 10G uplinks - smart and secure edge connectivity, Ideal for networks in small and medium-sized companies
This 24 + 4 Layer 3 Lite Gigabit Switch contains 24 powerful 10/100/1000 Mbps Ethernet ports and four 10G SFP+ ports. The Web/SNMP management offers remote control for flexible network management via "in-band" SNMP management or a web browser. It can also be used as a trunked switch for a 40G connection to other switches.
Flexible network management
The Intellinet network solutions 28-port web-managed gigabit Ethernet switch is easy to operate and manage. The extensive feature list includes ACL management, QoS settings, port mirroring, integrated IP connection tools, logging, MAC filtering, RADIUS authentication, port aggregation, and detailed port rate configuration options.
10 Gigabit Ethernet (IEEE 802.3ae)
Equipped with four 10G SFP+ slots, this switch is the ideal solution for cost-conscious companies that are planning with 10G Ethernet. With 10G technology becoming increasingly popular in business, the need to upgrade more bandwidth is more urgent than ever - even in smaller networks. No matter whether you want to connect servers, NAS or NVRs with 10 Gbit/s or simply want to connect to another gigabit switch without having to use LACP-technologies - 10G offers the solution. If you are not ready for 10G, you can easily use standard 1G SFP modules until you upgrade.
Self-healing network with enhanced reliability and stability – Intellinet powered device monitor (PDM)
This Power over Ethernet switch is equipped with powered device monitoring, a "self-healing" PoE-function. This PoE watchdog performs a PD-Alive test for all connected PDs and automatically resets unresponsive devices, such as PoE cameras, by interrupting power supply and then restoring. The PDM function is particularly useful in applications where the connected devices are decisive for the network, as in industry and surveillance scenarios. Another advantage of PD Alive functionality is that calls to tech support and costly on-site visits by service technicians can often be avoided because the functional restart can often bring the non-responsive device back online).
This text is machine translated.
This 24 + 4 Layer 3 Lite Gigabit Switch contains 24 powerful 10/100/1000 Mbps Ethernet ports and four 10G SFP+ ports. The Web/SNMP management offers remote control for flexible network management via "in-band" SNMP management or a web browser. It can also be used as a trunked switch for a 40G connection to other switches.
Flexible network management
The Intellinet network solutions 28-port web-managed gigabit Ethernet switch is easy to operate and manage. The extensive feature list includes ACL management, QoS settings, port mirroring, integrated IP connection tools, logging, MAC filtering, RADIUS authentication, port aggregation, and detailed port rate configuration options.
10 Gigabit Ethernet (IEEE 802.3ae)
Equipped with four 10G SFP+ slots, this switch is the ideal solution for cost-conscious companies that are planning with 10G Ethernet. With 10G technology becoming increasingly popular in business, the need to upgrade more bandwidth is more urgent than ever - even in smaller networks. No matter whether you want to connect servers, NAS or NVRs with 10 Gbit/s or simply want to connect to another gigabit switch without having to use LACP-technologies - 10G offers the solution. If you are not ready for 10G, you can easily use standard 1G SFP modules until you upgrade.
Self-healing network with enhanced reliability and stability – Intellinet powered device monitor (PDM)
This Power over Ethernet switch is equipped with powered device monitoring, a "self-healing" PoE-function. This PoE watchdog performs a PD-Alive test for all connected PDs and automatically resets unresponsive devices, such as PoE cameras, by interrupting power supply and then restoring. The PDM function is particularly useful in applications where the connected devices are decisive for the network, as in industry and surveillance scenarios. Another advantage of PD Alive functionality is that calls to tech support and costly on-site visits by service technicians can often be avoided because the functional restart can often bring the non-responsive device back online).
This text is machine translated.
Features
- Standards
- IEEE 802.1p (traffic prioritization)
- IEEE 802.1q (VLAN tagging)
- IEEE 802.3ad (Link Aggregation)
- IEEE 802.3i 10Base-T Ethernet
- IEEE 802.3ab (twisted pair gigabit Ethernet)
- IEEE 802.3ad (Link Aggregation Control Protocol LACP)
- IEEE 802.3ae (10 gigabit Ethernet over fiber)
- IEEE 802.3az (energy-efficient Ethernet EEE)
- IEEE 802.3af (Power over Ethernet 802.3at type 1)
- IEEE 802.3at (Power over Ethernet 802.3at type 2)
- IEEE 802.3u (100Base-TX Fast Ethernet).
- IEEE 802.3x (flow control, for full duplex mode)
- General:
- Ports
- - 24 x 10/100/1000 Mbps RJ45 PoE-enabled ports
- - 4 x 10G SFP+ slot
- - 1 x console port
- Supported media
- - 10Base-T Cat5e UTP/STP RJ45, 8-pin
- - 100Base-TX Cat5e UTP/STP RJ45, 8-pin
- - 1000Base-T Cat5e UTP/STP RJ45, 8-pin
- MAC address table: 16,000
- Intermediate memory: 12 Mbits
- Forwarding-rate: 95.23 Mpps
- MTBF: 90,000 hours
- Switch architecture: Store and forward
- Configuration options:
- - Port connection speed: 10 Mbps, 100 Mbps, 1000 Mbps, or auto-negotiation
- - PoE on/off per port
- - PoE max. Output power per port
- - PoE mode per port
- PDM Function (Powered Device Monitor), Watch Guard
- Switch architecture: Store and forward
- PDM Function (Powered Device Monitor), Watch Guard
- Flow control per port on/off
- VLAN
- Rate Limiting (Ingress Rate and Egress Rate)
- Port mirroring, 1 to 1, or 1 to multiple
- Port Aggregation/LACP: 16 groups
- Broadcast Storm configuration with broadcast rate, multicast rate, and flowed unicast rate
- IGMP snooping
- Access management filtering: SNMP, HTTP, HTTPS, SSH, TELNET quality of service (QoS): CoS or DSCP
- Link Layer Discovery Protocol (LLDP)
- Integrated ICMP Ping Client pings requests to other network nodes
- SNMPv1/v2c/v3 (Simple Network Management Protocol)
- RMON (1, 2, 3 and 9 groups)
- DHCP: Client/option82/snooping
- LAN settings (IP address, gateway, etc.)
- Energy-efficient Ethernet (EEE)
- SSHv2
- FCC, CE, RoHS, UKCA, NDAA
- LEDs
- PoE
- Power-
- Link/Activity
- Systems
- Keys
- Reset
- Pin occupancy RJ45 output ports
- - Pin 1: DC (+)
- - Pin 2: DC (+)
- - Pin 3: DC (-)
- - Pin 6: DC (-)
- Current
- Input 100.0 – 240.0 VAC, 50 – 60 Hz, internal power supply
- Output power per port 30.0 W
- PoE Power Budget 370.0 W (max.)
- Power consumption (max.) 425.0 W
- Physical details
- Metal housing
- Dimensions (L x W x H) 208 x 440 x 44 mm
- Net weight: 3 kg
- Gross weight: 3.85 kg
- Ambient conditions
- Operating ambient temperature 0 - 45°C.
- Ambient temperature during storage -40 - 70°C.
- Operating humidity: 10 - 90% RH, non-condensing
- Humidity during storage 5 - 90% RH, non-condensing
Scope of delivery
- 28-Port L2+ Fully Managed PoE+ Switch with 24 Gigabit Ethernet ports and 4 SFP+ Uplinks
- Power cable;
- User manual.
- 19" mounting bracket
