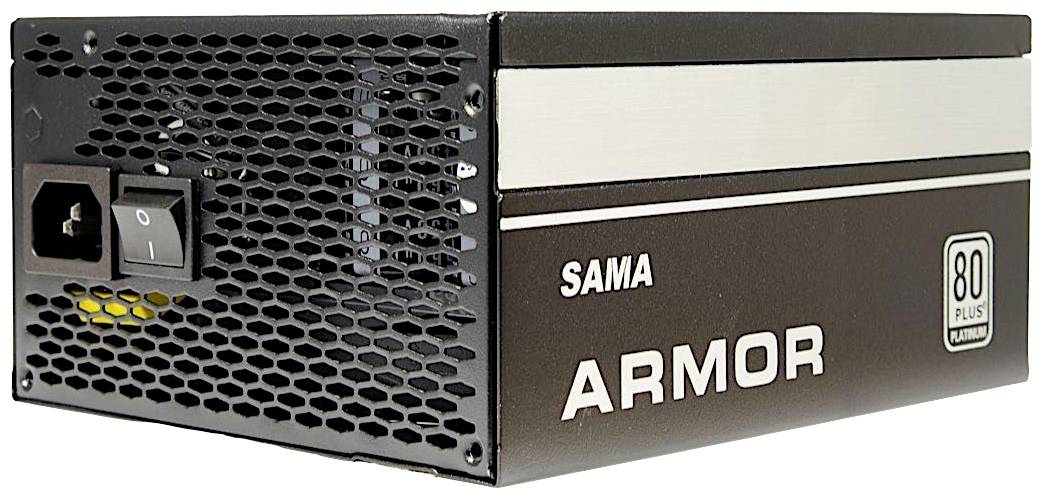

Inter-Tech SAMA-FTX-1200-A Armor PC power supply unit 1200 W ATX 80 PLUS Platinum
Product type
PC power supply unit
PSU output power
1200 W
Modular
Yes
Certification
80 PLUS Platinum
Form factor
ATX
EAN:
Part number:
Item no:
Highlights & Details
Inter-Tech SAMA FTX-1200-A Armor - Power supply (internal)
- Power supply unit output 1200 W
- PCI-Express (6+2-Pin) 4x
- Cable management Yes
- 80 PLUS Platinum
Technical specifications
- Product type
PC power supply unit
- PSU output power
1200 W
- Modular
Yes
- Certification
80 PLUS Platinum
- Form factor
ATX
- Factory colour
Silver
- Dim
(W x H x D) 150 x 86 x 180 mm
- Depth
180 mm
- Height
86 mm
- Width
150 mm
- Weight
2.01 kg
- -12V / DC
0.2 A
- +12 V/DC (1)
98 A
- 5 V DC
20 A
- +5V / DC SB
3 A
- 24-pin
1
- 20+4-pin.
2
- 4-pin Molex
3
- 6-pin PCIe
4
- 5-pin SATA
9
- Output rating > 700 W
1200 W
- Power rating
751 W -
- 3.3V DC
20 A
- Operating voltage
110 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898484 Inter-Tech SAMA-FTX-1200-A Armor PC power supply unit 1200 W ATX 80 PLUS Platinum
Description
The 1200W powerful power supply by SAMA is 80PLUS Platinum certified and is equipped with the latest technology! The DC/DC-technology thereby provides for highest efficiency and stable voltages. With the +12V single-rail technology full 98A is also available for power-hungry graphics cards. 105°C certified A+ Premium capacitors from CHEMI-CON Japan provide maximum reliability for well over 100,000 operating hours (MTBF) at over 92% efficiency.

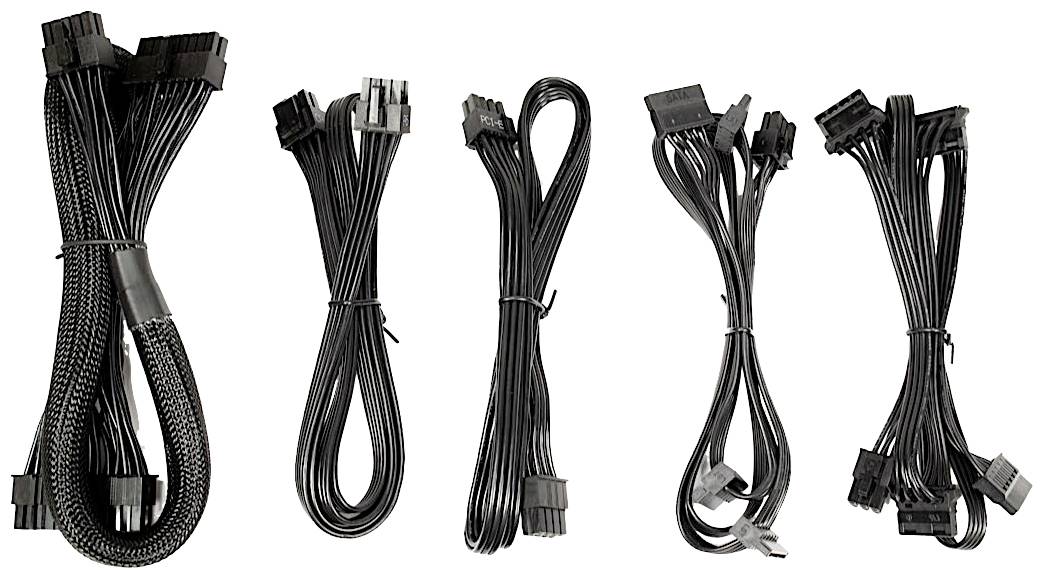

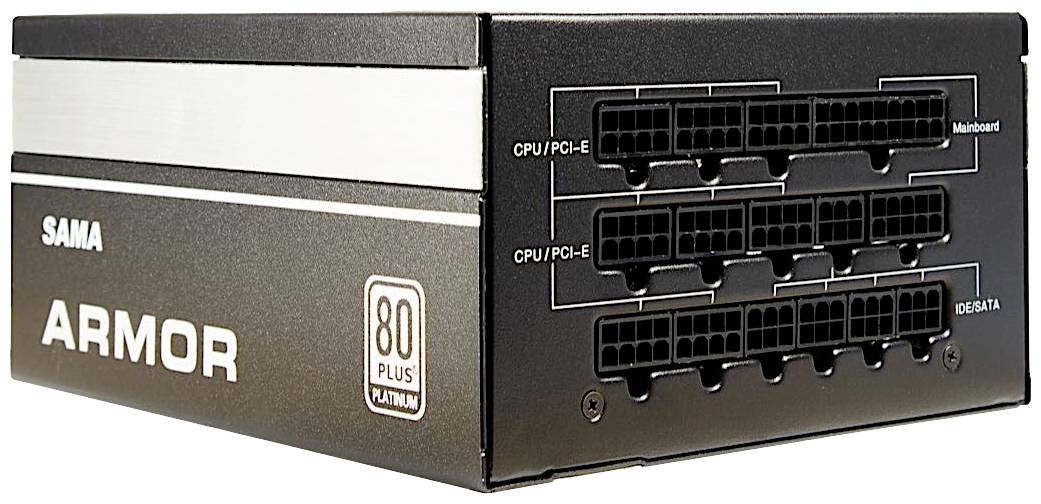

The fully modular cable design gives you free choice for connections. Thus, in addition to two 4+4-pin connections for dual-CPU systems, the SAMA FTX-1200-A Armor becomes available, three additional S-ATA, three Molex and four PCIe 6+2-pin connections, whose connection cable are all designed in flat-cable design, WAS contributes to a clean cable management in the housing.

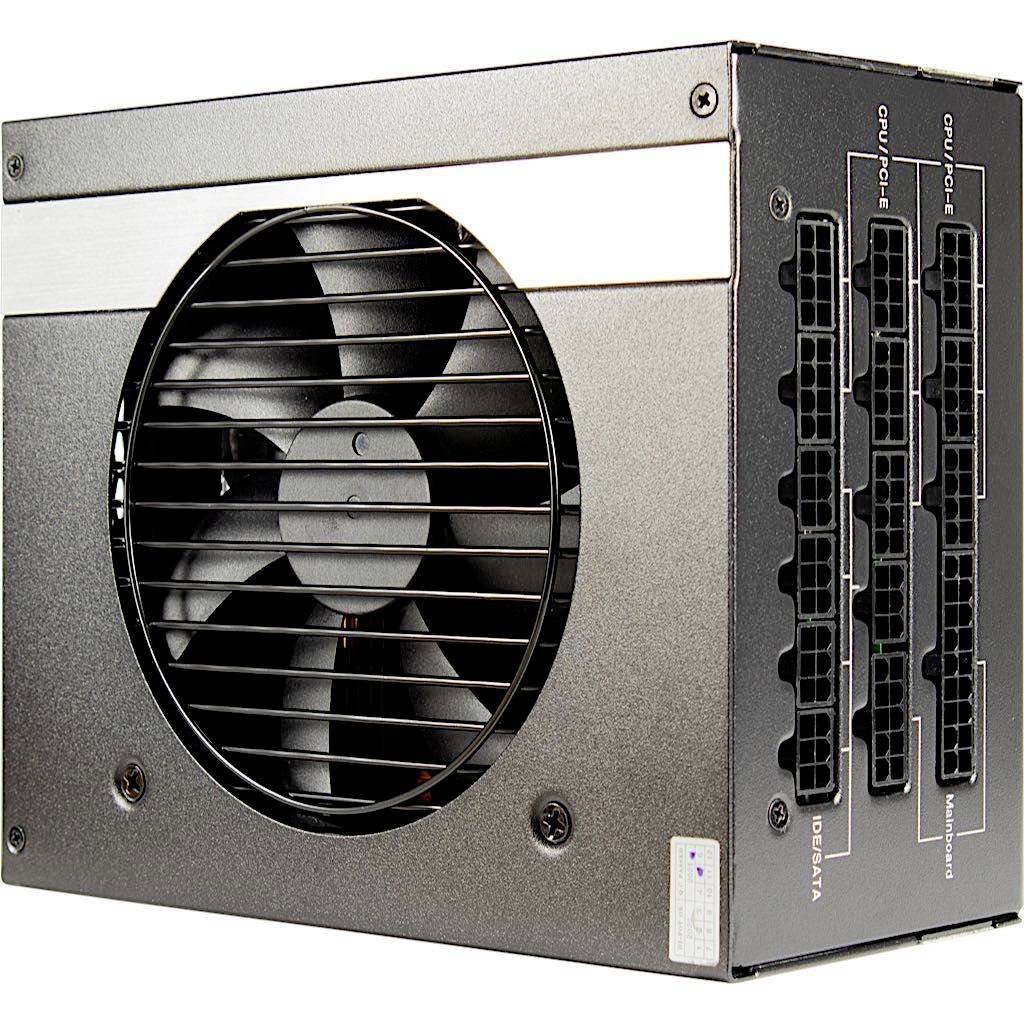

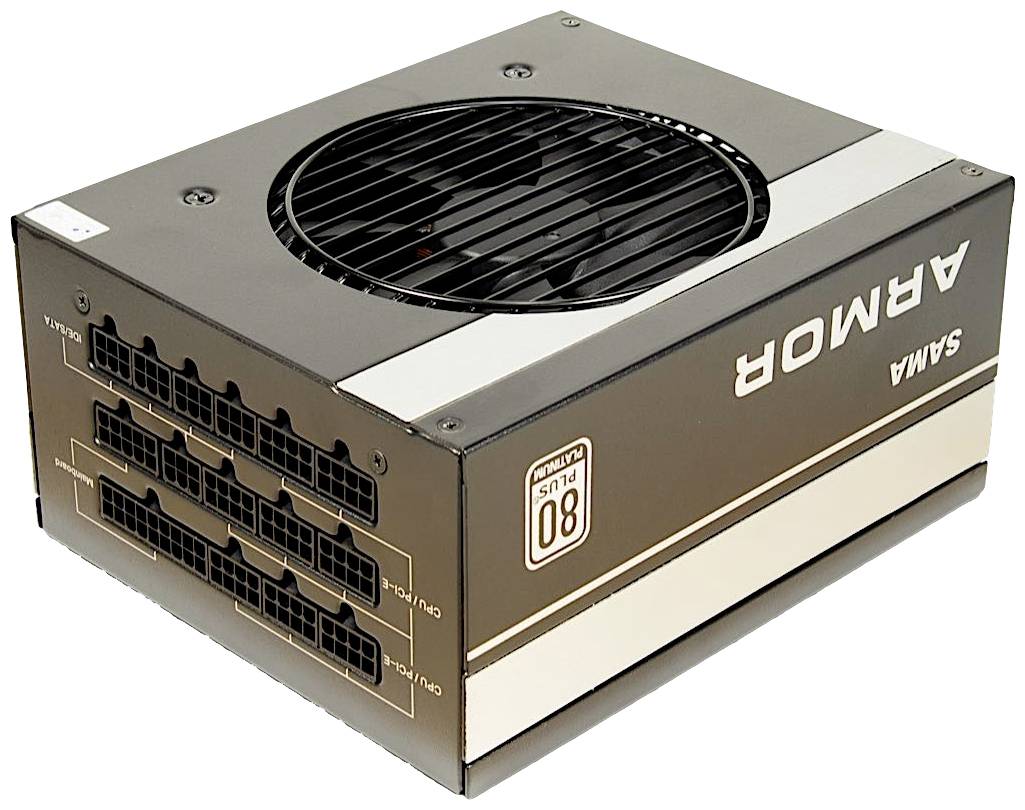

The high-quality power supply housing is equipped with aluminum applications and features a silent, temperature controlled 120mm fan which reliably cools the interior of the power supply.
This text is machine translated.
The fully modular cable design gives you free choice for connections. Thus, in addition to two 4+4-pin connections for dual-CPU systems, the SAMA FTX-1200-A Armor becomes available, three additional S-ATA, three Molex and four PCIe 6+2-pin connections, whose connection cable are all designed in flat-cable design, WAS contributes to a clean cable management in the housing.
The high-quality power supply housing is equipped with aluminum applications and features a silent, temperature controlled 120mm fan which reliably cools the interior of the power supply.
This text is machine translated.
