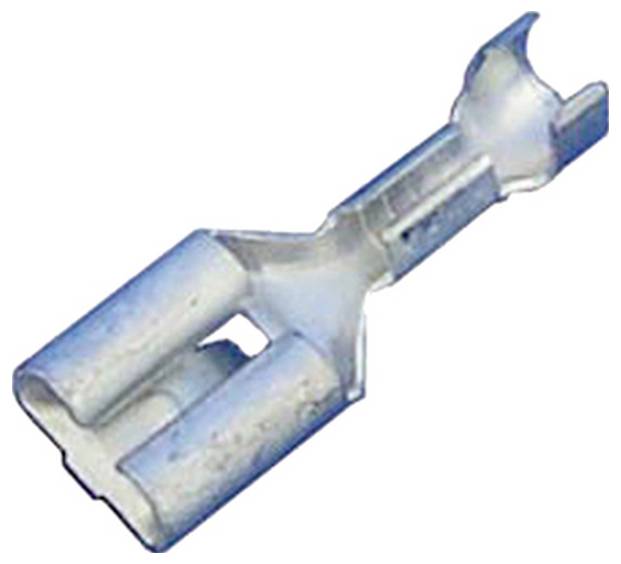

Intercable 180285 Blade receptacle tin-plated, + snap-in nibs Connector width: 6.3 mm Connector thickness: 0.8 mm Not in
EAN:
Part number:
Item no:
Product type
Blade receptacle
Connector width
6.3 mm
Insulation type
Not insulated
Content
1 pc(s)
max. cross section
6 mm²
Highlights & Details
- Yellow
- 6.3 mm x 0.8 mm
- 4 mm² - 6 mm²
Technical specifications
- Product type
Blade receptacle
- Connector width
6.3 mm
- Factory colour
Yellow
- Connector thickness
0.8 mm
- Insulation type
Not insulated
- Contact material
Brass
- Content
1 pc(s)
- max. cross section
6 mm²
- Min. cross section
4 mm²
- AWG max.
10
- AWG (min.)
12
- Manufacturer part #
180285
- Insulation material
Polycarbonate
- Cross-section range
4 - 6 mm²
- Size
6.3 x 0.8 mm
- Features
tin-plated
+ snap-in nibs
- Type
ICC668FHR
