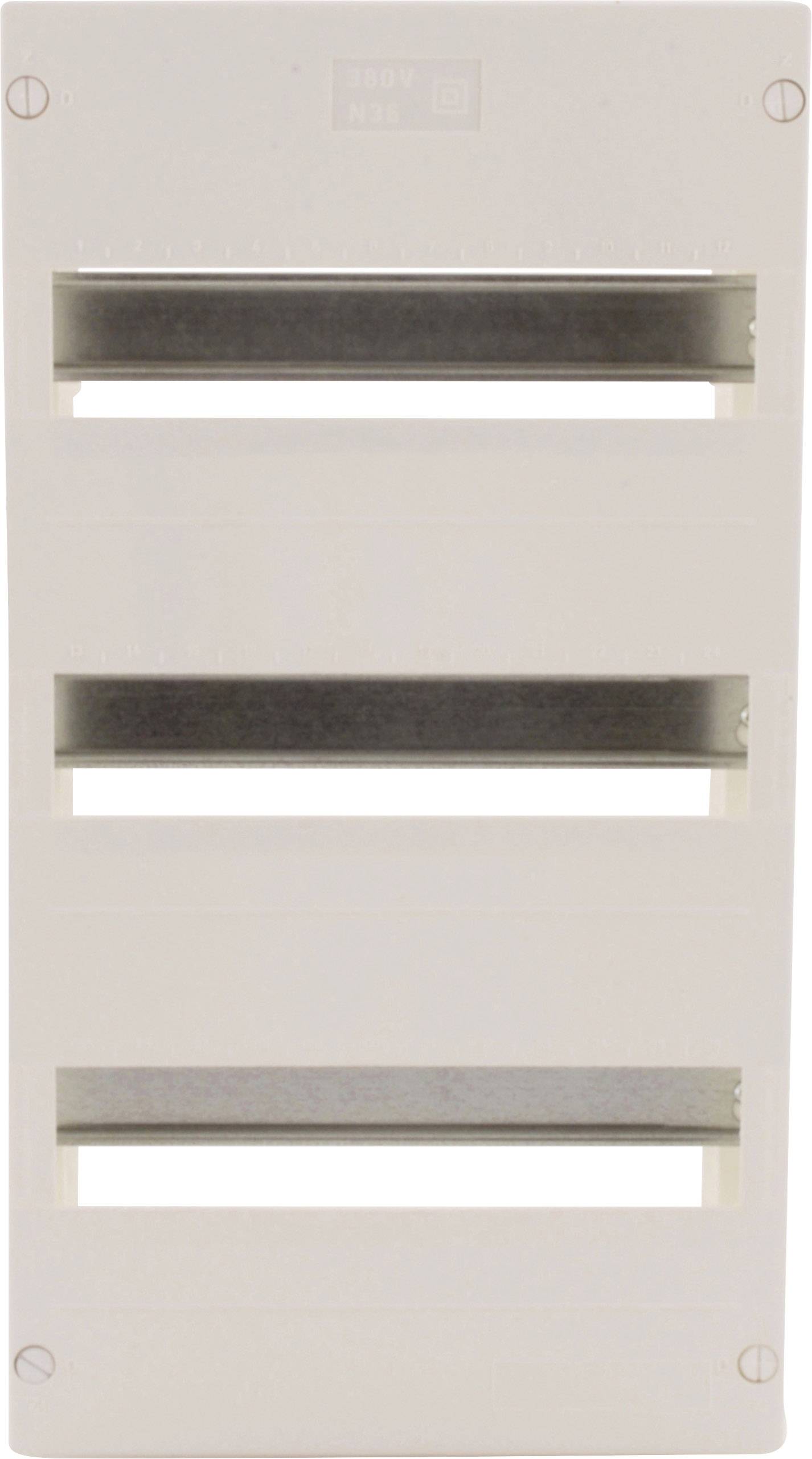

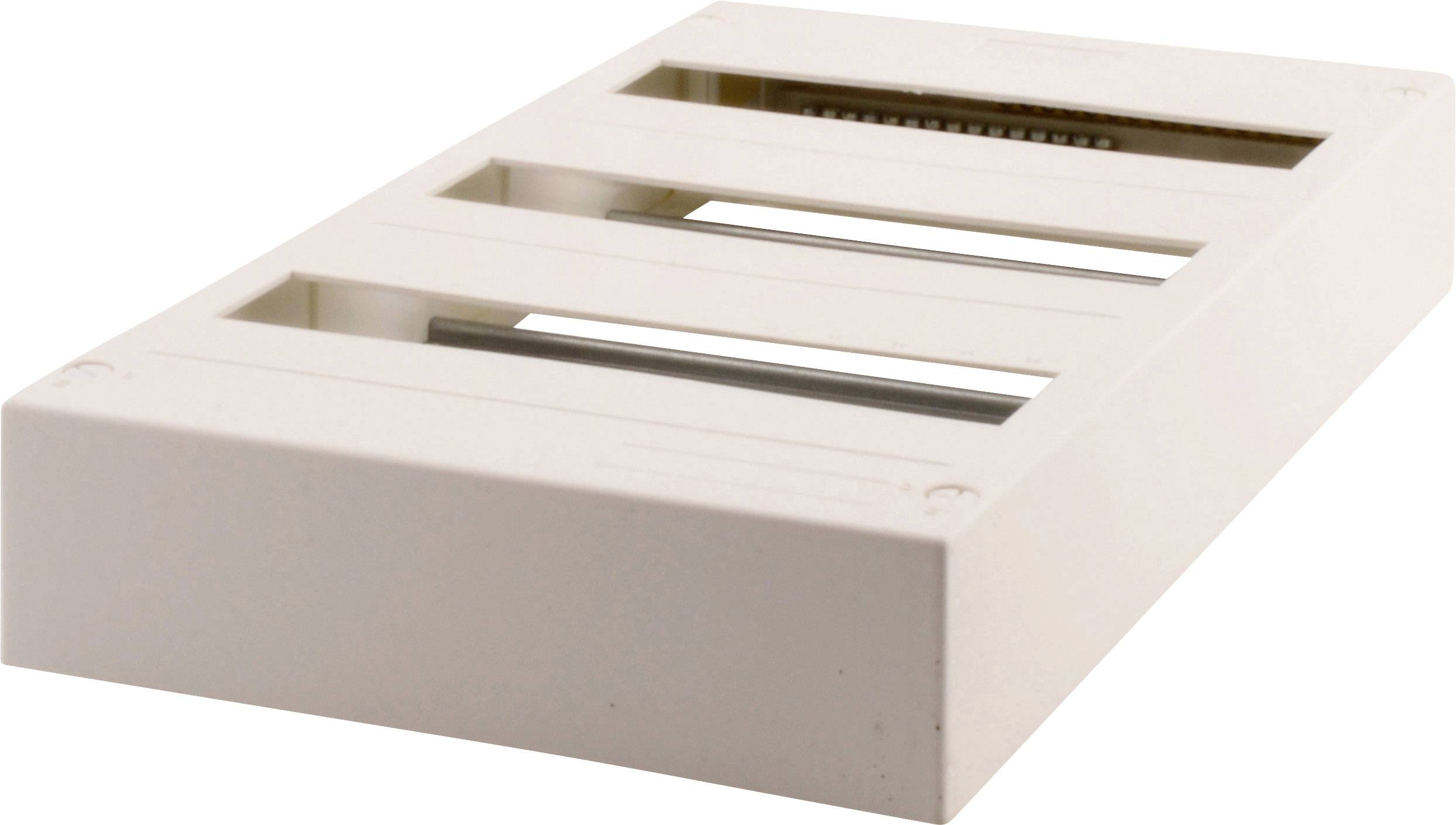

Intratec MKAEAGH36-01 MKAEAGH36-01 Switchboard cabinet Surface-mount
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Surface-mount
Width
250 mm
Height
463 mm
Depth
70 mm
Highlights & Details
INTRATEC MKAEAGH36-01 fuse box surface mounted
- Contains 1 pieces
Technical specifications
- Material lower part: Stirene
- Colour: RAL 9003.
- Temperature range: -25°C – +60°C
- Shock resistance: IK07
- IP30 protection
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Mounting type
Surface-mount
- Factory colour
Signal white
- Width
250 mm
- Height
463 mm
- Dim
(W x H x D) 250 x 463 x 70 mm
- Depth
70 mm
- Content
1 pc(s)
IP30
- Material
Stryrene
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2307350 Intratec MKAEAGH36-01 MKAEAGH36-01 Switchboard cabinet Surface-mount
Description
The surface-mounted small distributors are used for the distribution of electrical energy. Depending on the size and electrical equipment of a building, the size and number of distribution boards must also be adjusted. We provide you with the most varied of applications, the suitable construction variants. Our fuse boxes are made of high-quality, impact-resistant plastic and are delivered without door. The housing has a compact shape and still offers sufficient space for components and switches. Secure wiring is also guaranteed. The control cabinet is equipped with premolded cable entries and thus enables quick and easy cabling. The surface-mounted fuse box with an IP30 degree of protection is particularly suitable for indoor use for power distribution in all living areas. Installation instructions and mounting material for quick installation are included. Some of our small distributors also have an insulated PE conductor terminal. All materials are tested according to the applicable standards IEC 60670.
THE
DISBOX-DA series fuse boxes have a IP30 degree of protection AND are made of halogen-free stirene FOR EASE OF INSTALLATION AND OPEN ACCESS. THE DA series is characterized by an open design, which enables the user to access the fixtures at any time. While additional doors and optional safety locks are used in other series, access to the installed components can be made here at any time. A total of 6 sizes from 1 to 42 modules are available.
THE SCOPE OF DELIVERY AND ACCESSORIES

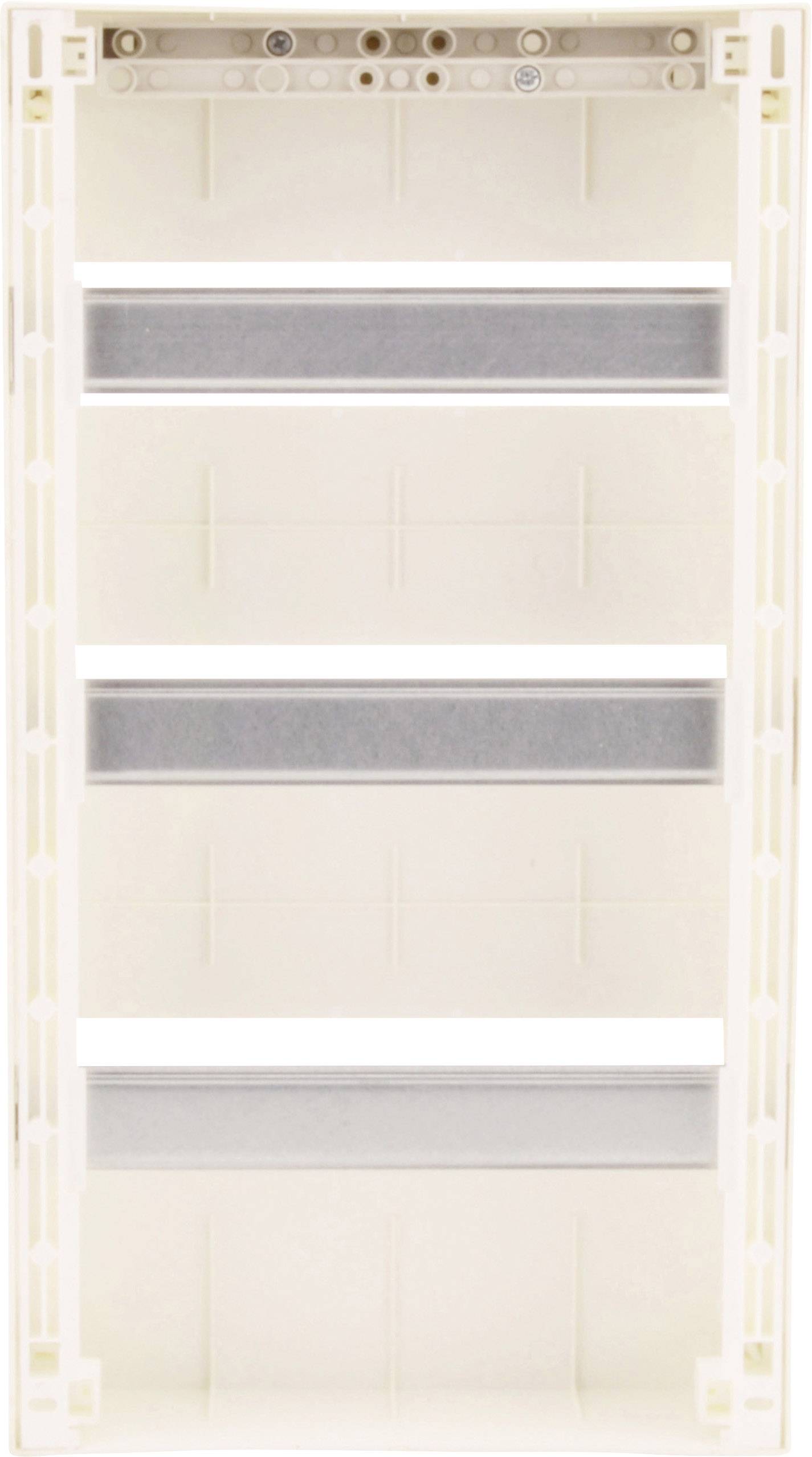

of delivery of the DISBOX-DA series include a comprehensive operating manual and the PE&N terminals as well as all the necessary fixing screws, which enable a quick installation. We also install all required mounting rails type TS35 in the lower part of the housing. The number and length of the mounting rails depends on the defined number of module slots per housing. In addition to the insulated screw terminals used as standard, double-row screw terminals or screwless terminal strips can also be supplied. All materials are UV-stable and halogen-free and tested according to applicable standards. If individual module slots are not required, corresponding covers are also included in the delivery.
This text is machine translated.
THE
DISBOX-DA series fuse boxes have a IP30 degree of protection AND are made of halogen-free stirene FOR EASE OF INSTALLATION AND OPEN ACCESS. THE DA series is characterized by an open design, which enables the user to access the fixtures at any time. While additional doors and optional safety locks are used in other series, access to the installed components can be made here at any time. A total of 6 sizes from 1 to 42 modules are available.
THE SCOPE OF DELIVERY AND ACCESSORIES
of delivery of the DISBOX-DA series include a comprehensive operating manual and the PE&N terminals as well as all the necessary fixing screws, which enable a quick installation. We also install all required mounting rails type TS35 in the lower part of the housing. The number and length of the mounting rails depends on the defined number of module slots per housing. In addition to the insulated screw terminals used as standard, double-row screw terminals or screwless terminal strips can also be supplied. All materials are UV-stable and halogen-free and tested according to applicable standards. If individual module slots are not required, corresponding covers are also included in the delivery.
This text is machine translated.
