Name: Isabellenhütte PBH-2R20-F1-1.0 PBH-2R20-F1-1.0 Metal film resistor 2.2 Ω THT 10 W 1 % 1 pc(s)
Brand: Isabellenhütte
SKU: 3208034
Availability: BackOrder

A black electronic resistor with two metal terminals on the underside, marked with 'ISABELLENHUETTE'.

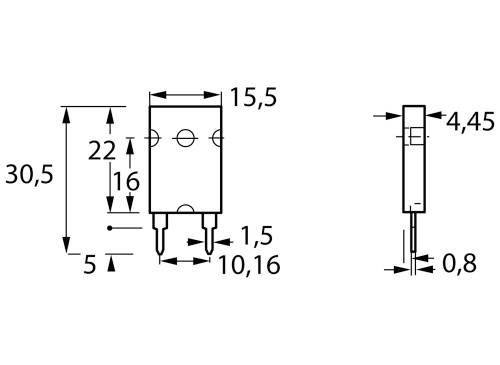

Diagram of an electronic component with dimensions: Height 30.5 mm, Width 15.5 mm, Thickness 4.45 mm, Pin spacing 10.16 mm.

1/2

Product type

Metal film resistor

Resistance

2.2 Ω

Power rating

10 W

Content

1 pc(s)

Type

THT

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 3

Multiple: 3

Total (€ 39.99 / piece)

€ 119.97

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Metal film resistor, 2.2 Ω, 3 W, ±1 %

Our service for you

Technical specifications

Design: Radial
Design: Precision-metal-layer resistance
Width 4.45 mm
Height: 22.5 mm
Length: 15.5 mm.
Weight: 0.00464 kg
Output: 3 W
max. temperature: 125 °C
Insulation voltage 500 V
min Temperature -55 °C.
Ohm resistance 2.2 Ω
Temperature coefficient 50 ppm/K
Tolerance: ± 1 %
Mounting THT
Nominal load 10 W

Product type: Metal film resistor

Type: THT

Resistance: 2.2 Ω

Power rating: 10 W

Tolerance ±: 1 %

Temperature coefficient: 50 ppm/K

Length: 15.5 mm

Width: 4.45 mm

Height: 22.5 mm

(Ø): 3.2 mm

Content: 1 pc(s)

Dim: (Ø x H) 3.2 mm x 22.5 mm

RoHS-compliant: Yes
