Name: Isabellenhütte PBV-R033-F1-1.0 PBV-R033-F1-1.0 Metal film resistor 33 mΩ THT 10 W 1 % 1 pc(s)
Brand: Isabellenhütte
SKU: 3207988
Availability: BackOrder

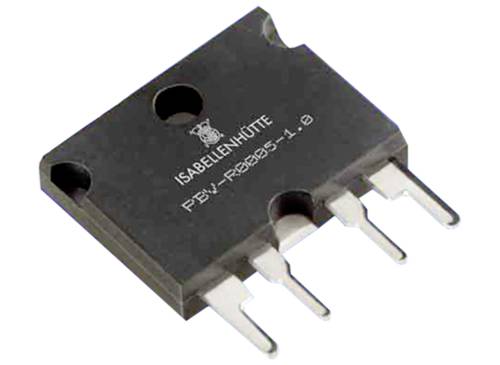

An electronic resistor with four terminals, black and flat, marked with 'ISABELLEN-HÜTTE PBV-R0005S-1.0'.

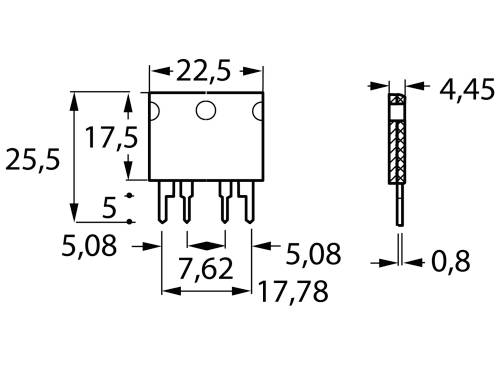

Drawing of an electronic connector with dimensions: height 25.5 mm, width 22.5 mm, depth 17.5 mm. Pin spacing 5.08 mm.

1/2

Product type

Metal film resistor

Resistance

33 mΩ

Power rating

10 W

Content

1 pc(s)

Type

THT

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 3

Multiple: 3

Total (€ 40.99 / piece)

€ 122.97

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Metal film resistor, 33 mΩ, 3 W, ±1 %

Our service for you

Technical specifications

Design: Radial
Design: Precision-metal-layer resistance
Width 4.45 mm
Height: 17.5 mm
Length: 22.5 mm.
Weight: 0.00579 kg
Output: 3 W
max. temperature: 125 °C
Insulation voltage 500 V
min Temperature -55 °C.
Ohm resistance 33 mΩ
Temperature coefficient 30 ppm/K
Tolerance: ± 1 %
Mounting THT
Nominal load 10 W

Product type: Metal film resistor

Type: THT

Resistance: 33 mΩ

Power rating: 10 W

Tolerance ±: 1 %

Temperature coefficient: 30 ppm/K

Length: 22.5 mm

Width: 4.45 mm

Height: 17.5 mm

Content: 1 pc(s)

Dim: (L x W x H) 22.5 x 4.45 x 17.5 mm

RoHS-compliant: Yes

Type: PBV-R033-F1-1.0

Variants(All information include VAT, plus shipping costs)

Resistance

Tolerance ±

Isabellenhütte PBH-100R-F1-1.0 PBH-100R-F1-1.0 Metal film resistor 100 Ω THT 10 W 1 % 1 pc(s)

Item no:3207982

Dispatches on Wed 18 Nov

Conrad Electronic

100 Ω

1 %

Piece(s)

Minimum order quantity: 5

Multiple: 5

€ 33.99^*

Isabellenhütte PBH-10R0-F1-1.0 PBH-10R0-F1-1.0 Metal film resistor 10 Ω THT 10 W 1 % 1 pc(s)

Item no:3208036

Dispatches on Wed 18 Nov

Conrad Electronic

10 Ω

1 %

Piece(s)

Minimum order quantity: 3

Multiple: 3

€ 39.99^*

Isabellenhütte PBH-12R0-F1-1.0 PBH-12R0-F1-1.0 Metal film resistor 12 Ω THT 10 W 1 % 1 pc(s) Tube

Item no:3207998

Dispatches on Mon 9 Nov

Conrad Electronic

12 Ω

1 %

Piece(s)

Minimum order quantity: 3

Multiple: 3

€ 38.99^*

Isabellenhütte PBH-18R0-F1-1.0 PBH-18R0-F1-1.0 Metal film resistor 18 Ω THT 10 W 1 % 1 pc(s)

Item no:3208037

Dispatches on Mon 9 Nov

Conrad Electronic

18 Ω

1 %

Piece(s)

Minimum order quantity: 3

Multiple: 3

€ 39.99^*

Isabellenhütte PBH-1R00-F1-1.0 PBH-1R00-F1-1.0 Metal film resistor 1 Ω THT 10 W 1 % 1 pc(s) Tube

Item no:3207994

Fast track dispatch on Thu 29 Oct

2 Piece(s)Conrad Electronic

1 Ω

1 %

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 47.99^*

Isabellenhütte PBH-1R20-F1-1.0 PBH-1R20-F1-1.0 Metal film resistor 1.2 Ω THT 10 W 1 % 1 pc(s) Tube

Item no:3208001

Dispatches on Mon 9 Nov

Conrad Electronic

1.2 Ω

1 %

Piece(s)

Minimum order quantity: 3

Multiple: 3

€ 38.99^*

Isabellenhütte PBH-1R80-F1-1.0 PBH-1R80-F1-1.0 Metal film resistor 1.8 Ω THT 10 W 1 % 1 pc(s)

Item no:3208032

Dispatches on Mon 9 Nov

Conrad Electronic

1.8 Ω

1 %

Piece(s)

Minimum order quantity: 3

Multiple: 3

€ 39.99^*

Isabellenhütte PBH-2R20-F1-1.0 PBH-2R20-F1-1.0 Metal film resistor 2.2 Ω THT 10 W 1 % 1 pc(s)

Item no:3208034

Dispatches on Mon 9 Nov

Conrad Electronic

2.2 Ω

1 %

Piece(s)

Minimum order quantity: 3

Multiple: 3

€ 39.99^*

Isabellenhütte PBH-3R90-F1-1.0 PBH-3R90-F1-1.0 Metal film resistor 3.9 Ω THT 10 W 1 % 1 pc(s)

Item no:3207999

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

3.9 Ω

1 %

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 39.99^*

Isabellenhütte PBH-47R0-F1-1.0 PBH-47R0-F1-1.0 Metal film resistor 47 Ω THT 10 W 1 % 1 pc(s) Tube

Item no:3208000

Dispatches on Wed 18 Nov

Conrad Electronic

47 Ω

1 %

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

Documents & Downloads

Datasheet

Datasheet 3207988 Isabellenhütte PBV-R033-F1-1.0 PBV-R033-F1-1.0 Metal film resistor 33 mΩ THT 10 W 1 % 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3207988 Isabellenhütte PBV-R033-F1-1.0 PBV-R033-F1-1.0 Metal film resistor 33 mΩ THT 10 W 1 % 1 pc(s)

Description

Precision Metal Film Resistors 3,0/10 Watt Tolerance 1.0 % Series ISA-PLAN Type Isabellenhütte PBV..F1. With four-wire connection. Specially designed for use in the low-ohm range, in order to ensure minimum temperature coefficients and independence of the resistance value from the soldering quality. The design is largely compatible with modern power transistors. A central mounting hole is used to mount the resistor on a heat sink to optimize heat transfer over the large base plate. Features * 4-terminal connection * Excellent long-term stability * RoHS-compliant applications * Power modules * Frequency converters * Switchable power supplies
