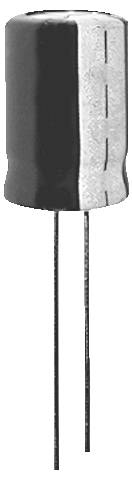

Jamicon Electrolytic capacitor Radial lead 5.0 mm 220 µF 100 V 20 % 1 pc(s) Bulk
Packaging type
Bulk
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
220 µF
Nominal voltage
100 V
Datasheet (PDF)
Part number:
Item no:
Highlights & Details
Jamicon electrolytic capacitor 220UF 100V 12.5x26mm RM5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series: SK
- Design_1: Radial
- Applications: For general purposes, decoupling, bypass and filter circuits in consumer electronics
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: Aluminium cups in vinyl cover
- Wire diameter 0.6 mm.
- Pitch_1:5.0 mm
- Capacity 220 µF
- Capacity_1: 220
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.08
- Leakage current 4 µA
- Ripple current 790 mA
- Nominal voltage DC 100 V
- Surge voltage 125 V
- Lifetime_1: 1,000 h
- Packaging type
Bulk
- Product type
Electrolytic capacitor
- Type
Radial lead
- CS
5.0 mm
- Capacity (elec.)
220 µF
- Nominal voltage
100 V
- Tolerance ±
20 %
- Height
26.0 mm
- Content
1 pc(s)
- Material
Aluminium
- RoHS-compliant
Yes
- Max. temperature
85 °C
- Type
JSK227M100S1G5K26L
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3462931 Jamicon Electrolytic capacitor Radial lead 5.0 mm 220 µF 100 V 20 % 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3462931 Jamicon Electrolytic capacitor Radial lead 5.0 mm 220 µF 100 V 20 % 1 pc(s) Bulk
Description
Miniature electrolytic capacitors radial 100V 20% 85°C
